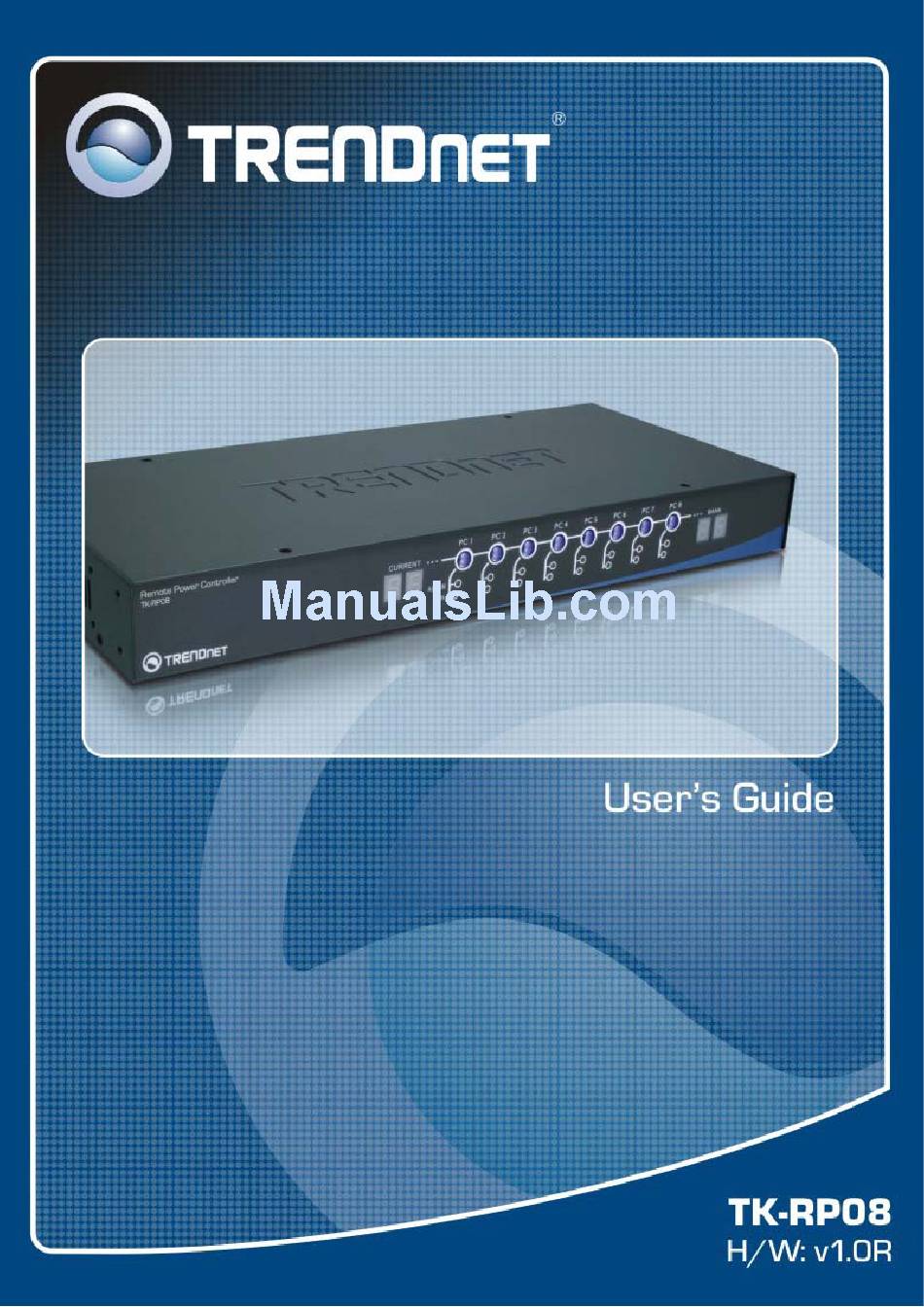

TRENDnet TK-RP08 User Manual
  1. Manuals
  2. Brands
  3. TRENDnet Manuals
  4. Controller
  5. TK-RP08
  6. User manual
TRENDnet TK-RP08 User Manual

TRENDnet TK-RP08 User Manual

Hide thumbs Also See for TK-RP08:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK-RP08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TK-RP08

Summary of Contents for TRENDnet TK-RP08

  • Page 2: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Table of Contents Table of Contents ..........................iii Quick Installation ..........................1 Flash Upgrade Operation Guide (Using Windows HyperTerminal) ..........7 Serial Command Set ........................... 10...

  • Page 4: Quick Installation

    (with 2” time-delay for activation/deactivation To control your AC-powered devices, you only need to tap upon button release) them to any of TK-RP08’s 8 power output outlets and then ▪ Internal battery to retain unit configuration and port connect the TK-RP08 to a host PC installed with the Power status/timer settings.
  • Page 5 Step 5-3 Select Setting/Configuration to configure the connection settings and the timer settings. (refer to the following sections). You might need to use extra adapter cords between TK-RP08 and Easy Front-panel Operation your devices, especially when the devices are not of the plug...
  • Page 6 Step 1. Run the TK-RP08 Management software by double- should see a virtual front-panel identical to the physical front- clicking its desktop icon or access Start /programs panel. If you are cascading multiple units of TK-RP08 (using the RJ-45 daisy-chain interfaces connected by a UTP cable), /ioPower/ioPower Management.
  • Page 7 <Auto-sync system time with host time on start>: Check this unit is loaded with the latest firmware, you should have no need to option if you want to synchronize TK-RP08 system with PC reload/upgrade your firmware unless (1) there’s a new firmware system time every time when you start ioPower Management upgrade ready (2) your firmware is corrupted and need reloading.
  • Page 8 At … to specify power on/off at preset time Every day … to specify daily power on/off at preset time TK-RP08 also allows you to perform global Power ON/OFF Every week …to specify weekly power on/off at preset day & time...

  • Page 9: System Requirements

    Dimensions (L x W x H) device might be activated to physically break off the internal circuit for safety and stop the function of TK-RP08. To restart Troubleshooting the unit, just press the Power Reset button on the back panel.
  • Page 10 Flash Upgrade Operation Guide (Using Windows HyperTerminal) Important Note: Besides using Windows HyperTerminal for TK-RP08 flash upgrade, you can also use the Tools/Upgrade option on the IP Management Software Menu. Please refer to the Quick Installation section on this User Guide.
  • Page 11 *.x (with a file extension name as .x). In number….. this case, we have our flash upgrade file as TK-RP08 3.0.1_040907.x (it could be any other file name with an .x extension!). Note that since it has an extension name other than .txt, we have to select the “All file...

  • Page 12: Troubleshooting

    , shown on the screen, it indicates that the flash process had failed. If that is the case, please power off the TK-RP08 Unit and then power it on restart the whole flash procedure again. You also press any button on front panel about 3 seconds when you power on the TK-RP08 Unit.
  • Page 13 IP101 package) I. Connect TK-RP08 to TK-IP101 Before you connect the TK-RP08 to the TK-IP101, you might need to install them first into their own proper placements within a rack, that is , if you are going to use them within a rack. After you have...
  • Page 14 Login option, and a Login Dialog field will appear for you to enter your login script. In this case, you don’t have to enter any script, since TK-RP08 e.g. If you want to turn off port 3 on bank 1. Then you have does not need any.
  • Page 15 Viewer menu. The command specified here will be sent automatically by TK-IP101 to the TK-RP08. After you have made all modifications, click Store Settings to save your settings and then hit Apply Settings/Restart Servers to validate these new settings.
  • Page 16 Serial Command Set Before you use the serial command … (1) To use the serial commands for TK-RP08 control, you have to establish a HyperTerminal connection between and the host PC, using a RS-232 cable for connection. Use TK-RP08 the following parameters for HyperTerminal connection:...
  • Page 17 ON – Power ON [Description]Power on one/all AC outlet port(s) immediately [Usage] ON [bank_number] [port_number] [Examples] ON 1 4 – Power on port 4 on bank 1 immediately ON 1 0 – Power on all ports on bank 1 immediately ON 0 0 –...
  • Page 18 ED – Timer Activate everyday at a specific time point [Description]Set the timer to turn on/off a specific port every day at specific time point [Usage] ED [bank_number] [port_number] [ON | OF] [Time_point] [Examples] ED 1 4 ON 02:12:20 – Set timer to power on port 4 on bank 1 exactly every day at 02:12:20.
  • Page 19 ST – Status [Description]Show the system status of a specific bank, such as current loads, on/off status and timer settings [Usage] ST [bank_number] [Examples] ST 1 – Show the system status of bank 1 ST 16 – Show the system status of bank 16 ST 0 –...
