Summary of Contents for TRENDnet TK-RP08

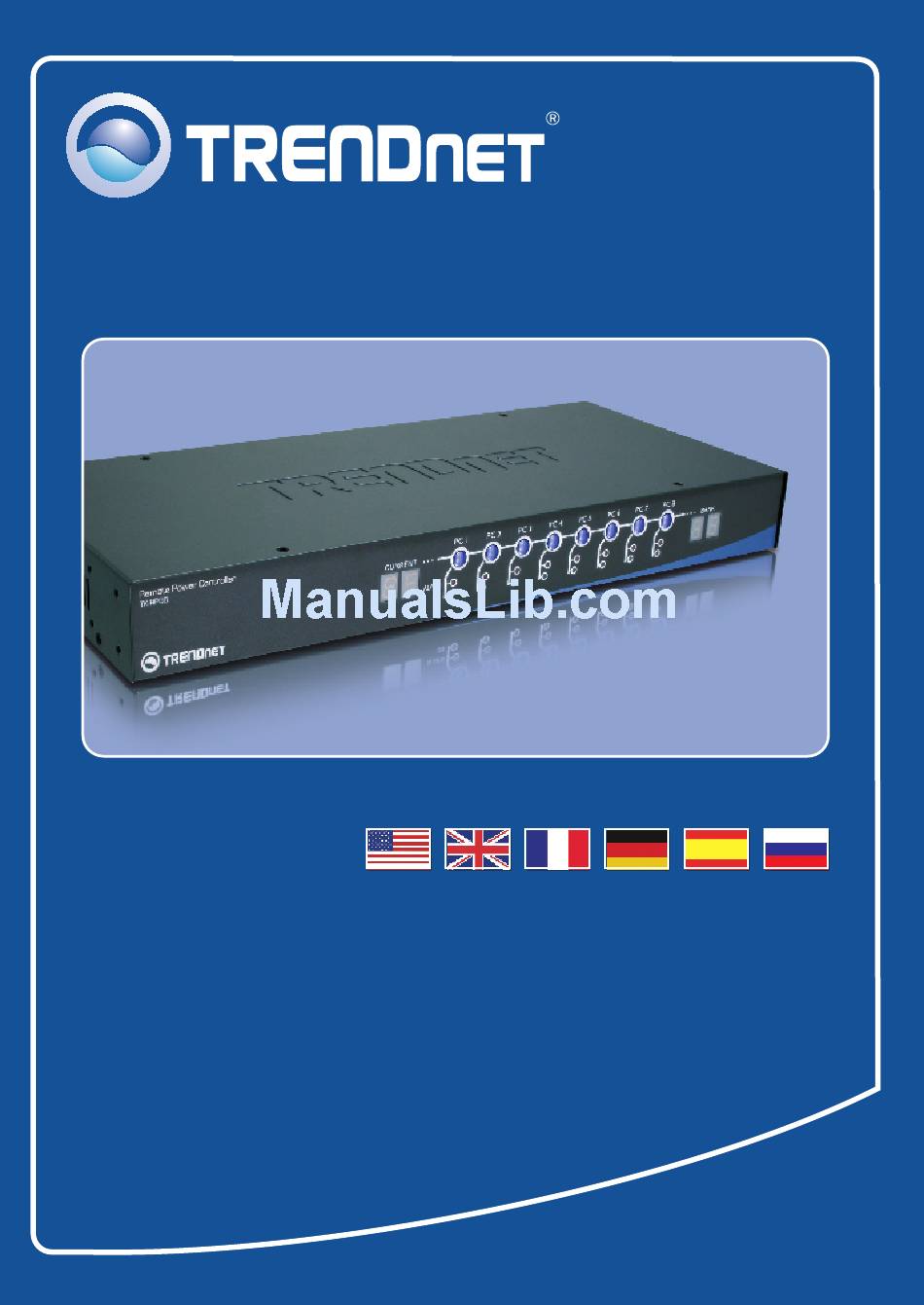

- Page 1 Quick Installation Guide TK-RP08 H/W: v1.0R...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. 2. How to Install ..................3. Operation and Configuration ............Troubleshooting ..................Version 04.10.2008... -
Page 3: English
1. Before You Start Package Contents TK-RP08 Quick Installation Guide Utility CD-ROM RS-232 Cable· RJ-45 Ethernet Cables Rack Mount Brackets Power Cord System Requirements RJ-45 Ethernet Cables AC-powered Device Windows 98SE/2000/XP/Vista PC required TK-IP101 (Optional) Broadband/DSL Router (e.g. TW100-S4W1CA)(Optional) Application Remote Power Controller (TK-RP08) 1-Port KVM Switch over IP... -
Page 4: How To Install
2. How to Install Standalone 1. Connect the included Power Cord to the TK-RP08 and then to a power outlet. To TK-RP08 To PC 2. Connect the RS-232 cable from a serial port on your computer to the serial port on the TK-RP08. 3. - Page 5 Daisy Chain Note: You can daisy chain up to 16 TK-RP08 together, with a maximum of 128 AC powered devices. 1. Connect one end of the provided RJ-45 Ethernet cable to the Daisy Chain Output port on the first TK-RP08 (master). 2.
- Page 6 KVM switch. Your installation is now complete. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.TRENDnet.com/register register your product Online at: Thank you for choosing TRENDnet English...
-
Page 7: Operation And Configuration
3. Operation and Configuration LEDs and Push Buttons Current Push Buttons Bank Number Indicates the amount of Press the push Indicates the current being used. The buttons to power sequence of the maximum allowable on and off the KVM switch current is 15 amps. - Page 8 2. Follow the InstallShield Wizard instructions and then click Finish. 3. Double click the TRENDnet IP Power Manager icon on your desktop. 4. Click on Setting, and then click Connect. 5. Click OK. 6. Click the power button. 7. Click OK.
-
Page 9: Troubleshooting
Please refer to the User Guide on the Utility CD-ROM for list of commands. Make sure to exit out of the IP Power Management Utility first. If you still encounter problems or have any questions regarding the TK-RP08, please contact Trendnet's Technical Support Department. - Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
