Dear Customer,
Thank you for choosing an UEBLER bicycle rack.
Please observe the work and safety instructions
described in these mounting and operating instructions
at all times. We will not accept any liability for damage
resulting from failure to do so.
This section describes and illustrates how to mount and oper-
ate the Uebler i21 Z bicycle rack. The procedure for the
Uebler i31 Z bicycle rack is similar.

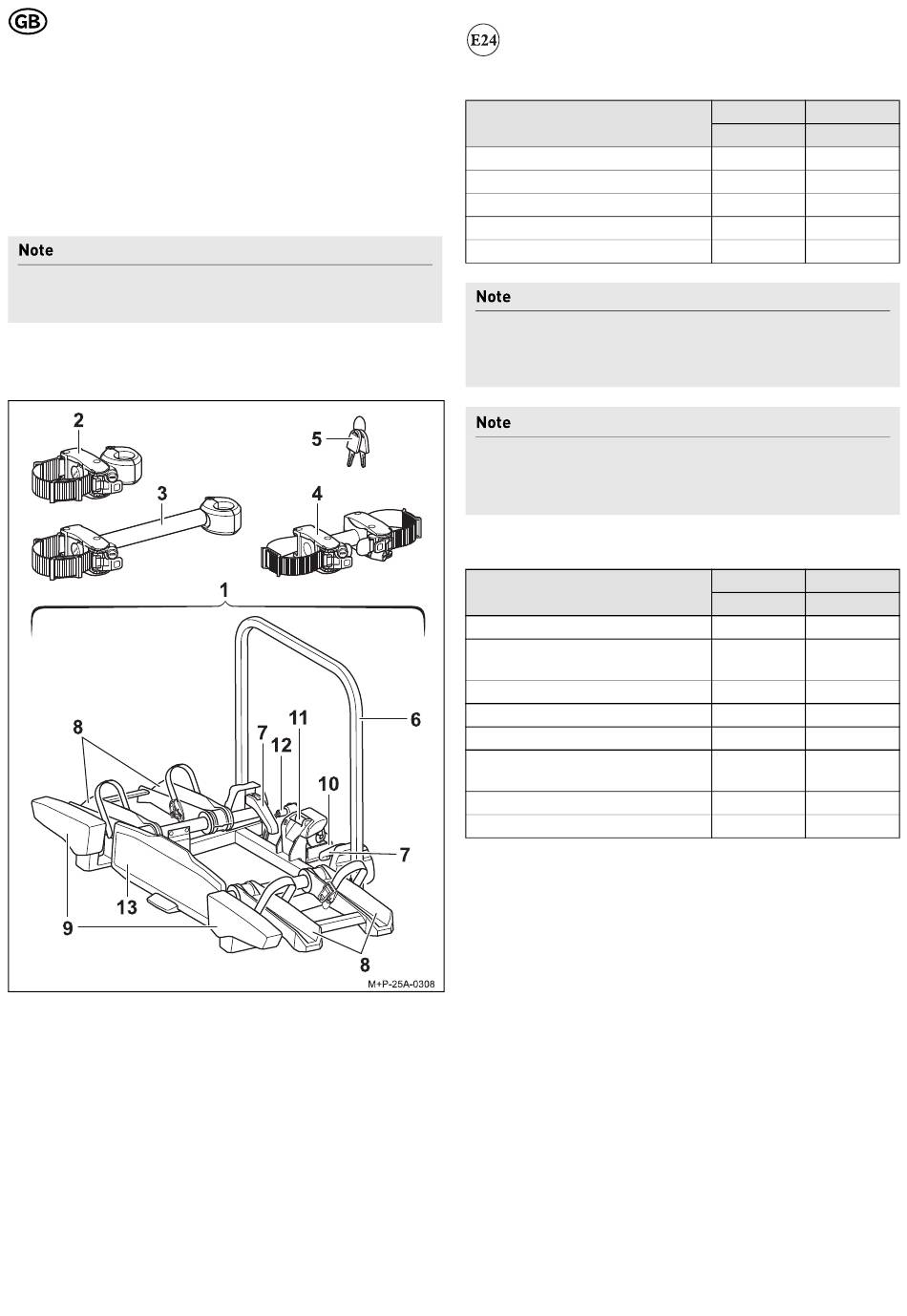

Parts overview
Order numbers
Uebler i21 Z90 rack for 2 bicycles
Order no. 18110 (foldable 90°)
Uebler i21 Z60 rack for 2 bicycles
Order no. 18190 (foldable 60°)
Uebler i31 Z rack for 3 bicycles
Order no. 18130
ECE type approval number
E24*26R04/00*0136*00
Scope of delivery
Designation
1
Bicycle rack
2
Bracket 1st bicycle
3
Bracket 2nd bicycle
4
Bracket 3rd bicycle
5
Key
The scope of delivery is subject to change.
Repairs or replacement of parts must be performed by a spe-
cialist workshop. For safety reasons, Uebler recommends only
using genuine spare parts available from your specialist dealer.
The holders (2), (3) and (4) are included separately in the de-
livery package and are not pre-assembled. The keys (5) are in-
serted in the lock of the holders (2), (3) and (4) and in the lock
of the safety lever (11).
Part designation
Designation
6
Rack frame
7
Quick-release clamp for rack
frame
8
Wheel rails
9
Tail light unit
10 Towbar attachment
11 Safety lever for towbar attach-
ment
12 Plug for lights
13 Number plate holder
- 13 -
i21 Z
i31 Z
Quantity
Quantity
1
1
1
1
1
1
–
1
6
10
i21 Z
i31 Z
Quantity
Quantity
1
1
2
2
4
6
2
2
1
1
1
1
1
1
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Uebler i21 Z90
Summary of Contents for Uebler i21 Z90
- Page 1 Bracket 3rd bicycle – This section describes and illustrates how to mount and oper- ate the Uebler i21 Z bicycle rack. The procedure for the Uebler i31 Z bicycle rack is similar. The scope of delivery is subject to change.
-
Page 2: Technical Data
The ball head must be cleaned and degreased prior to mounting. 1 Bag optionally available (for Uebler i21 Z rack item no. 25020, for Uebler i31 Z rack item no. 25030) - 14 -... - Page 3 5. Check that the bicycle rack (1) is parallel to the bumper and roughly parallel to the ground. Shake the bicycle rack (1) to check that it is firmly fitted. If necessary, take off the bicycle rack (1) and mount it again. 6.
- Page 4 14. Push the holder (18) down (arrow I). 15. Slide the number plate (19) into the number plate holder (13), push it up and press it all the way in (arrow II). 16. Let go of the holder (18) and check that the number plate is securely fitted.
- Page 5 The bicycles must be mounted evenly and with a low centre of gravity on the bicycle rack. Each must be secured against fall- ing off using a bracket on the bicycle frame and lashing straps on front and rear wheels. Otherwise, the bicycles and/or loose parts could become de- tached from the vehicle, causing an accident and possible property damage and injury to other road users.
- Page 6 Mounting the first bicycle 1. Unlock the tensioner (21) with the key (5). 2. Press the tensioner (21) (arrow I) and pull out the lashing strap (22) (arrow II). 4. Position the opened clamp (25) around the rack frame (6) and release the twist grip (24).
- Page 7 12. Guide the lashing straps (27) between the middle of the wheel spokes. 13. Thread the lashing strap (27) into the buckle (28) and tighten it. Do not tighten the lashing straps (27) too firmly, otherwise the tyres or rims could be damaged. 14.
- Page 8 Secure third bicycle 4. Guide the second tensioning belt (22) around the bicycle frame of the third bicycle, and push it far enough into the tensioning device (23) (arrow II) so that at least one belt tooth protrudes. 5. Use the tensioners (21) to tighten the lashing straps (22) (arrow III).
-
Page 9: Preparation Before Driving
Repeat this check at regular intervals depending on road con- ditions. When using the Uebler i21 Z bike rack (version that folds 90°), the handlebars of the second bicycle may touch the ground due Check that the lights are in perfect working order before each to the larger tilt angle. -
Page 10: Changing Bulbs
Changing bulbs When changing bulbs the vehicle ignition must be switched off and the plug for the lights removed from the towbar electrical socket. Failure to do so can result in a short circuit or other damage. If you are not sure, have the bulbs replaced by a spe- cialist workshop. -
Page 11: General Safety Instructions
Please observe the work and safety instructions described in these mounting and operating instructions at all times. The bicycle rack for the towbar is intended only for transporting bicycles. The bicycle rack is not suitable for use on rough ter- rain. -
Page 12: Note On Disposal
Note on disposal Dispose of components, accessories and packaging for The mounted bicycle rack and bicycles alter the vehicle’s driv- environmentally sound recycling. Do not dispose of the lamp unit ing and braking characteristics as well as its susceptibility to with household or residual waste.
