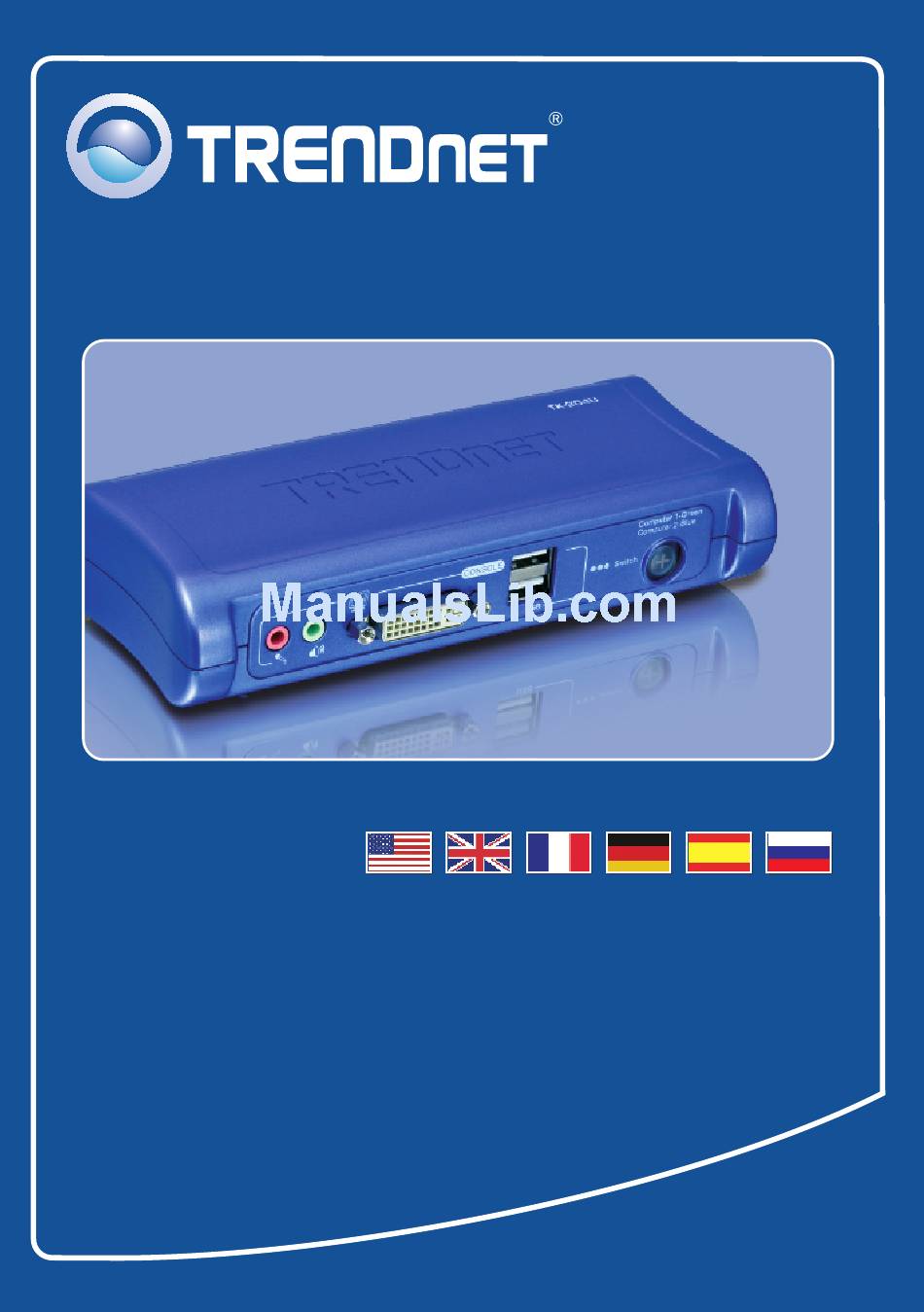

- Page 1 Quick Installation Guide TK-204UK H/W: V1.0R...
-
Page 2: Table Of Contents
English ..................... 1. Before You Start ................2. How to Install ..................3. Operation ................... 4. Using the KVM Utility ................Specifications .................... Troubleshooting .................. -
Page 3: English
1. Before You Start Package Contents TK-204UK Utility and User Guide CD-ROM Quick Installation Guide AC Power Adapter (5V DC, 2A) 2 sets of DVI Audio KVM Cables 2 sets of Type A to Type B USB Cables System Requirements USB Keyboard USB Mouse DVI Monitor... -
Page 4: How To Install
2. How to Install 1. Turn OFF all computers. 2. Connect the shared USB keyboard, DVI monitor, USB mouse, speakers (optional) and microphone (optional) to the KVM switch's Console Port. To Computer 3. Use the KVM and USB cables to connect your PCs to the KVM Switch. - Page 5 Your installation is now complete. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet English...
-
Page 6: Operation
3. Operation Note: To switch between computers, you can use the face-panel buttons of the KVM Switch, a hot-key command sequence via keyboard, or the Client Software Utility (Windows only). Push Buttons Press the push buttons to switch between computers. LED Indicators Green LED light: Computer 1 Blue LED light: Computer 2... -
Page 7: Using The Kvm Utility
4. Using the KVM Utility For Windows Users 1. Click Utility Install. 2. Click Next. Then follow the Setup Wizard instructions. 3. Click Finish. 4. Double click on the KVM Utility icon. English... - Page 8 5. If you would like to modify the hot key, type in a character. You can enter any number, letter or symbol. Control keys such as Alt, Ctrl, Shift, CAPS LOCK, Tab, Esc, and Num Lock and function keys can not be used.
- Page 9 10. Select the PC and you want to switch to. 11. Click Start Auto-Scan to start Auto-Scan. Right click the KVM Utility icon and select Stop Auto-Scan to stop Auto- Scan. English...
- Page 14 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
-
Page 15: Customer Support
Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
