TRENDnet TK-208K User Manual

TRENDnet TK-208K User Manual

2-port ps/2 audio kvm switch
Hide thumbs Also See for TK-208K:

Advertisement

Quick Links

Download this manual
User's Guide
TK-208K

Advertisement

loading
Need help?

Need help?

Do you have a question about the TK-208K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TK-208K

Summary of Contents for TRENDnet TK-208K

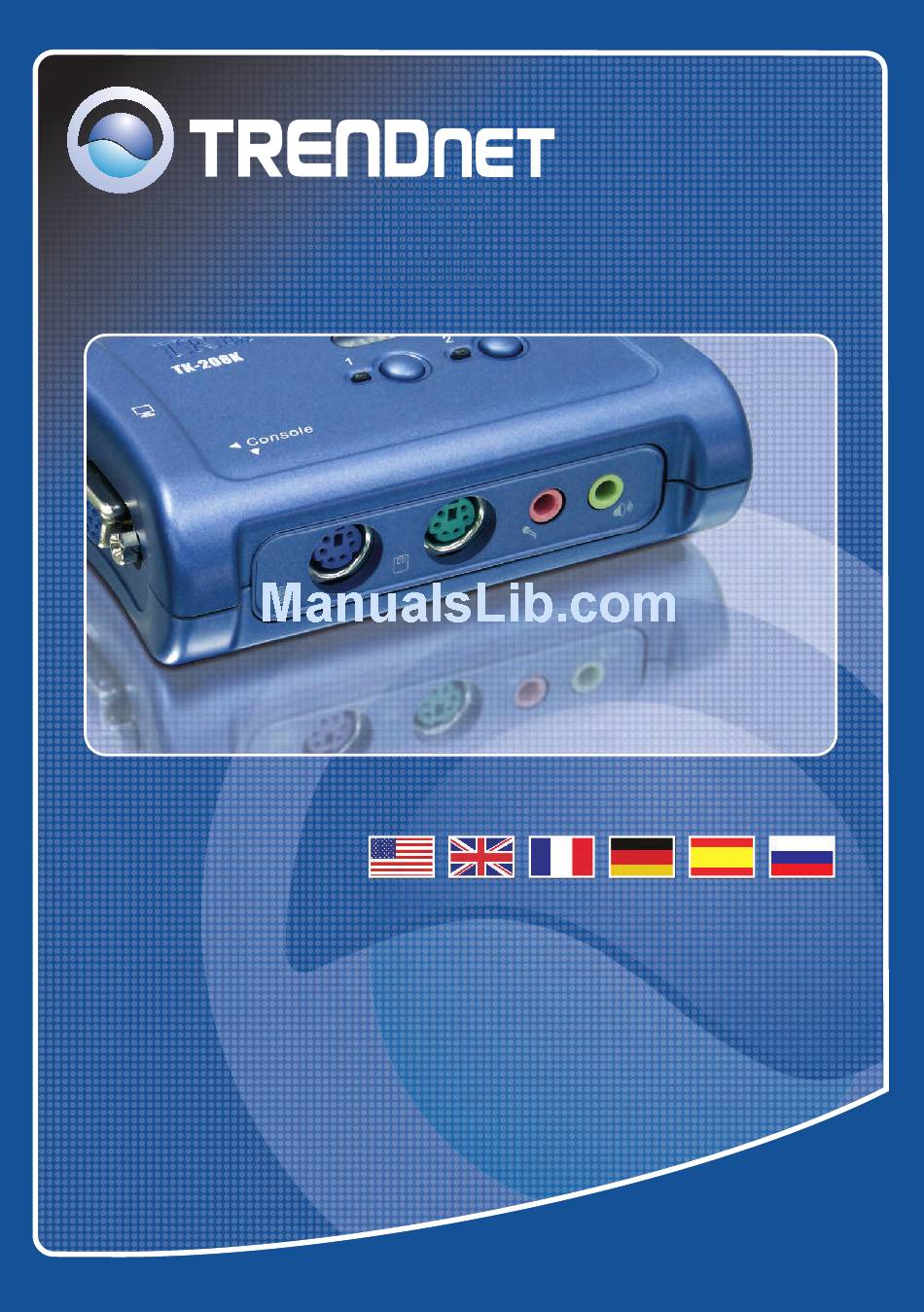

  • Page 1 User’s Guide TK-208K...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ... 1. Before You Start 2. How to Connect ... 3. Using the KVM Switch ... Specifications ... Troubleshooting ... Version 10.31.05...

  • Page 3: English

    6-pin Mini-Din PS/2 Keyboard 6-pin Mini-Din PS/2 Mouse Speakers Microphone Application PC 1 LCD Monitor Keyboard Package Content TK-208K Multi-Language User’s Guide 2 Sets of KVM & Audio Cables 2-Port PS/2 Audio KVM Switch Mouse English PC 2 (TK-208K) Speakers...

  • Page 4: How To Connect

    2. How to Connect 1. Connect the Monitor to your Switch's Console Port. 2. Connect the Keyboard, Mouse, Microphone and Speakers to the Switch's Console Port. 3. Use the provided KVM cables to connect your PC to your KVM switch. English...
  • Page 5 4. Connect the other end of the cable to the Switch's PC Port. 5. Connect the other end of the Audio cable to the Switch's Audio Port. 6. Turn on all connected PC’s. Your installation is now complete. English...

  • Page 6: Using The Kvm Switch

    3. Using the KVM Switch To alternate between computers, you use hot-key commands. Hot-Key Commands A keyboard hot-key command consists of three keystrokes: Hot-Key command = ScrLk + ScrLk + Command key(s) After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again. You then have another 2 seconds to press a command key.
  • Page 7 Quick Reference Sheet for TK-208K Hot-Keys Command ScrLk ScrLk Select PC x = 1 ~ 2 for PC channel number ScrLk Select Audio/Mic Channel (Fx is a function key) x = 1 ~ 2 for Audio mic channel number Bind PC & Audio/Mic...

  • Page 8: Specifications

    Specifications Computer Connections: KVM Cable: Cable Connectors: Console Port Connectors: Port Selection: Auto-Scan Intervals: Keyboard State: Power Type: Dimensions: Weight: Operating Temperature: Storage Temperature: Humidity: Certifications: 2 Sets of 1.2M (4ft) KVM & Audio Cables To Console: 1 x 15-pin HDB type VGA (Male) To PC: •...

  • Page 9: Troubleshooting

    Troubleshooting Where is the power supply? I did not find one in the box. The TK-208K does not require a power supply. It draws power from your computer's PS/2 connections. As long as your KVM switch is connected to the PS/2 port, it will receive the necessary power to function.
  • Page 10 TK-208K - 2 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 11 PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDnet'S PRODUCTS. TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY...

  • Page 12: Product Warranty Registration

    Email: support@trendnet.com Tech Support Hours 24/7 Toll Free Tech Support Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet. Contact...
