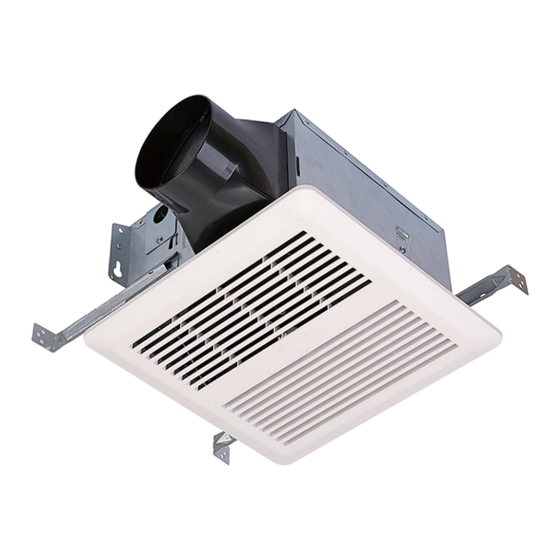

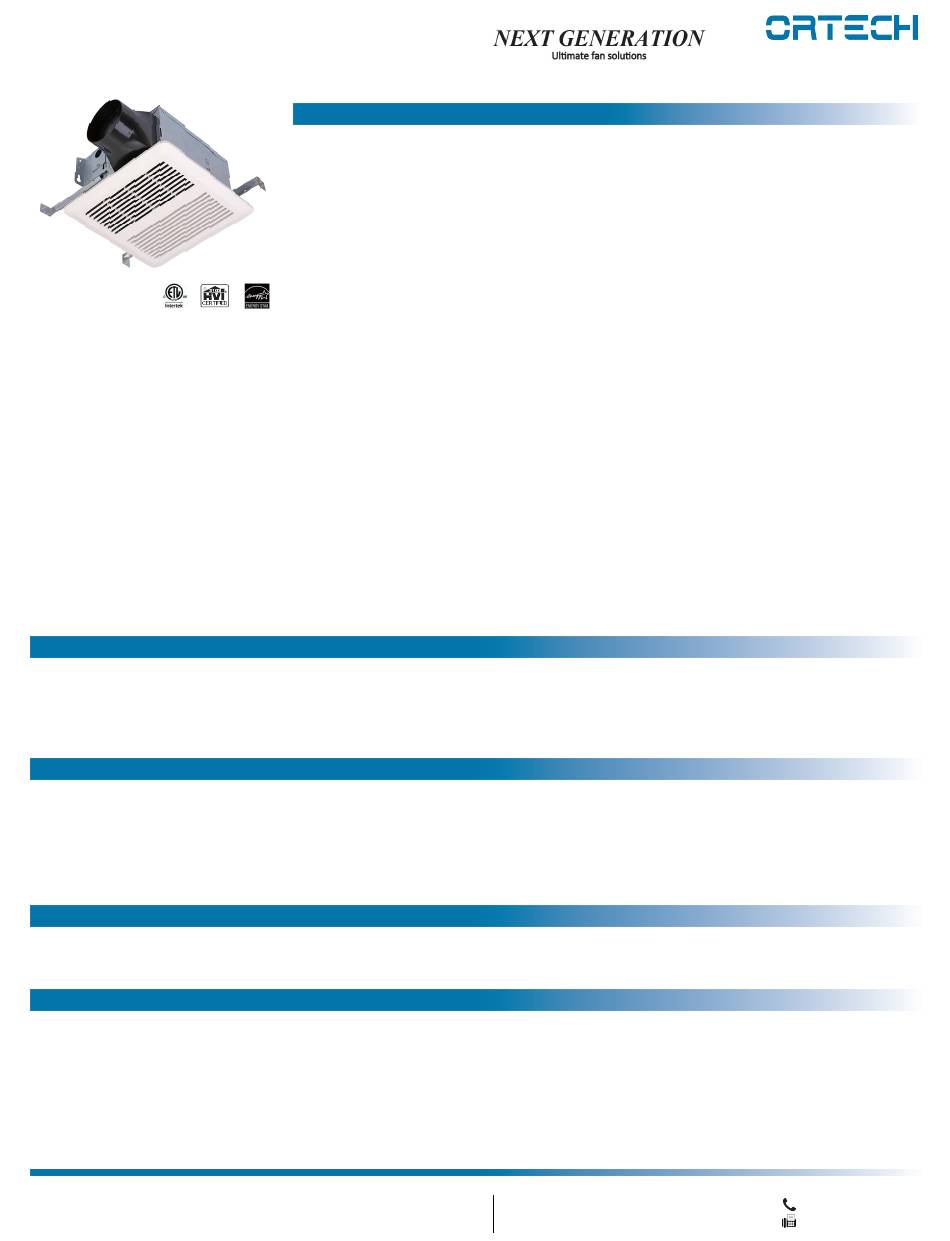

Ortech Compact ODC-1109 Instruction Manual

Compact Series
MODEL ODC-8003 | ODC-9006 | ODC-1109
1. Use this unit only in the manner intended by the manufacturer. Contact the manufacturer in case of questions
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities
5. When cutting or drilling into wall or ceiling, DO NOT damage electrical wiring and other hidden utilities
6. Ducted fans must always be vented to the outdoors
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) —
protected branch circuit (ceiling installation only)
8. This unit must be grounded
9. This product is designed for installation in ceilings up to a 12/12 pitch (45°). Duct connector MUST point up.
DO NOT mount this product in a wall
CAUTION
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appearance — lower or remove grille and vacuum interior of unit
with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises,
replace the motor with the exact service motor. The impeller should also be replaced.
OPERATION
See "Connect Electrical Wiring" on page 4 of this instruction manual for details.
INSTALLATION GUIDE
Types of Typical Installations
1. Housing mounted to I-joists (refer to Assembly Instructions 1 on the next page of this manual)
2. Housing mounted to joists (refer to Assembly Instructions 1 on the next page of this manual)
3. Housing mounted to truss (refer to Assembly Instructions 2 on the next page of this manual)
info@ortechindustries.com
www.ortechindustries.ca
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. For general ventilating use only. DO NOT use to exhaust hazardous or explosive
materials and vapours
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit
3. Read specification label on product for further information and requirements
Application Notice
13376 Comber Way
Surrey BC V3W 5V9
205 Summerlea Rd,
Brampton, ON L6T 4E5
Instruction Manual
1-888-543-6473
1-888-541-6474
