Ortech ODD-ERV-80 Instruction Manual

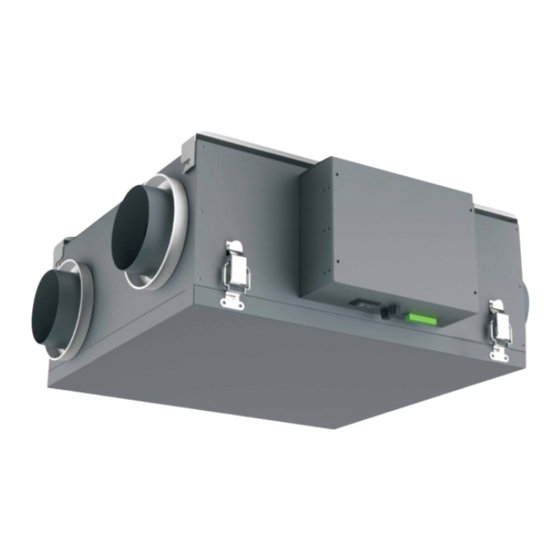

ENERGY RECOVERY VENTILATOR
ODD-ERV-80 | ODD-ERV-120 | ODD-ERV-150 ODD-ERV-80 | ODD-ERV-120 | ODD-ERV-150
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN. WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.
• Risk of property damage, injury or death. Installation, service, and maintenance • Risk of property damage, injury or death. Installation, service, and maintenance
must be performed by a qualified service technician
• 110 or 220 Volts may cause serious injury from electric shock. Disconnect • 110 or 220 Volts may cause serious injury from electric shock. Disconnect
electrical power before starting installation or servicing. Leave power electrical power before starting installation or servicing. Leave power
disconnected until installation/service is completed
• The unit must be ceiling mounted. Please mount the unit with the access • The unit must be ceiling mounted. Please mount the unit with the access
door facing down
• Sharp edges may cause serious injury from cuts. Use care when • Sharp edges may cause serious injury from cuts. Use care when
handling duct work
• Inhalation of toxic gases or fumes can be harmful. The fresh air intake • Inhalation of toxic gases or fumes can be harmful. The fresh air intake
must be mounted in a location removed from sources of dangerous toxic must be mounted in a location removed from sources of dangerous toxic
gases. All ducting must be separate from other household exhaust systems gases. All ducting must be separate from other household exhaust systems
• Insu cient combustion air may cause toxic conditions. The unit must not exhaust air from an enclosed • Insu cient combustion air may cause toxic conditions. The unit must not exhaust air from an enclosed
room with combustion appliances
• Excess negative or positive pressure may cause health problems or structural damage. The airflow must be balanced • Excess negative or positive pressure may cause health problems or structural damage. The airflow must be balanced
a er installation
• Dropping may cause personal injury or equipment damage. Handle with care and follow installation instructions
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
The installation must conform to all applicable codes. The fresh air duct from outside and to the house and the stale air duct from the unit to
the outside must be fully insulated to prevent condensation from forming on the duct work
STRUCTURE AND OPERATING LOGIC
The unit has the following operating logic (Figure 1):
Warm stale air extracted from the indoor space is purified in the exhaust filter
and is supplied to the heat recovery core before being exhausted to an
outdoor space. Clean cold air from outside is purified through the supply filter
and is supplied to the heat recovery core before being supplied to the indoor
space.
Thermal energy of warm extracted air is transferred to the supplied fresh air
before the fresh air is supplied to a room. The extract and intake air flows are
fully separated during heat recovery which prevents any transfer of odors and
pathogens to the supply air. Heat recovery minimizes thermal energy losses,
energy demand and heating costs.
Both sensible thermal energy and latent moisture energy contained in the
extract air are transferred in the unit heat recovery core to the cold intake air
flow from outside to warm it up before supplying to the room.
ERVs: The graphene modified polymer membranes core of the unit operates
as a moisture balancer in case of low outdoor humidity or as an air dryer in
case of high outdoor air humidity. Due to high hydroscopic features of the
heat and energy recovery core material the unit does not need condensate
drainage. Application of the heat exchanger provides decreasing thermal
energy losses and heating costs saving during cold season.
HRVs: The Aluminum heat recovery core of the unit operates as a temperature
balancer in case of large temperature di erences between indoor and
outdoor. When the air streams flow through the core, condensation may
accumulate, requiring a drain for extraction out of the unit.
www.ortechindustries.ca 1.888.543.6473
Instruction Manual
RA
SA
13376 Comber Way, 205 Summerlea Road,
Surrey, BC V3W 5V9 Brampton, Ontario
5
Indoor Side
3
1. Duct connecting collars OA - Outside Air
2. Exhaust fan SA - Supply Air
3. Supply fan RA - Room Air
4. Energy exchanger core EA - Exhaust Air
5. Air filters
6. Connection box
info@ortechindustries.com
OA
Outdoor Side
2
EA
1
4
(figure 1)
6
604.543.6473
