Sealey PSI300.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Electrical shock
instructions hazard
1. SAFETY
▲ DANGER! - Beware, lead-acid batteries generate explosive gases during normal battery operation.
DO NOT smoke or allow a spark or flame in the vicinity of the battery or engine.
8
If the battery terminals are corroded or dirty, clean them before attaching the leads.
9
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow
‰
them to touch the battery terminals.
Before attaching to battery, remove personal metallic items such as rings, bracelets, necklaces and watches. A lead acid battery can
9
produce a short-circuit current which is high enough to weld such items to the vehicle and cause severe burns.
Keep children and unauthorised persons away from the working area.
9
WARNING! DO NOT use on any vehicles other than those with 12Volt DC systems.
‰
WARNING! For delicate items such as laptops, an anti-surge device is recommended.
‰
DO NOT connect to any AC power source.
8
DO NOT disassemble. The inverter must be checked by qualified service personnel only.
8
DO NOT get inverter wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT use the inverter for any purpose other than for which it is designed.
8
DO NOT pull the cables or clips from the battery terminals.
8
DO NOT operate the inverter if damaged.
8
DO NOT connect to a positive earthed system. Ensure you have the polarity correct before connecting, red clip to positive (+) battery
8
terminal and black clip to negative (-) battery terminal.
Before connecting ensure nothing is plugged into the inverter, and the inverter is switched OFF.
9
WARNING! Inverters become hot during use.
‰
When not in use store inverter in a safe, dry, childproof location.
9
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
‰
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this
product, but must be applied by the operator.
NOTE: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. INTRODUCTION
Pure sine wave inverters have been designed to produce the same AV frequency produced on the grid, making them more reliable
than traditional inverters, without any fluctuation in power or performance. Operates from a 12V DC power supply found in cars,
caravans, boats and HGVs. High performance outlet eliminates electrical interference, reducing noise levels during use. Suitable for
powering small TVs, laptops, power tools and various electrical equipment within the wattage rating of the inverter. Includes USB outlet
for charging and operating small electric devices. Aluminium case provides durability and maximum heat dissipation. Safety features
include automatic overload shutdown and short circuit protection. Supplied with a vehicle accessory plug and/or battery clips/terminals
depending on model.
3. SPECIFICATION
MODEL NO:
Continuous Output:
Dimension (W x D x H):
Input Voltage:
Nett Weight:
Output Frequency:
Output Voltage:
Supply Connection:
USB Output:
© Jack Sealey Limited

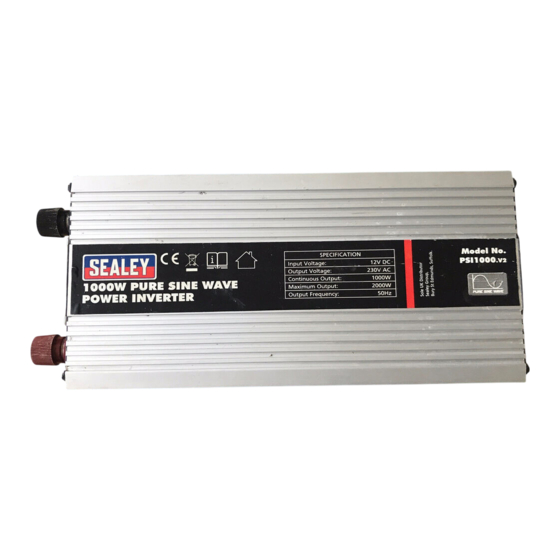

12V DC PURE SINE WAVE POWER INVERTERS
- 230V 50Hz
PSI300.V3, PSI600.V3, PSI1000.V2
MODEL NO:
Warning!
Warning!
Battery Charging
PSI300
300W
205 x 115 x 60mm
12V/24V
0.88kg
50Hz
230V
Battery Terminal Leads, Car
Socket Plug, Battery Clips
5V/1A
Original Language Version
PSI600
600W
260 x 115 x 60mm
12V/24V
1.16kg
50Hz
230V
Battery Terminal Leads
5V/1A
PSI300.V3, PSI600.V3, PSI1000.V2 Issue 3 (3) 22/03/24
PSI1000
1000W
315 x 140 x 80mm
12/DC
2.69kg
50Hz
230V AC/USB 5V 500Ma
Battery Terminal Leads
N/A
