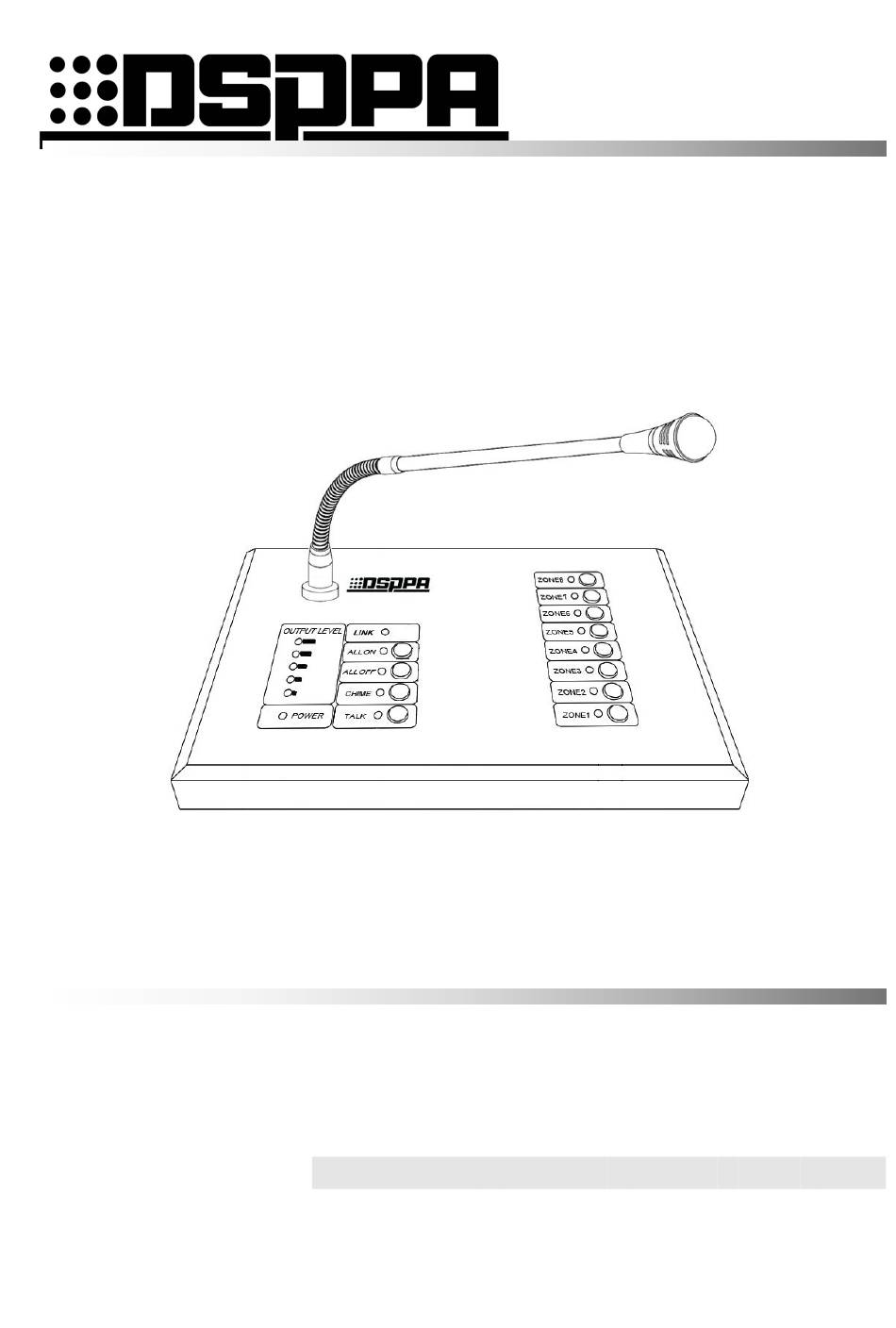

- Page 1 Manual Welcome to DSPPA Public Address System! Please read the Instructions carefully before operating this device. G u a n g z h o u D S P PA A u d i o C o . , L t d .
-
Page 2: About The Manual
The manual is used since paging microphone MAG808R device is developed. It contains system introduction, operation attentions, system connection instructions, product instructions and other contents of the MAG808R device. The user shall read the Instructions carefully and operate the device by following instructions before the installation and operation of the device. - Page 3 Caution To assure the finest performance, please use or operate the product in accordance with corresponding instructions. This symbol indicates "forbidden content" This symbol indicates "compulsory content" ■ Please make sure that the ■ When the equipment is in use, DO NOT block the air power wire is NOT damaged.
-
Page 4: Table Of Contents
CONTENTS Ⅰ. PRODUCT DESCRIPTION........................... - 1 - ......................- 1 - 1.1 B RIEF INTRODUCTION ABOUT THE PRODUCT 1.2 F ................................- 1 - EATURES Ⅱ. APPEARANCE DESCRIPTION..........................- 1 - 2.1 F ..........................- 1 - RONT PANEL INTRODUCTION 2.2 R ............................- 3 - EAR PANEL DESCRIPTION PACKING LIST................................ -
Page 5: Ⅰ. Product Description
Paging Microphone Ⅰ. Product Description 1.1 Brief introduction about the product MAG808R is a multi-function microphone. Each microphone can control eight zones. Each zone can be controlled separately or controlled together. 1.2 Features Level indication; It can control eight zones;... -
Page 6: Link Indicator
Paging Microphone 4.TALK switch button Press this button and the microphone will be turned on, and you can input sound. Corresponding indicator 3 will light up. 5.CHIME indicator Press the CHIME-2 button 6, select the bell 2 and the light will be light up. 6.CHIME switch button Press this button and the bell 2 will be on, and the corresponding indicator 5 will light up. -
Page 7: Rear Panel Description
Adjust it with a screwdriver. 7. Microphone volume adjustment knob Adjust it with a screwdriver. 8. Extended interfaces TEST and OUT a. MAG808R paging microphone OUT interface access to MAG808 PAGE interface; b. Both use RJ45 terminal. 9. Test interface - 3 -... -
Page 8: Safety Precautions
Paging Microphone Safety Precautions 1． Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device, ... -
Page 9: Packing List
Paging Microphone Packing List List MAG808R device 1 set Warranty card 1 copy Certificate 1 copy User manual 1 copy 1500MM/Audio cable 1 piece D626 Microphone stick 1 piece D626C Microphone cap (black) 1 piece Specification Model MAG808R Power supply ～220V/50Hz... - Page 10 Therefore, the power outlet is required to be mounted at a place where the plug of the power wires can be easily unplugged or plugged. Guangzhou DSPPA Audio Co., Ltd. - 6 -...
