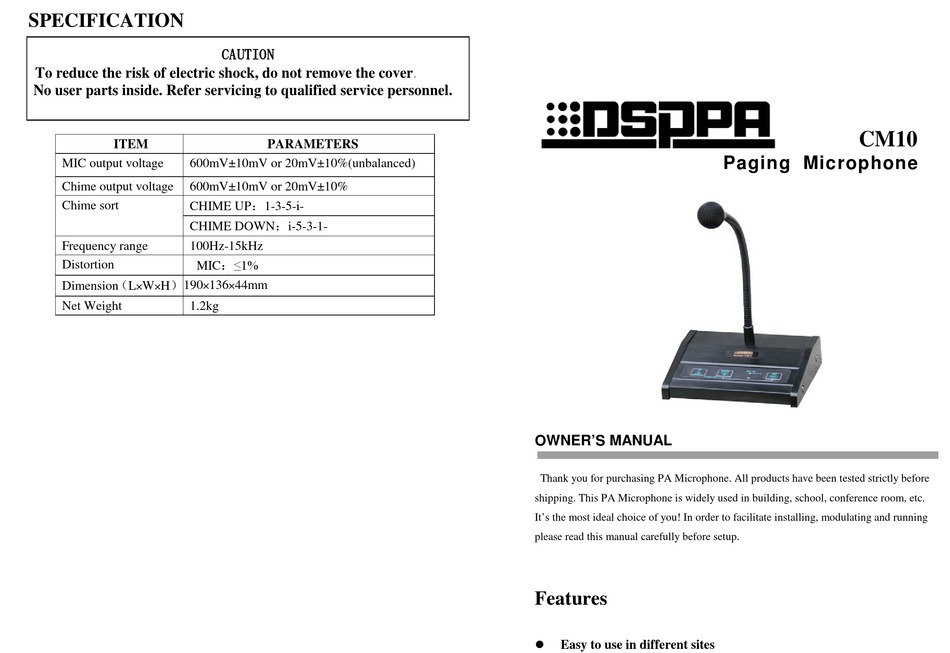

SPECIFICATION
To reduce the risk of electric shock, do not remove the cover
No user parts inside. Refer servicing to qualified service personnel.
ITEM
MIC output voltage
600mV±10mV or 20mV±10%(unbalanced)
Chime output voltage
600mV±10mV or 20mV±10%
Chime sort
CHIME UP：1-3-5-і-
CHIME DOWN：i-5-3-1-
Frequency range
100Hz-15kHz
Distortion
MIC：≤1%
Dimension （L
H） 190
W
×
×
×
Net Weight
1.2kg
CAUTION
PARAMETERS
136
44mm
×
。
OWNER'S MANUAL
Thank you for purchasing PA Microphone. All products have been tested strictly before
shipping. This PA Microphone is widely used in building, school, conference room, etc.
It's the most ideal choice of you! In order to facilitate installing, modulating and running
please read this manual carefully before setup.
Features
Easy to use in different sites
CM10
Paging Microphone
