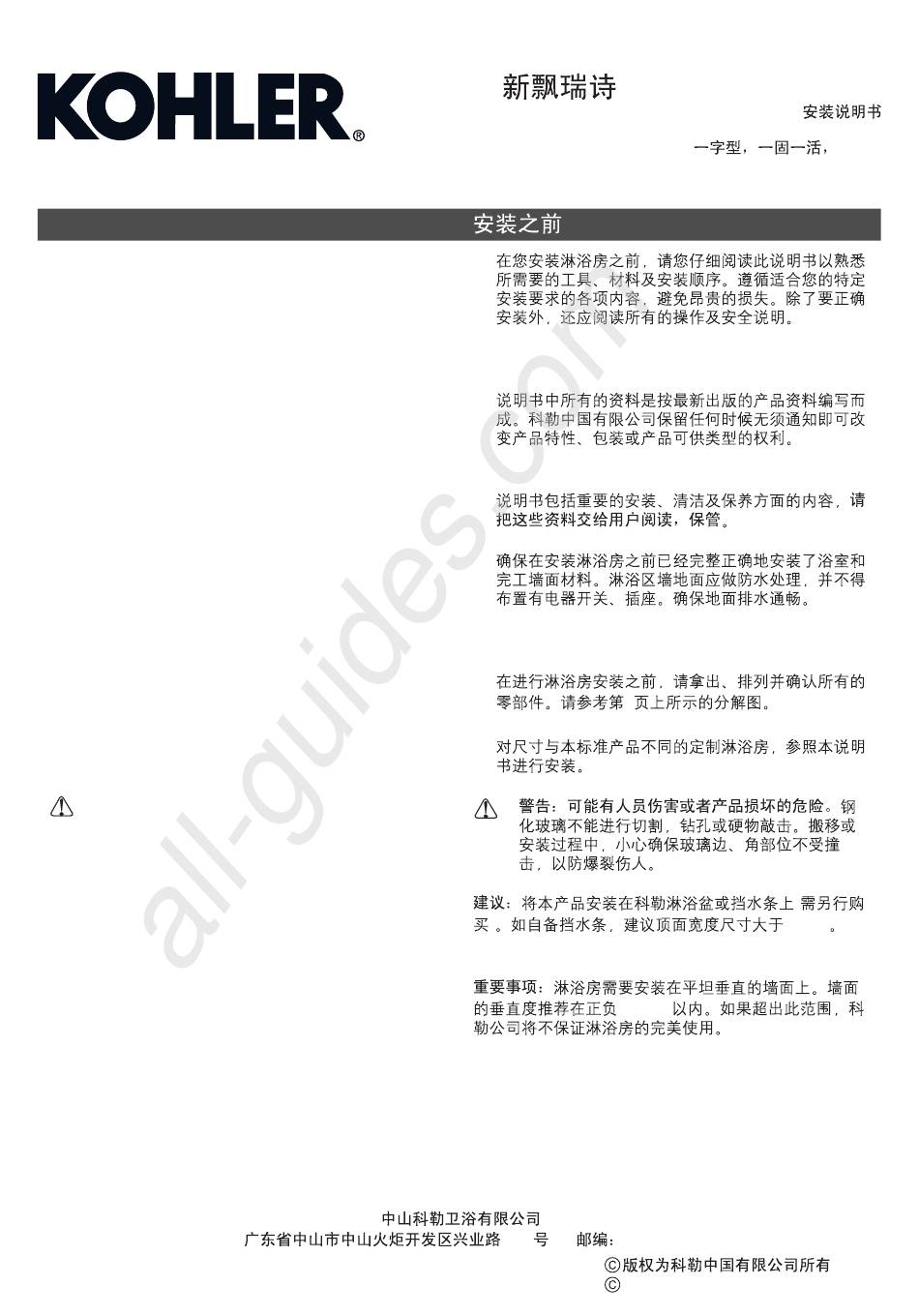

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Before you install your shower door, please read
these instructions carefully to familiarize yourself
with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-
instructions for the consumer.
·
Make sure that the bath and the finished wall
material are completely and correctly installed prior
to installing your shower door. Prepare waterproof
layer to wall and floor of the showering area. It is not
allowed for any presence of electric switches and
sockets. Make sure the floor drain runs smoothly.
·
Before starting the door installation, lay out and
identify all the parts. Use the exploded view
illustrated on page 3 for reference.
·
For the installation method of customized shower
with different dimensions, please refer to this
instructions.
CAUTION: Risk of injury or product damage.
Tempered glass cannot be cut, drilled or
knocked by hard object. Make sure corner area
of the glass refraining from knocking so as to
cause personal injury due to broken glass.
ATTENTION:
Please install this door on Kohler
receptors or curbs (Not included). If the curb is not
Kohler-branded, please note its top width should be
more than 80mm.
IMPORTANT:
The shower door requires a flat vertical
finished wall. The squareness of the wall is
recommended no more than 3 mm/m. KOHLER
Company won't take responsibility of the installation
quality.
1223345-T01-A
All manuals and user guides at all-guides.com
please leave these
·
·
·
·
·
·
)
3mm/m
13-1
-1-
PURIST UPGRADE
INSTALLATION INSTRUCTIONS
SCREEN 1D1P, SHP,10mm
3
(
80mm
528437
Copyright Kohler China Ltd., 2014
10mm
K-99167T
, 2014
Advertisement
Table of Contents
Related Manuals for Kohler K-99167T
Summary of Contents for Kohler K-99167T
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. · ·...
-
Page 2: Parts Identification
All manuals and user guides at all-guides.com ROUGHING-IN Unit: mm K-99167T 900-1600 1850-2000 PARTS IDENTIFICATION PARTS IDENTIFICATION Glass Clamp Purist Bracket Assy Side Seal Door Glass Purist Top Hinge Assy Wall Channel Side Frame Purist Bottom Hinge Assy Purist Handle Assy... -
Page 3: Installation Requirements
All manuals and user guides at all-guides.com INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS Tools Required · · Phillips Screwdriver · · Pencil · · Caulk Gun · · Measuring Tape · · Safety Glasses · Center Punch · · Hammer · · Knife ·... - Page 4 All manuals and user guides at all-guides.com Fix the wall channel and glass on the other side by Insert the hingelite panel into the wall channel. following the same steps. Pre-install seals onto the wall channel and then fix it. STEP STEP Fix the bottom hinge onto the side panel.
- Page 5 All manuals and user guides at all-guides.com Tighten the screws of the wall channels and clamp the Fix the upper hinge onto the door glass. side panels. STEP STEP Remove the upper and bottom hinge covers and the Lift the door glass and insert into the bottom hinge. clamp plates.
- Page 6 All manuals and user guides at all-guides.com Fix the clamp plate into the bottom hinge to tightly clip Fix the upper clamp plate. Adjust the rollers to make the glass. Pay attention to the direction of the rubber the door glass level. Tighten the clamp plate. gasket.
- Page 7 All manuals and user guides at all-guides.com Fix door seal and side seal. Fix bottom seal. Inward-opening door Inside Outside Outward-opening door Inside Outside STEP STEP Drill a 3.3 hole. Fix the bottom hinge and side panel Adjust to a proper angle and install the handle. block to the bottom panel.
- Page 8 All manuals and user guides at all-guides.com Fix upper and bottom hinge covers. Tighten the upper and bottom hinge covers by tightening the screw. STEP STEP Fix other decorative covers. Apply a thin layer of silicone seal on the bottom frame. STEP STEP 1223345-T01-A...
- Page 9 All manuals and user guides at all-guides.com Do not use the enclosure for at least 24 hours. 24hrs STEP 1223345-T01-A...
