- Page 1 STRING INVERTER GENERATION 3 INVERTER INSTALLATION MANUAL GIV-PV-3.6-G3 | GIV-PV-5.0-G3 | GIV-PV-6.0-G3 UK | V1.0 10/24...
-
Page 2: Specifications

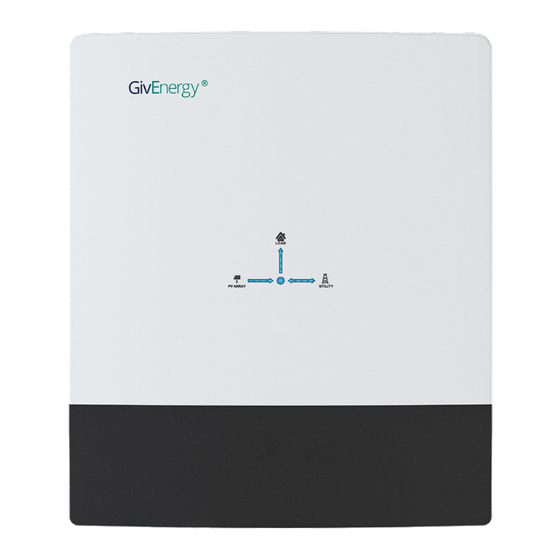

Mounting Bracket Fixings Mounting bracket Convert your solar panel output into usable energy for the home with the GivEnergy string inverter. The string inverter will take the DC energy from your full solar array to a single source and convert it into usable AC for your home. -
Page 3: General Information
The model and specification of the inverter’s nameplate match the order specifications If any damaged or missing parts are found, please contact GivEnergy on 01377 252 874 or email support@givenergy.co.uk immediately. Returns must be provided in original or equivalent packaging. -
Page 4: Safety And Installation
(minimum) tri-rated cables must be used for DC battery connections If you suspect something is wrong with the inverter, contact GivEnergy on 01377 252 874 or email The voltage of the battery connected must not exceed 60V (or it will damage the inverter and void any support@givenergy.co.uk... - Page 5 STEP-BY-STEP INSTALLATION Below is a list of the tools and equipment required to install the Gen 3 hybrid inverter: Mount the inverter onto the mounting bracket. Pencil Wire stripper Safety goggles Electric screwdriver Multimeter Flathead and crosshead screwdriverss Allen key Spirit level Tape measure Impact drill...
-
Page 6: Connections Overview
CLEARANCE AND MAINTENANCE CONNECTIONS OVERVIEW Space Clearance Item Item Name Item Item Name 2 hexagon socket screws, M6x14 Specification label There must be adequate clearance around the inverter to allow for heat dissipation. The diagram Wiring chamber PV input switch below illustrates the space required around the inverter. -
Page 7: Communication Connections
COMMUNICATION CONNECTIONS Please ensure the system is turned off before modifying anything. WiFi Item Function Foot position Note DI1 and DI2 input port 1: DI1+ 2: DI1- 3:DI2+ 4:DI2- Meter and EMS 1:Meter-RS485+ communication port 2:Meter-RS485- 3:GND 4:EMS-RS485§+ 5:EMS-RS485- CT and reserve BMS 1:Meter-RS485+ BMS communication communication port... - Page 8 AC UTILITY GRID CONNECTION CONNECTING MID APPROVED METER TO INVERTER In the system, a mid approved meter must be installed to ensure correct monitoring of the grid power. Cable size requirements for the String Inverter are dependant on the model: The inverter uses this information to decide whether to charge or discharge the battery.
-
Page 9: Label Description
LABEL DESCRIPTION Nameplate Warning Labels This provides unique identification of the inverter (product type, device-specific characteristics, certificates Located under the nameplate of the inverter as shown in the picture: and approvals). The Nameplate is located on the right side of the inverter. Serial number Located on the right side of the inverter, the current inverter serial number information. -
Page 10: Grounding Requirements
START-UP AND SHUT-DOWN OF THE INVERTER GROUNDING REQUIREMENTS Start-Up Procedure Equipment to be grounded, when installing, must first install a protective ground wire; When removing equipment, the protective ground wire must be removed last Connect the AC circuit breaker, ensure that the system is powered and commissioned using the portal/App. - Page 11 Packaging the Inverter To download a fully illustrated guide, please visit our Knowledge Base at www.givenergy.co.uk If possible, always pack the inverter in its orginal packaging and secure it with tension belts. If this is not available, you may also use an equivalent sized box.
- Page 12 This inverter is covered by a 12-year warranty. Products Covered String Inverter Gen 3 3.6 12 years String Inverter Gen 3 5.0 12 years String Inverter Gen 3 6.0 12 years Legal Disclaimer: This document is the property of GivEnergy, reproduction is prohibited.
- Page 13 www.givenergy.co.uk...
