MAINTENANCE

Periodically check weir for free operation. Replace if damaged or worn. Check strainer basket as often as needed for accumulated
leaves, debris, etc. Empty basket as required.
Skimmer deck lid is made of impact and weather resistant materials, but extended use (5-10 years) may lead to reduced strength.
Regularly check condition of skimmer lid. Look for cracks, chips, deterioration of plastic, etc. If any sign of damage or deterioration
is found, replace the deck lid and fasteners.
To winterizing, drain pool until level is below skimmer inlet. Remove cover, basket and float. Plug bottom port(s). Cover skimmer
to prevent rainwater or snow from entering the skimmer where it could freeze.
WARNING! LOW WATER LEVEL CAN MAKE IT DIFFICULT TO EXIT POOL AND MAY DAMAGE PUMP AND OTHER POOL EQUIPMENT.
Note: An equalizer line is a way to bypass the skimmer and it is intended to inhibit damage to the pump when pool water level is below
the throat of the skimmer or the basket is full. You must check your local code as some require equalizer lines, others don't allow them
and others leave it to the pool designer. When equalizer line is used the cover inside the pool must be VGBA compliant, and have a flow
rating higher than the skimmer's configuration-specific flow rating.

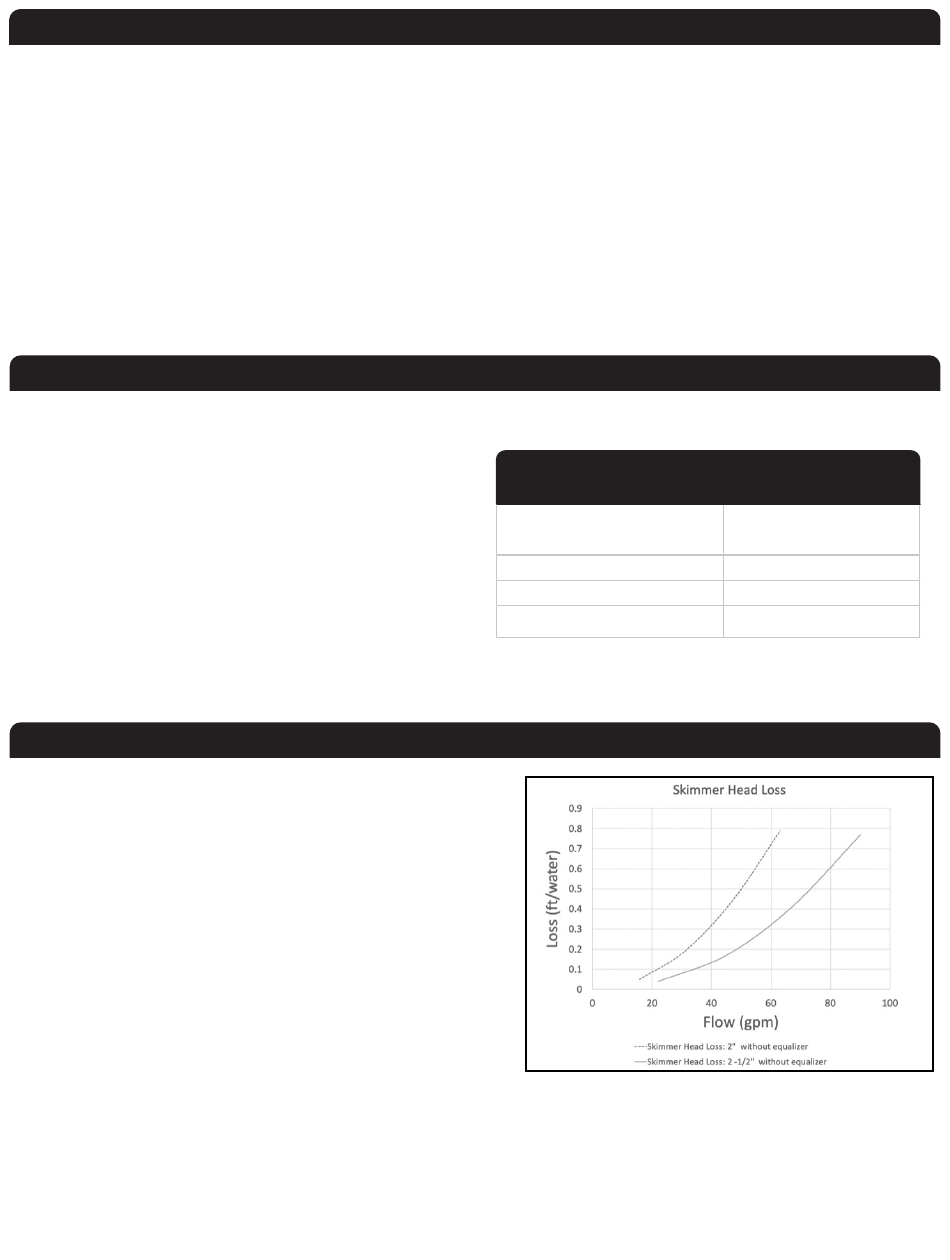

SKIMMER LAYOUT AND SUCTION LINE SIZING
Skimmers are critically important for removing floating
contaminants, oils, and debris; for this reason modern pool
building codes require that the number of skimmers installed are
capable of handling 100% of the filtration flow rate.
1.
The minimum number of skimmers needed is based on
facility type (See Table 1).
2.
When selecting the location for skimmers, at least one
should be placed so that the prevailing wind blows towards
the skimmer.
3.
Size suction pipe based on the design flow rate such that
the water velocity in the pipe will not exceed six feet per
second. To increase system flow capacity for long pipe runs,
use multiple pipes (both ports) or larger pipe (2.5'' spigot, or
3''/4'' adapter bushing #BFB101). See figures 5 and 7 piping
layout.

INSTALLATION

See section "Dimensions and Parts List", "Face Plate Dimensions",
and "Face Installation Instructions" for basic dimensions and further
instructions . Top cover frame has 1" vertical height adjustment.
PIPE CONNECTIONS AND TESTING
Connect pump inlet line to rear port in bottom manifold. Skimmer
manifold is PVC, and comes in a variety of configurations. For threaded
connections inside skimmer manifold, do not use pipe dope; to seal
joint use RTV Silastic #732 (preferred), Teflon tape or Plasto-Joint Stik.
For slip connections, use a temperature-appropriate PVC solvent
cement and primer on both the pipe and the fitting. Ensure all surfaces
are clean and free of debris before application. Consider ambient
temperature and humidity during installation, as these factors can
affect the curing process. Apply the primer to both the pipe and the
fitting, followed by the solvent cement. Assemble the joint per the
cement manufacturer's instructions, including rotating the pipe a
quarter turn to evenly distribute the cement. Allow the joint to set for the recommended time before pressure testing to
ensure a secure and leak-free connection.
WARNING! PLASTIC CEMENTS AND PRIMERS CAN BE FLAMMABLE, POISONOUS OR BOTH. CLOSELY FOLLOW
CEMENT MANUFACTURER'S INSTRUCTIONS.
WARNING! FALLING AND TRIPPING HAZARD. THE DECK LID MUST BE INSTALLED FLUSH WITH THE DECK
LEVEL.
877-768-2717
P
877-276-POOL info@aquastarpoolproducts.com
F
Table 1: Skimmers Required Per Square Foot Area
Facility Type
Public Pool
Residential Pool
Public and Residential Spa
Example: A public pool that is 1000 sq. ft. requires at least two skimmers.
www.aquastarpoolproducts.com
Area Per Skimmer
(sq. ft.)
500
800
150
