Comelit Venice 6814B Technical Manual

Venice
6814B, 6814W
T E C H N I C A L M A N U A L

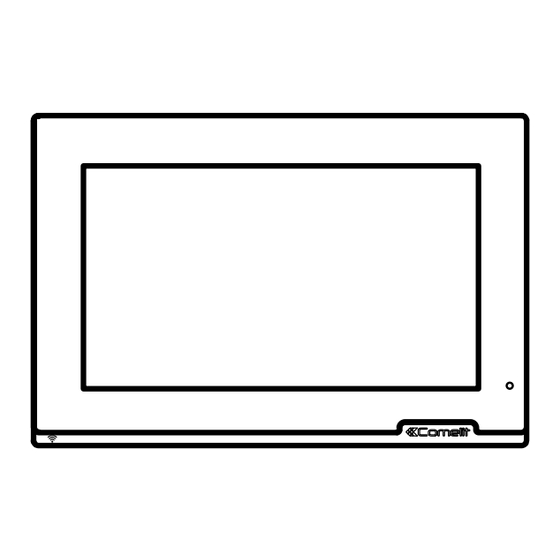

Venice door entry monitor
ViP system
Colour door entry monitor Venice for ViP system with
7" capacitive touch screen, resolution 1024x600,
fullduplex hands-free audio and SPOE power supply.
Allows adjustment of the colour level, contrast, audio
and ringtone volume. It is possible to customize the
ringtone by choosing between different melodies.
Equipped as standard with door release functions,
audio enable/disable button, self activation, silent
mode and other programmable functions. Manages
landing calls and call repetition as standard.
Compatible with H.264 video format.
Technical specifications
GENERAL DATA
Product height (mm) 130
Product width (mm) 194
Product depth (mm) 15,9
Product color White or Black
Material Plastic
Wall-mounted Yes
DISPLAY FEATURES
Size (inches) 7
Aspect Ratio 16:9
Touch screen Yes, capacitive
Resolution (pixels) 1024x600
OSD menu Yes
Type of display LCD
AUDIO FEATURES
Tech. implemented Full-Duplex
NETWORK AND COMMUNICATION PROTOCOLS
Type of LAN network Ethernet 10/100 Mbit/s
IP address assignment DHCP, AUTO IP, static IP
Operating system Linux embedded
HARDWARE FEATURES
Number of inputs 4
Communication ports RJ45 (Ethernet)
Ethernet ports 1
Network connection RJ45
Type of connections/ports 1xEthernet 10/100 Mbit/s
Video encoding H.264
ELECTRICAL CHARACTERISTICS
Type of power supply PoE, External power supply
Supply voltage 18-24 VDC
Supply voltage
with art. POESPLITTER
PoE power supply SPoE (24 VDC)
Absorption in stand-by 2,5 Watt
Maximum absorption 4,5 Watt
SETTINGS
Loudspeaker volume Yes
Microphone volume Yes
Ringtone volume Yes
Screen brightness Yes
Screen contrast Yes
Screen colour Yes
Screen backlight Yes
ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection degree IP30
Operating temperature -20° ÷ 55°
Operating humidity (RH max) 10% ÷ 95%
Environmental class IV
Compliance and
Certifications
12 VDC (max 1mt)
RoHS II - 2011/65/UE (EN
50581:2012), EMC 2014/30/
UE (EN 61000-6-1:2007, EN
61000-6-3:2007+A1:2011)
