HMS Networks Anybus AWB3015-B Quick Manual

Wireless Bridge II Serial Connector and Cable Installation
Before You Begin
IMPORTANT
This document does not include the complete instructions for the safe use of the Bridge II Serial. Ensure
that you have read and understood the safety instructions in the Bridge II Serial user documentation
before proceeding.
IMPORTANT
Connecting power with reverse polarity or using the wrong type of power supply may damage the
equipment. Make sure that the power supply is connected correctly and of the recommended type.

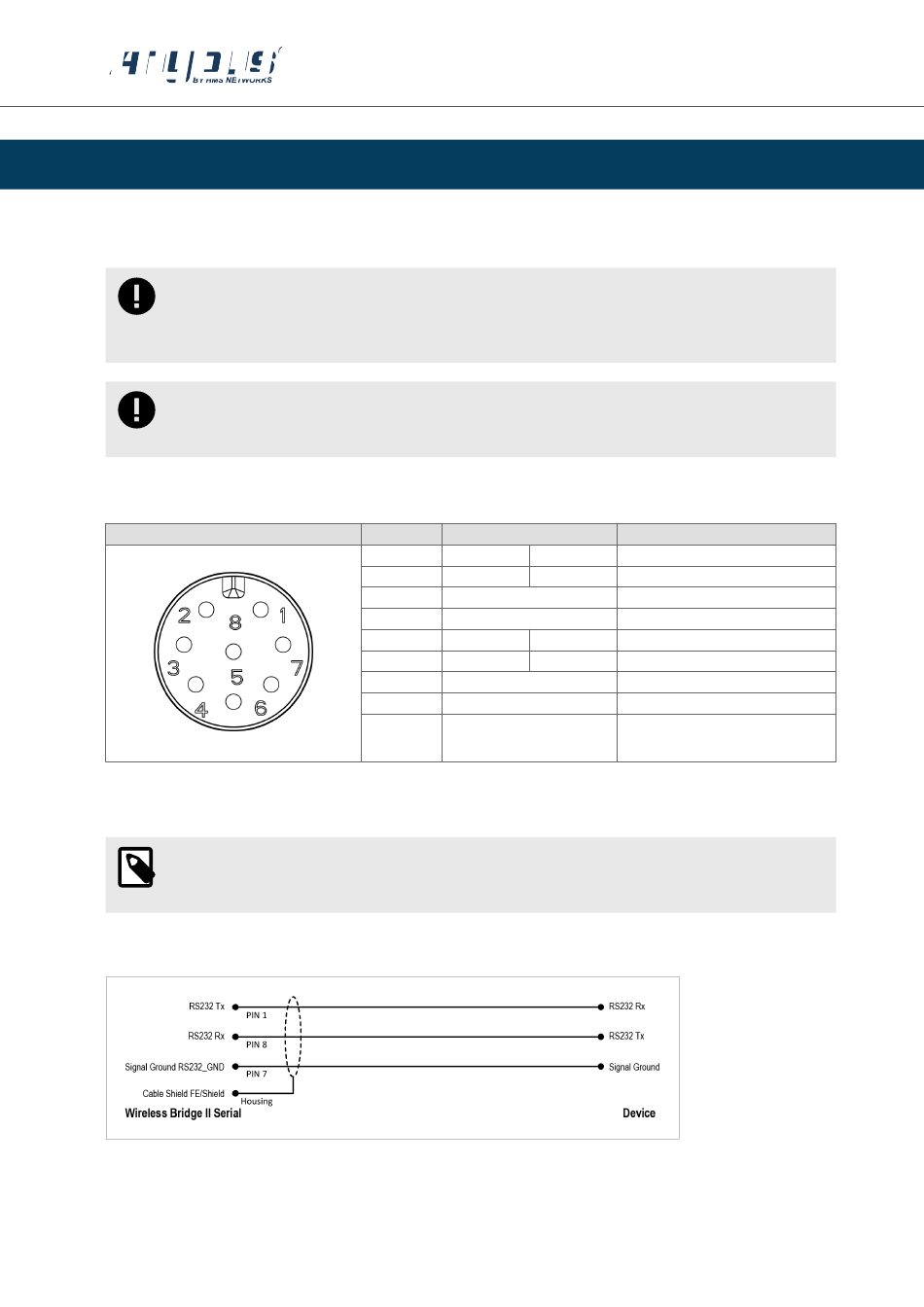

Serial and Power Connector Pinout
Shielded 8-pos A-coded M12 male connector
RS232/RS422/RS485 Electrical Connection
NOTE
A and B marking differs between different devices, in this product A is TX-/RX- or D- and B is TX+/RX+ or
D+.
RS232 Typical Connection
© 2022 HMS Networks
SP3019 / 1.1 / 2022-02-23
Wireless Bridge II Serial™ Connector and Cable - Quick Guide
Pin Wire Color
1 WH (White) BU (Blue)
2 WH (White) BN (Brown)
3 BN (Brown)
4 OG (Orange)
5 WH (White) GN (Green)
6 WH (White) OG (Orange)
7 BU (Blue)
8 GN (Green)
Housing N/A
Function
RS-232 TX
Power 24 V
Power GND
RS-422_TX_A, RS485_A
RS-422_RX_B
RS-422_TX_B, RS485_B
Signal GND
RS-422_RX_A, RS-232_RX
Acts as product FE (Functional Earth) when
the cable shield is connected to FE.
