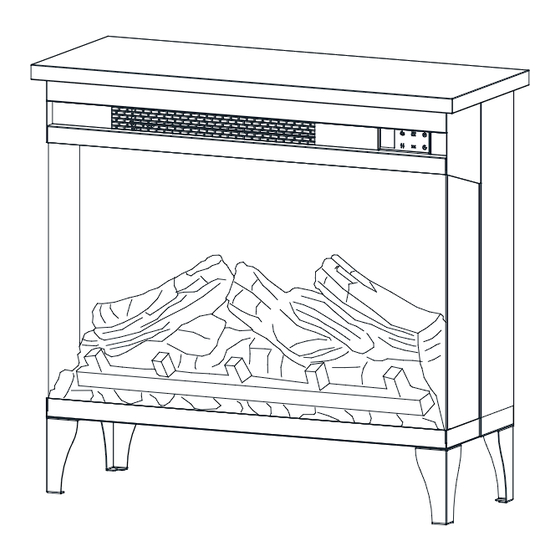

ELECTRIC FIREPLACE
HOMEOWNERS OPERATING MANUAL
MODEL: 2322-L-T1
261046
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2322-L-T1 and is the answer not in the manual?

Questions and answers

Summary of Contents for LOWES 2322-L-T1

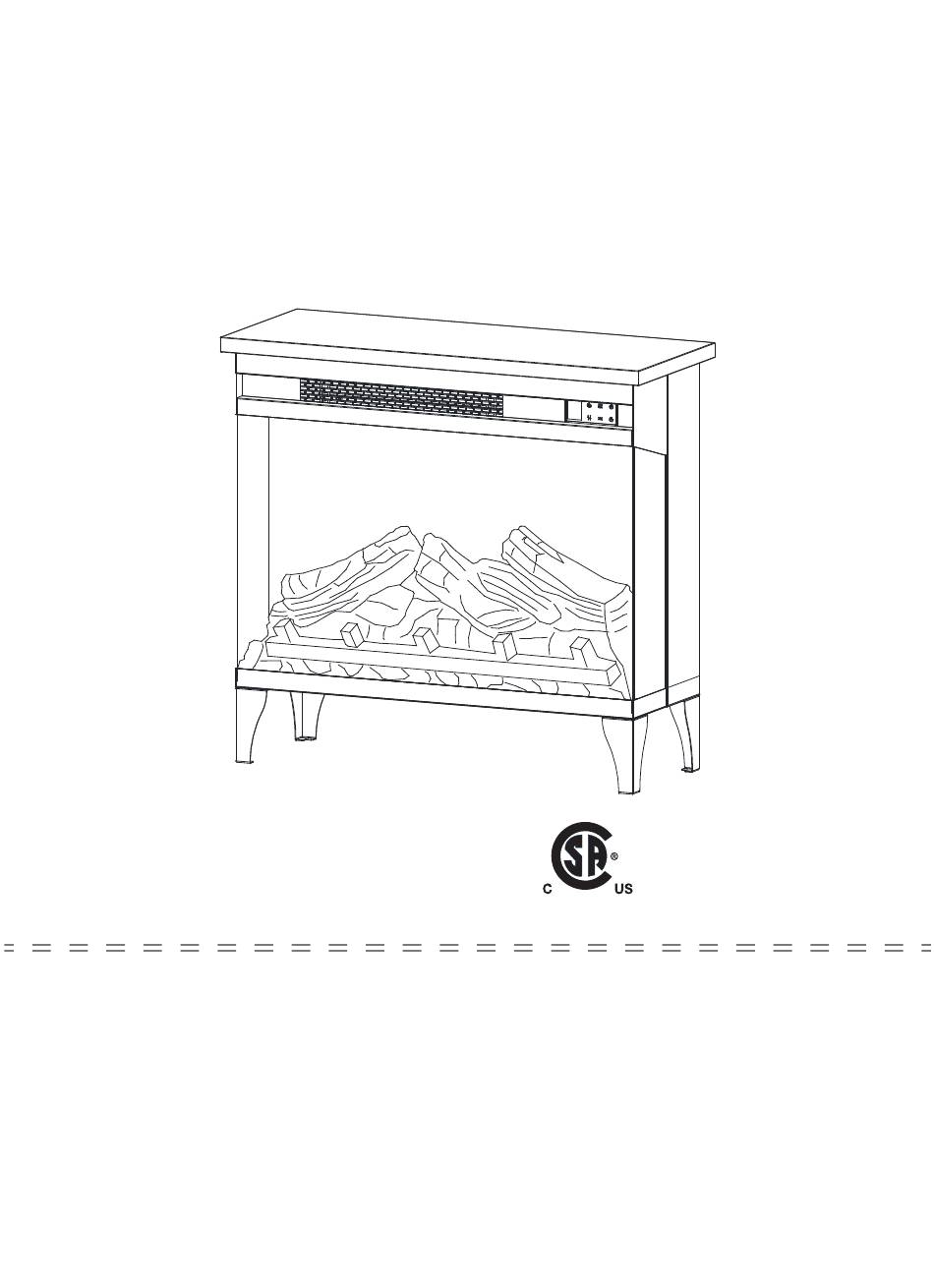

  • Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL MODEL: 2322-L-T1 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, curtains etc., at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
  • Page 3: Package Contents

    PACKAGE CONTENTS Base support Fireplace 8 screws Remote Control Manual ELECTRICAL SPECIFICATIONS Voltage: 120VAC 60Hz Watts: 1500 Watts GROUNDING INSTRUCTIONS: Figure 2 This heater is for use on 120 volts. The cord has a plug as shown at (A) in figure 2. An adapter as shown at (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles.
  • Page 4: Installation

    INSTALLATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING: Do not install unit on shelves, raised platforms, beds, blankets, pillows etc. Keep combustible materials such as furniture, bedding, papers, clothes and curtains at least 3 feet (914 mm) from the stove.
  • Page 5 Do not share a socket with other appliances when using the electric fireplace. Please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
  • Page 6 OPERATING INSTRUCTIONS On the top-right of the fireplace is the touchscreen control panel. This panel contains the buttons to properly operate the electric fireplace. To control the fireplace, touch any button to wake up the control panel. The power button will flash, and other buttons will light up.
  • Page 7: Remote Control

    Lock and Unlock Heater Function: Press and hold the heater button for 10 seconds. The ember bed will flash 6 times, indicating that the heater function is locked. To unlock the heater function, press and hold the heater button for 10 seconds. The ember bed will flash 6 times, indicating the heater function is unlocked.
  • Page 8: Battery Replacement

    BATTERY REPLACEMENT The battery compartment is located on the back end of the remote control. 1. Press and slide the battery cover open. 2. Insert two 1.5V (AAA) batteries ensuring they are installed correctly with regard to the polarities (+ and -) marked on the inside of the battery compartment. 3.
  • Page 9: Maintenance

    MAINTENANCE Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores. The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication.
  • Page 10: Troubleshooting

    TROUBLE SHOOTING Fault code Fault Cause Solution Heater is overheating Contact customer service Turn the unit off and unplug it from the electrical Heater is not working outlet. Check for dirty or clogged vents. Clean the dust and debris from the vent area. Wait 5 minutes, plug in the fireplace, and then turn it back on.
  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installa- tion and operating instructions furnished with the product.
