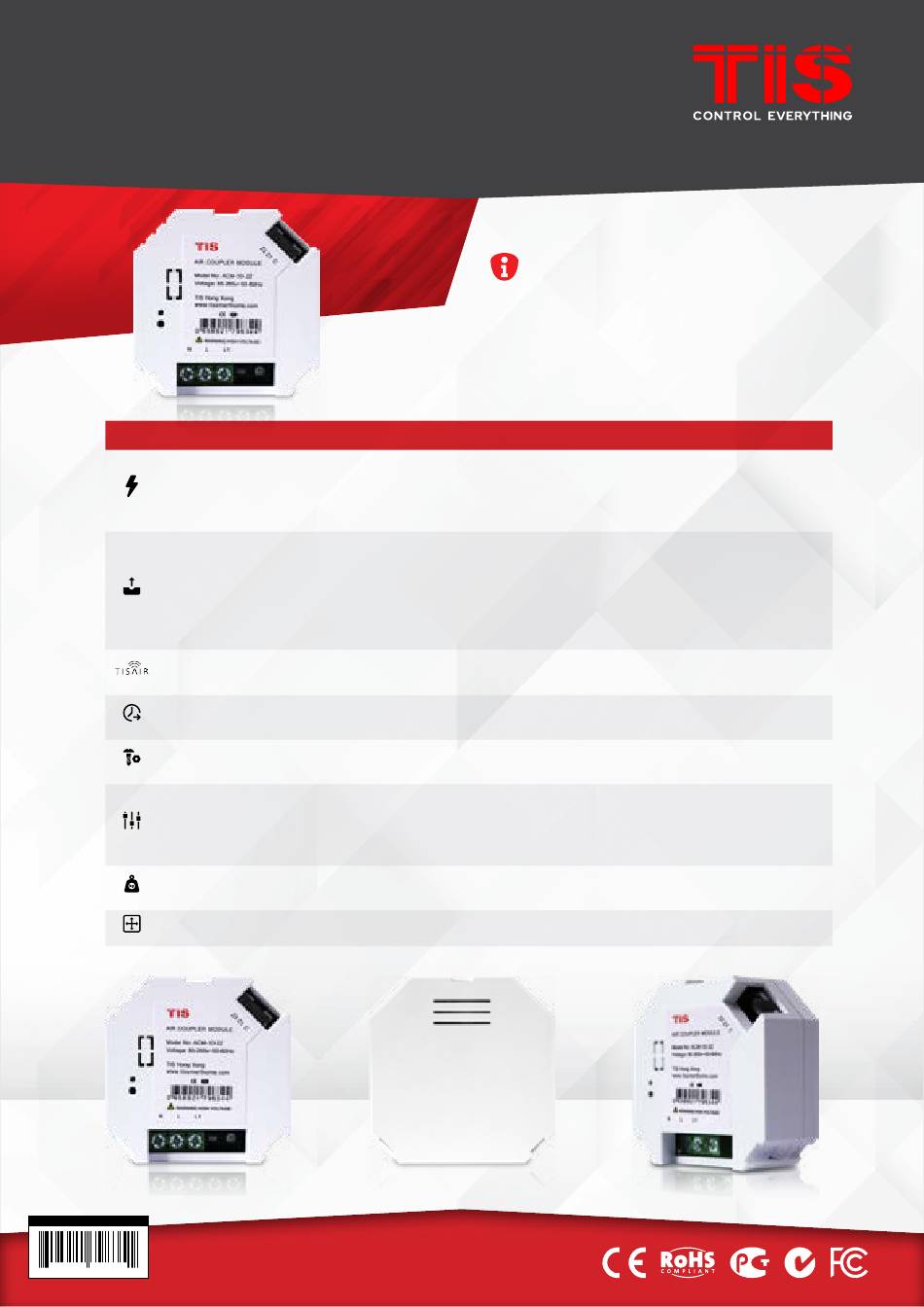

INSTALLATION MANUAL
WIRELESS ACM RELAY
WI-FI SINGLE INPUT CONTROLLER
Model: ACM-1D-2Z
Power supply
Output
TIS AIR
Reaction time
Mounting
Operation
Weight
Dimensions
BARCODE (UPC-A)
6
58921
79635
1
This product is a Wi-Fi enabled universal dimmer
module with remote control capability over the
internet via the TIS App. It features dry input(s)
particularly designed to be coupled with any push-
button wall switch for smart lights control.
P R O D U C T S P E C I F I C AT I O N S
Input voltage
Output power
Protection
Current consumption
Number of channels
Nominal voltage
Nominal current per channel
Lighting incandescent lamp
LED (dimmable)
CFL (dimmable)
WIFI signal
Protocol standard
Free locate
Digital inputs
TIS AIR
PRG button with LED
Upgrading
Without packaging
(Width × Length × Height)
PRODUCT INFORMATION
110-230 VAC 50/60 Hz
3W / 12V
Internal protection fuse
10-20 mA / 12 V DC
1
110 / 230 V AC 50/60 Hz
500 Watts
300 Watts
300 Watts
2.4 GHz
802.11 b/g/n
approx. 30ms
Can be installed anywhere
2 dry inputs for lights control
TIS protocol messages & commands
For Programming
Over WIFI connection
10g
20mm × 49mm × 49mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TIS ACM-1D-2Z
Summary of Contents for TIS ACM-1D-2Z
- Page 1 PRODUCT INFORMATION This product is a Wi-Fi enabled universal dimmer module with remote control capability over the internet via the TIS App. It features dry input(s) particularly designed to be coupled with any push- button wall switch for smart lights control.
-
Page 2: Safety Instructions
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... -
Page 3: Installation Steps
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... - Page 4 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 5 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 6 Model: ACM-1D-2Z SERVER LINKING In order for a project to be fully linked to the TIS server, server configuration must be enabled in just 1 product within that project. If you have already done that with any other panel, just ignore these steps and proceed to configuration steps.
- Page 7 INSTALLATION MANUAL WIRELESS ACM RELAY Model: ACM-1D-2Z SERVER LINKING On the TIS app, press Search and wait for a few seconds. The panel will link to your Wi-Fi, and the PRG button will turn blue. Select your server option and 4-digit password.
-
Page 8: Configuration Steps
INSTALLATION MANUAL WIRELESS ACM RELAY Model: ACM-1D-2Z CONFIGURATION STEPS In the TIS App, go to the Settings Device Configuration, and follow the steps by entering your SSID password. On the module, press and hold the PRG button for 6 seconds. The PRG LED will start blinking. - Page 9 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 10 Model: ACM-1D-2Z PAIRING (MANUAL PROGRAMMING) To pair the TIS ACM module with any TIS wall panel buttons, do the following: Short press on the PRG button five times in a row until the PRG LED starts to blink every 2 seconds.
-
Page 11: User Operation
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... -
Page 12: Troubleshooting
WIRELESS ACM RELAY Model: ACM-1D-2Z TROUBLESHOOTING Reason: The panel address conflicts with another device in the TIS network. You need to press and PRG button blinks purple hold the PRG button for 6 seconds so that the color rapidly module can get a new address.
