TIS VLC-12CH-10A Installation Manual

INSTALLATION MANUAL
TIS POWER RELAY
12 Channels 10 Amps
Model: VLC-12CH-10A
Output Switching Voltage
Output switching current
TIS Bus``
Operation
Functions
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79820 1

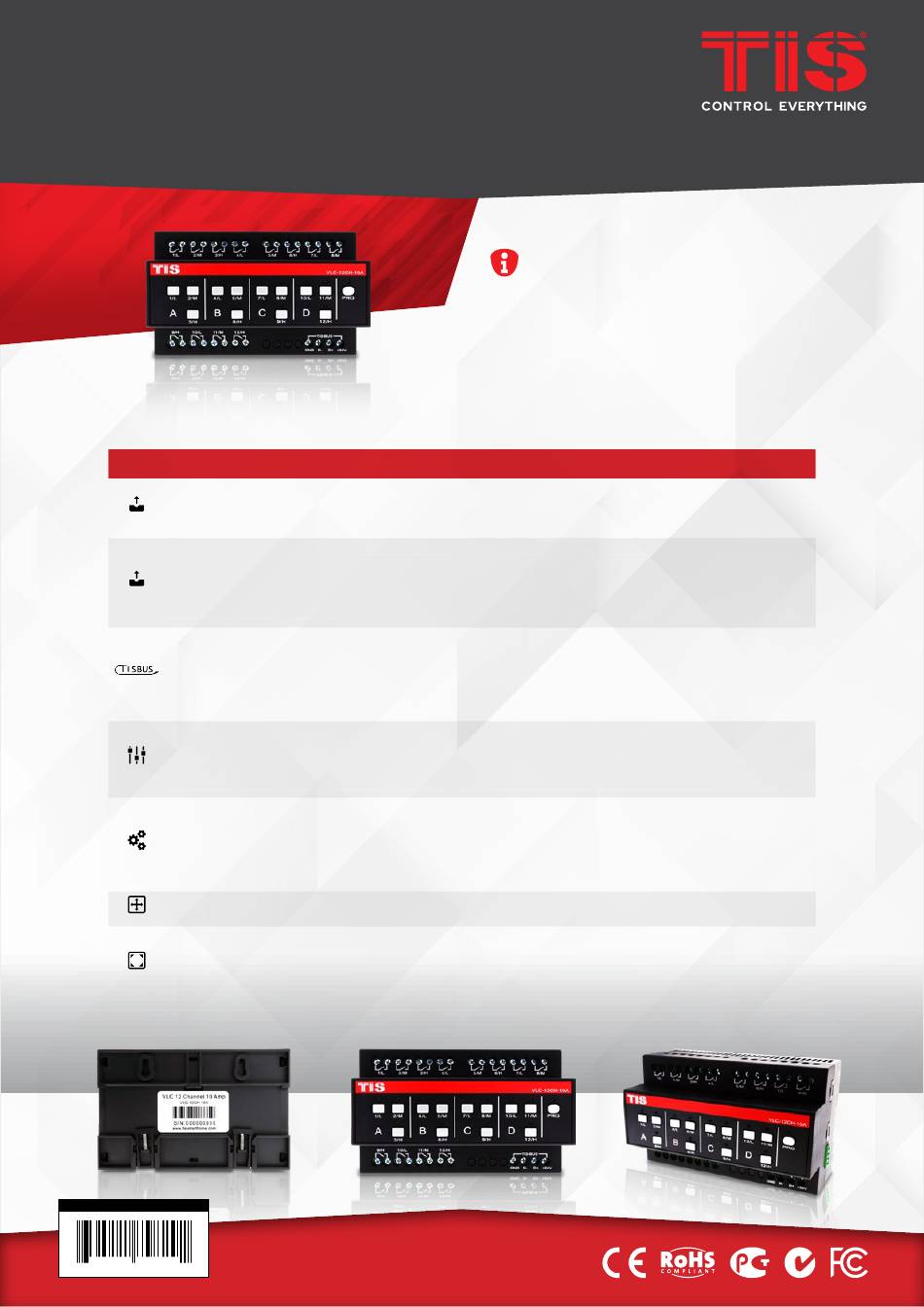

This product is a power relay switch with
electromagnet for lights' turn ON/OFF or motors'
Open/Close function. It enables smart control over
lights, sprinklers, gates, shutters and curtains, fan
speed, valves, etc. and is ideal for residential and
industrial applications.
P R O D U C T S P E C I F I C AT I O N S
Number of channels
Nominal voltage
Max switching voltage
Nominal current per channel
Maximum total channel load
Max switching current
Max continuous current
Number of devices on 1 line
Bus voltage
Current consumption (Normal)
Current consumption (operation)
Protection
Programming button/LED
1-12 buttons
By TIS bus
Programming
Lighting control ON/OFF
Curtain control
Fan speed control
Scenes
Sequences
Width × Length × Height
Materials
Casing color
Button color
IP rating
PRODUCT INFORMATION
12
0 – 230 V AC 50/60 Hz
440VAC / 125VDC
10 A
120 A
16A resistive
8A florescent
10A VAC
Max. 64
12-32 V DC
<15 mA / 24 V DC
<140 mA / 24 V DC
Reverse polarity protection
For assignment of the physical address
Manual ON/OFF & programming
TIS protocol messages & commands
Manual & via software
12 separately controllable channels
Can set 6 groups of curtains (open/close)
Can set 4 groups of fans (low, med, high)
12 different scenarios
12 different sequences
75mm × 145mm × 91mm
Fireproof ABS
Black
Silver
IP 20
