Dali SUITE Brochure

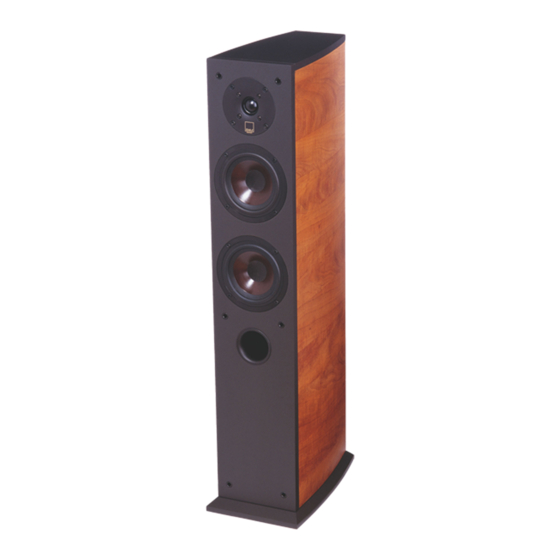

Suite 1.7 Suite 2.8 Suite C0.7 Suite C0.8 Suite R0.7
Frequency response (Hz) 42-25.000 37-25.000 57-25.000 49-25.000 70-25.000
Crossover frequency (Hz) 2.200 2.900 2.400 2.600 2.100
Sensitivity (2,83V/1m.) dB 89,0 90,0 90,0 91,0 86,0
Nominal impedance 4,0 4,0 4,0 4,0 8,0
Minimum impedance 3,4/210 Hz 3,5/205 Hz 3,5/200 Hz 3,6/190 Hz 6,4/240 Hz
Maksimum SPL dB 109 111 111 112 105
Recommended amp. power 8 Ohm 40-160 W 30-160 W 30-150 W 30-160 W 25-80 W
High frequency driver 1 x 1" 1 x 1" 1 x 1" 1 x 1" 1 x 1"
Low/midrange drivers 2 x 5" 2 x 61⁄2" 2 x 5" 2 x 61⁄2" 1 x 5"
Bass reflex system resonance (Hz) 45,0 40,0 41,0 38,5 Sealed
Dimensions H x W x D (cm) 88 x 17 x 31 105 x 20 x 36 16 x 56 x 32 19 x 66 x 39 33 x 24 x 14
Dimensions H x W x D (inch.) 35.2 x 6.8 x 12.4 42.0 x 8.0 x 14.4 6.4 x 22.4 x 12.8 7.6 x 26.4 x 15.6 13.2 x 9.6 x 5.6
Weight (kg/lbs) 14,0/31.0 20,7/45.75 9.4/20.75 13,2/29.20 4,3/9.50
Amplifier
Inputs
Power consumption
Controls
Design principle
Finish Golden Cherry Golden Cherry Golden Cherry Golden Cherry Golden Cherry
and Silver and Silver and Silver and Silver and Silver and Silver and Silver
Based in Denmark with strong traditions in engineering and furniture design, DALI
®
rapidly grew to become an internationally acclaimed loudspeaker maker, praised enthu-
siastically by proud owners and by independent audio journals around the world. The
millions of fine loudspeakers sold by DALI to satisfied customers in over 36 countries
®
are the result of rare levels of enthusiasm, skill, advanced technology and pure inspira-
tion.
Each DALI loudspeaker is carefully assembled, tested and packed by a conscientious
®
team who are personally accountable for the final result. Well into our third decade,
DALI embodies a unique blend of cutting edge technologies and fine Scandinavian
®
craftmanship. For more information, pleas visit our website at www.dali.dk
Suite R0.8 Suite S1.2
57-25.000 29-200
2.000
88,0
8,0
5,7/6.000 Hz
108 111
25-100 W
1 x 1"
1 x 61⁄2" 1 x 12" air-dried pulp cone
Sealed
40 x 29 x 17 41 x 38 x 42
16.0 x 11.6 x 6.8 16.4 x 15.2 x 16.8
5,6/12.40 22,0/49.0
200 Watt RMS
Stereo line signal input RCA phono, input impedance 22kOhm
LFE Line signal input RCA phono, input impedance 22kOhm
230 VAC, 50-60 Hz
Volume level, lowpass crossover 50-170 Hz, phase (0 or 180º)
Active, bulit-in amplifier and crossover, sealed enclosure
Golden Cherry Golden Cherry
and Silver and Silver and Silver
