Atollspeed Touch Screen 300T plus Planning Information

Planning information for Atollspeed Highspeed Oven
Atollspeed 300T plus Touch Screen Series
Danger to life due to electrical shock
• There is high voltage that is hazardous to life inside the oven.
> Never open the housing.
> Never loosen the screws, and do not remove any housing parts.
Conditions for use and installation
• In the event of failure to comply with maintenance information and the
specifications in the Technical Data chapter, no liability is accepted for any resultant
damage.
> Follow the operation manual.
> Maintenance and repair work may be performed only by licensed service personnel,
using original spare parts.
2
5

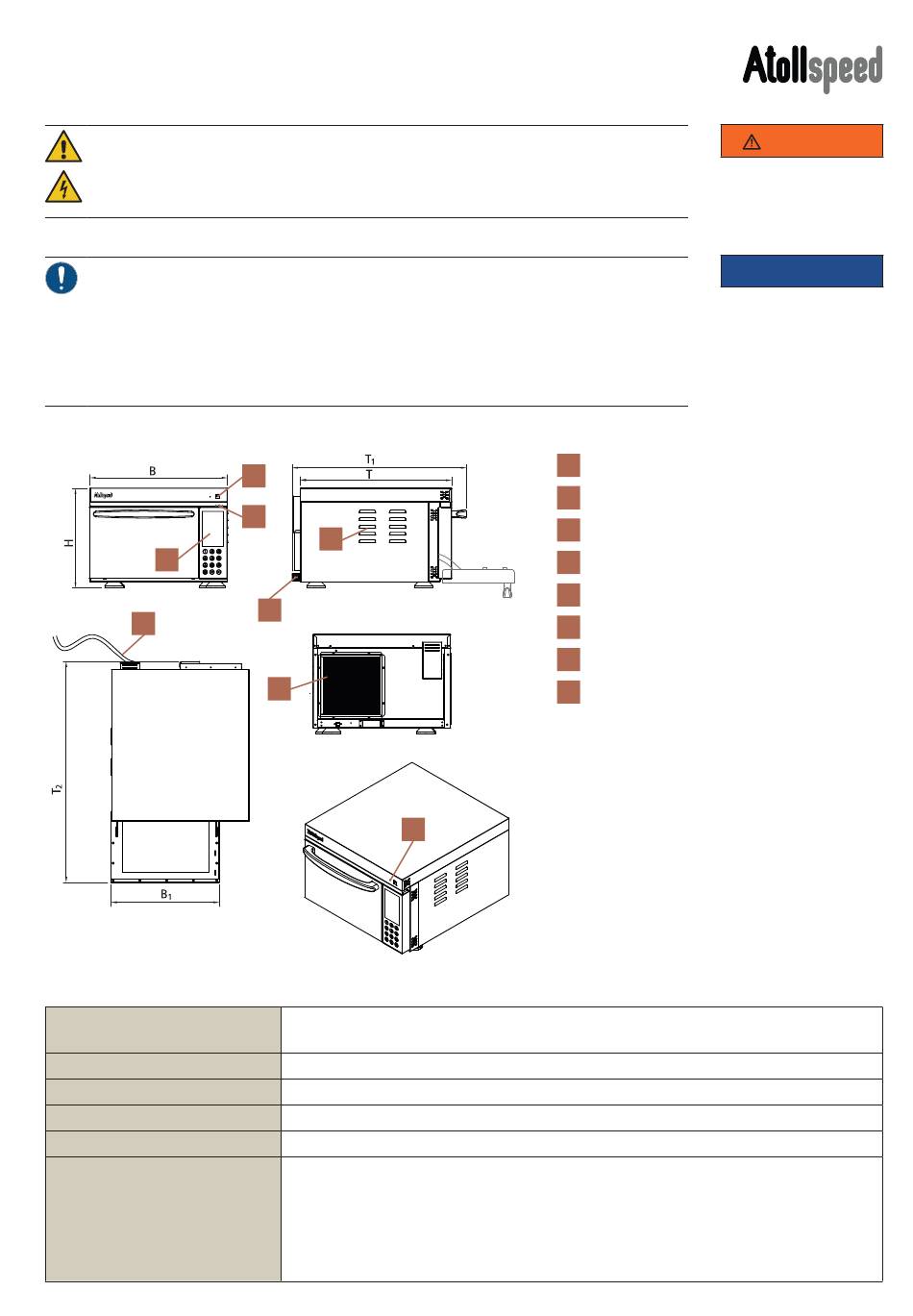

Dimensions and weight
when empty
Dimensions
With door open
Baking chamber
Weight
Installation clearance
Atollspeed GmbH | Gewerbepark Objekt 16 | Fabriksplatz 1 | A-4662 Steyrermühl (Austria) | www.atollspeed.eu
1
3
4
5
7
8
300T plus
Width B 600 mm; Depth T
Width B 600 mm; Depth T
Width 335 mm; Depth 320 mm; Height 170 mm
75 kg
If the oven is set up in a niche in a wall, the following minimum clearance
distances from any adjacent walls, devices, or equipment must be maintained:
Left side 50 mm; right side 50 mm; back side 70 mm; top side 100 mm.
All adjacent walls must be sufficient resistant to temperature and flame-retardant.
A maximum of two AS300T units can be stacked, or one convection oven (models
available on request) on one AS300T unit with special accessories (on request).
1
USB connection
2
Touch display
3
Thermal limiter
4
Ventilation slits
5
Infeed
6
Exhaust opening (do not cover)
7
Filter
8
Reset button
762 mm; Depth T = 661; Height H 435 mm
1
966 mm; Height H 435 mm
2
WARNING
Follow the Safety chapter
w Operation manual
ATTENTION
Observe technical data
w Operation manual
Observe maintenance
information
w Operation manual
P. 1/2
