Summary of Contents for Metalicon Levo

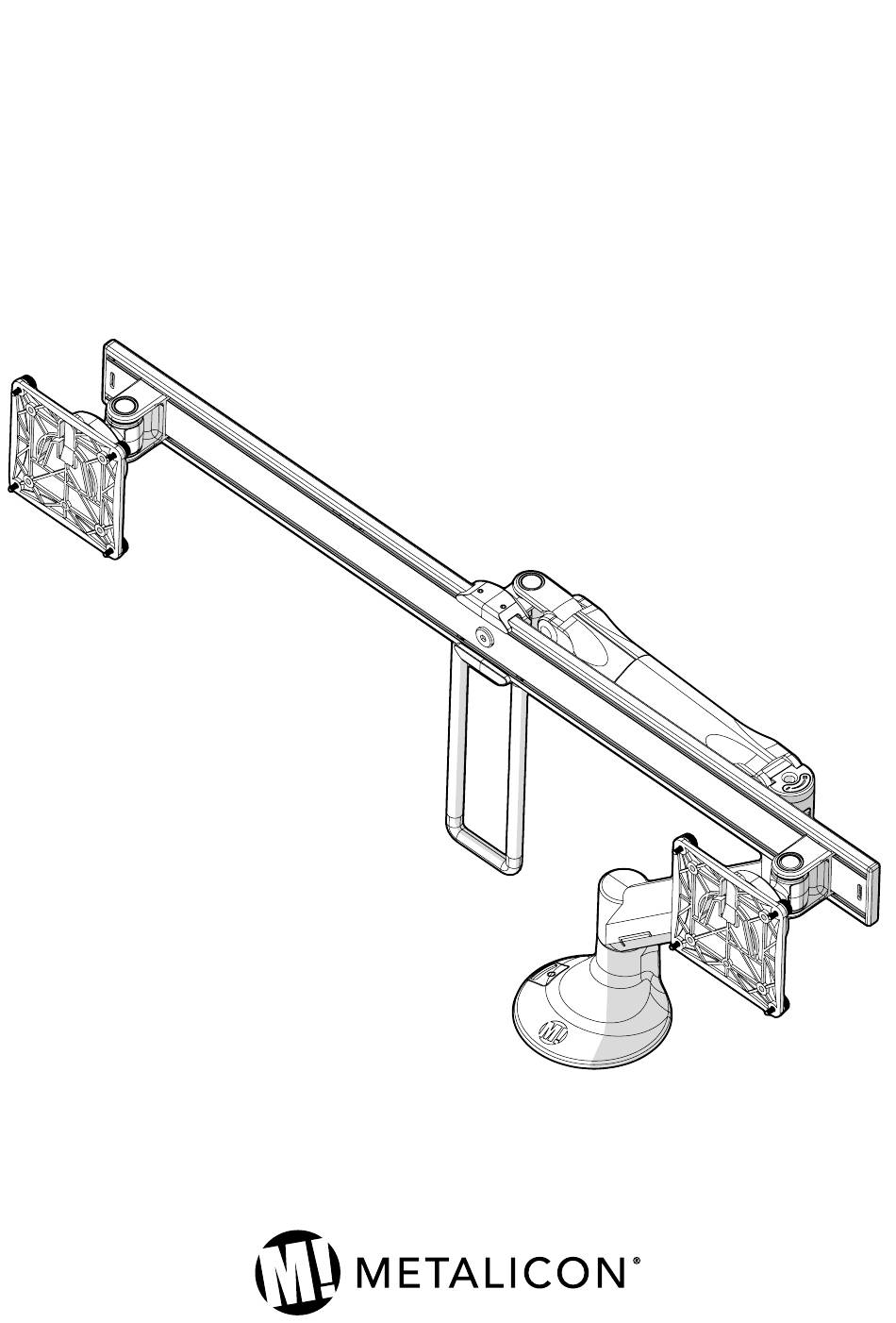

- Page 1 Levo Twin Rail ASSEMBLY & ADJUSTMENT INSTRUCTIONS...
- Page 2 IN THE BOX Install the Levo monitor arm following separate instructions (steps 1-3). Remove VESA head from Levo monitor arm. Now rotate the VESA head through Next push the connector pin up 90º (A) to allow you to pull the and out of the joint (C).
- Page 3 Fix adjustment handle Attach twin rail to arm To attach the rail handle twist both Now push the centre twin rail joint Next push the connector pin down uprights clockwise at the same time. inside the empty arm joint and align through the holes (B).
- Page 4 Fix VESA plates to monitors VESA head tension adjustment Fix a VESA plate to the back of If the monitor is drooping or can’t each monitor using 4 hand-turn be tilted easily, you can adjust the fixing bolts. The plate is compatible tension of the VESA head.
- Page 5 Find these instructions plus video guides online: metalicon.com/install/levo +44 (0)1502 533 444 support@metalicon.com metalicon.com...
