Metalicon PMA326 Installation Instructions Manual

Pole arm for 6 monitors

Advertisement

Quick Links

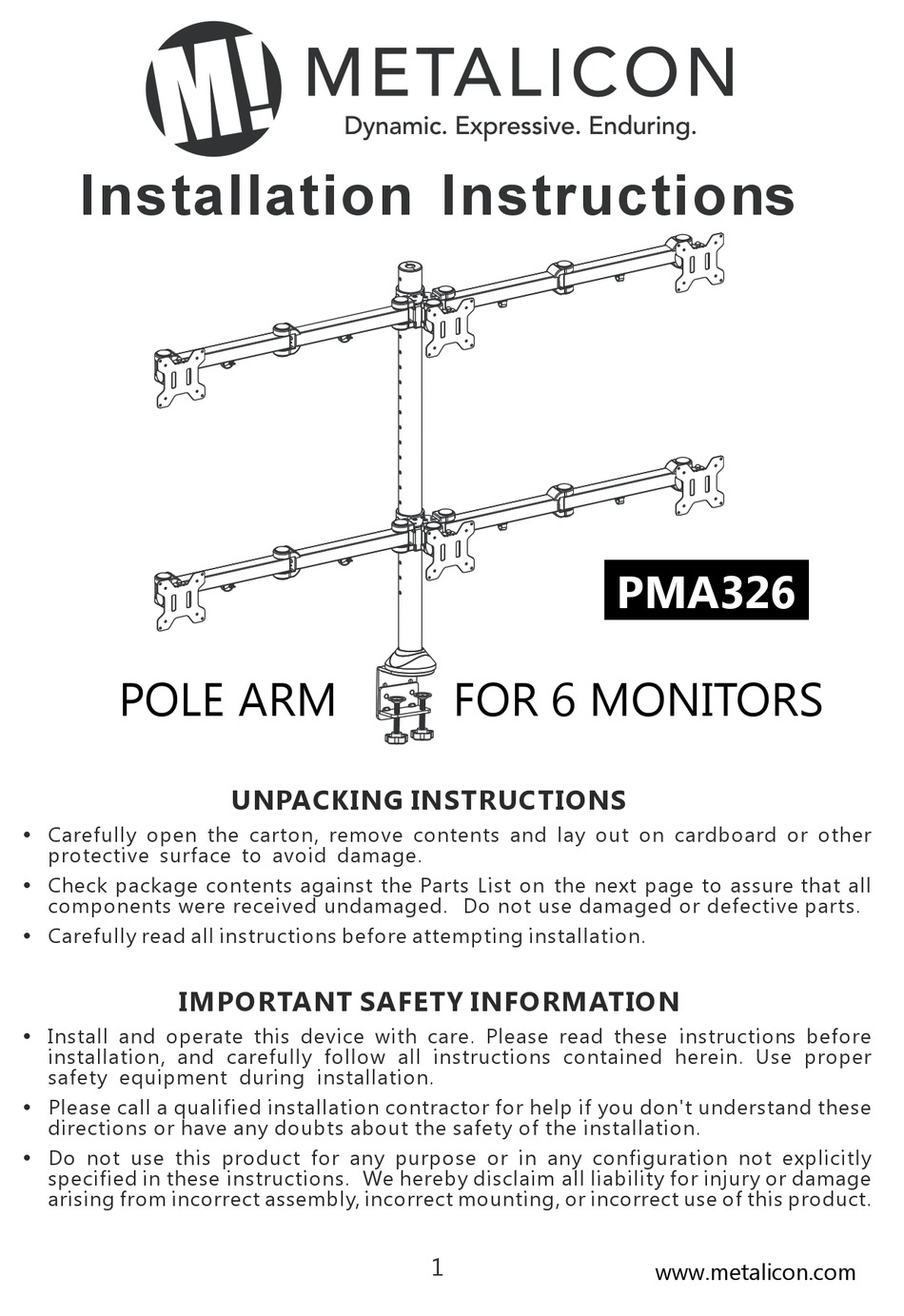

Installation Instructions
POLE ARM
Ÿ Carefully open the carton, remove contents and lay out on cardboard or other
protective surface to avoid damage.
Ÿ Check package contents against the Parts List on the next page to assure that all
components were received undamaged. Do not use damaged or defective parts.
Ÿ Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

Ÿ Install and operate this device with care. Please read these instructions before
installation, and carefully follow all instructions contained herein. Use proper
safety equipment during installation.
Ÿ Please call a qualified installation contractor for help if you don't understand these
directions or have any doubts about the safety of the installation.
Ÿ Do not use this product for any purpose or in any configuration not explicitly
specified in these instructions. We hereby disclaim all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

FOR 6 MONITORS
1
PMA326
www.metalicon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA326 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metalicon PMA326

  • Page 1 Installation Instructions PMA326 POLE ARM FOR 6 MONITORS UNPACKING INSTRUCTIONS Ÿ Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Ÿ Check package contents against the Parts List on the next page to assure that all components were received undamaged.
  • Page 2 Parts List (1)Pole-a (2)Monitor Arm-b (6)VESA Plate-c (6)Nut-d (1)Grommet Plate-e (1)M10 Bolt-f (1)M10 Washer-g (1)Spring Washer-h (3)C-clamp (1) C-clamp-i (1) C-clamp Brace-j (2)M10x15 Bolt-k Brace Bolt-l (24)M4x12 (1)Decorative Cover-m (8)M8x10 Bolt-n (24)M4x30 Bolt-p Thumb Bolt-o (2)Spare Plastic (24)M4 Space-q (1)Allen Key-r (1)Wrench-s Cover-t CAUTION!
  • Page 3 C-clamp Installation Step 1A 1. Install the C-clamp Brace (j) to the pole (a) using 3pcs C-clamp Brace Bolts (l), see Figure 1. 2. Install the C-clamp (i) to the pole assembly according to the thickness of the desktop. The thickness can be changed in three positions. Connect it using 2pcs M10x15 Bolts (k), and tighten using the Allen Key (r).
  • Page 4 Step 1C Drilled Grommet Hole Installation 1. Position the Pole (a) on the mounting surface and mark the center hole. Remove the pole. Drill a 10mm diameter hole at the marked position through the mounting surface. 2. Position the Pole (a) on the mounting surface and secure using the Grommet Plate (e), M10 Washer (g), Spring Washer (h) and M10 Bolt (f).
  • Page 5 Step 3 Attach the VESA Plate to the Monitor For Monitor with Flat Back Monitor with Curved Use the hand turn screws (o) to secure Recessed Back Use the plastic spacers the VESA plate directly to the monitor. (q) and the longer screws (p) to secure the VESA plate to the monitor.
  • Page 6 Adjust the Tilt Angle and Arms Torque Step 5 Adjust the tilt angle tension Remove the plastic cover, tighten Remove the plastic cover, adjust the nut with the wrench (s) to the to rq ue o f A rm s (b) wi th adjust the tilt angle tension.
