BEFORE YOU BEGIN
HOW TO USE THESE INSTRUCTIONS
All information in these instructions is based on the latest
product information available at the time of publication.
Kohler Co. reserves the right to make changes in product
characteristics, packaging, or availability at any time
without notice.
NOTES
S
Drain shroud conceals drain for console tables.
S
Shut off the main water supply.
S
Observe all local plumbing codes.

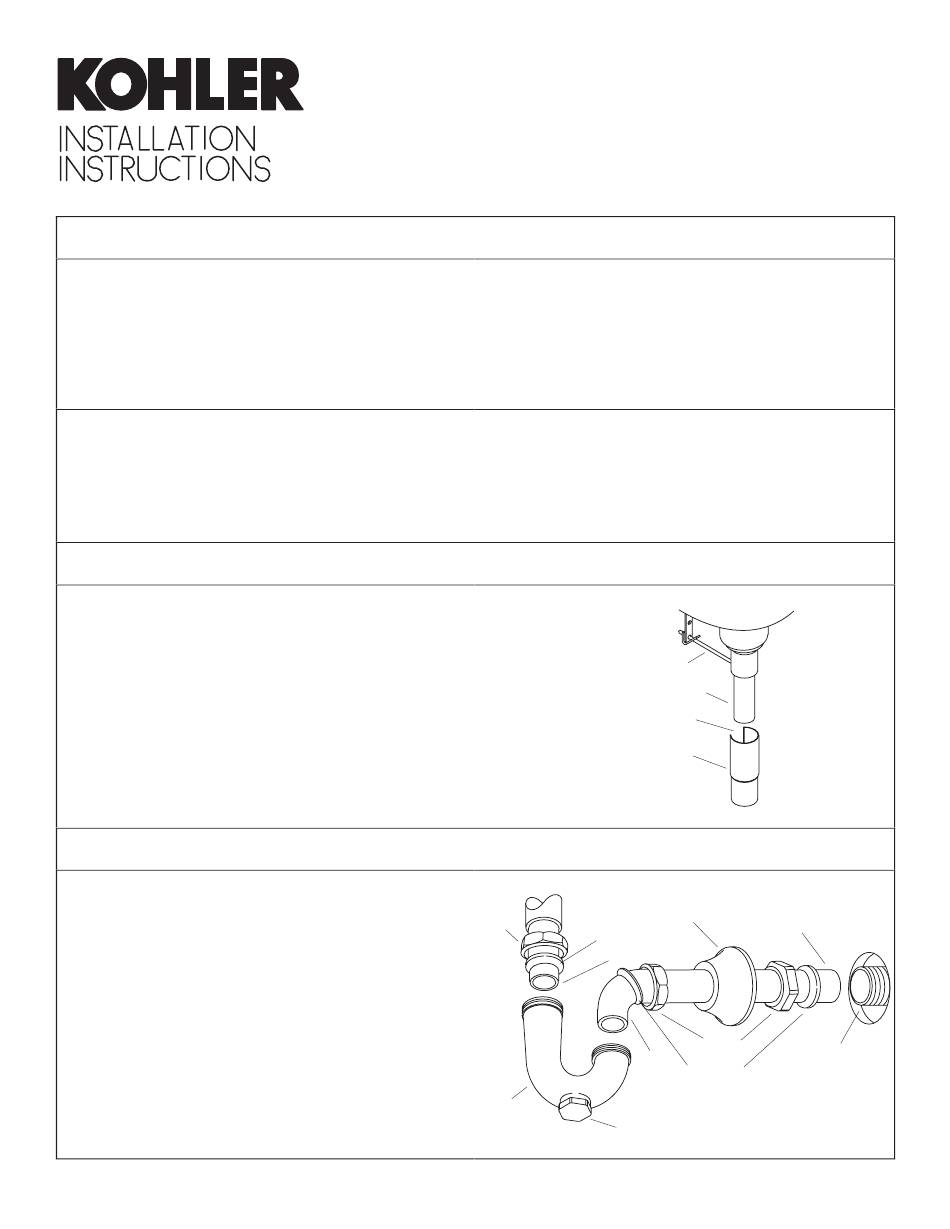

DRAIN SHROUD INSTALLATION
Install pop-up drain per manufactures instructions.
Slide drain shroud with slot facing toward the back, up
over tailpiece and around ball lever rod, until contact with
locknut on pop-up drain.
At this point, p-trap must be installed to hold drain shroud
in position.
P-TRAP INSTALLATIONS
K-9018 with 1-1/4" O.D. inlet, and 1-1/4" O.D. outlet.
Intended for console table installations.
Insert tube into drain outlet and connect with nut and
gasket (not supplied). Slide flange back to wall, to cover
the drain outlet.
Place trap nut and gasket onto tailpiece. Slide trap over
tailpiece and tube elbow. Tailpiece must extend 1" to 2"
into trap. Tailpiece may have to be cut to fit. Tighten nuts
and gaskets.
Cleanout plug is used to remove any debris which has
fallen into the trap.
AA
114233-2-
(9626)
DRAIN SHROUD AND P-TRAPS
R
Trap
REQUIRED TOOLS AND MATERIALS
S
Adjustable or open end wrench
S
Strap wrench
Ball Lever Rod
Tailpiece
Slot
Drain Shroud
Nut
Gasket
Tailpiece
Tube
Elbow
Cleanout Plug
Flange
Tube
Nut
Drain
Gasket
Outlet
