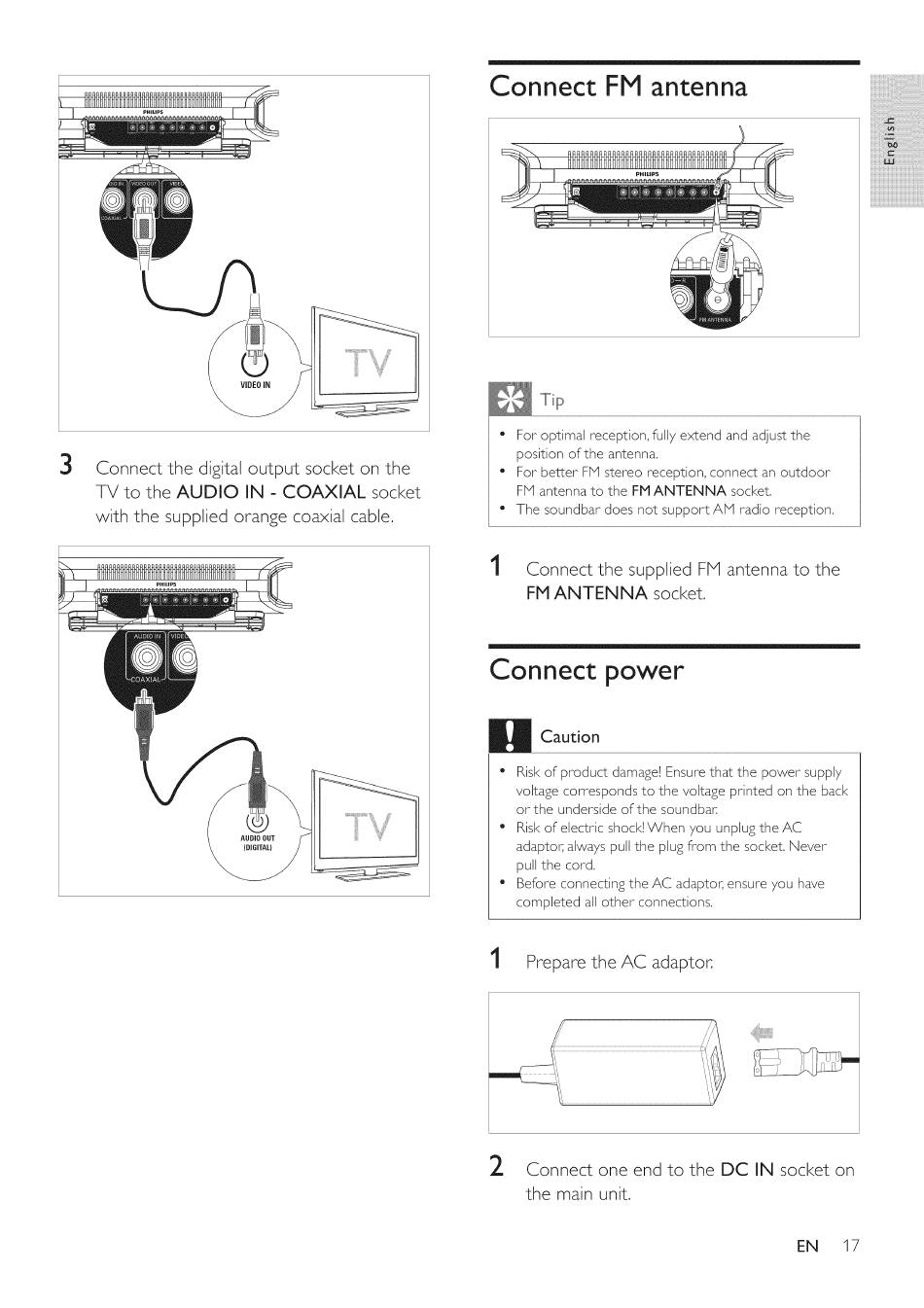

Connect the digital output socket on the
TV to the AUDIO IN - COAXIAL socket
with the supplied orange coaxial cable,
Connect FM antenna
* For optimal reception, fully extend and adjust the
position of the antenna.
* For better FM stereo reception, connect an outdoor
FM antenna to the FM ANTENNA socket.
* The soundbar does not support AM radio reception.
%1111 ili
5_{_i{{{{{{ _
_i_i_i_i_i_i_i_1_
iiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiii _
_i_i(i(i(i(i(i(i(i(i(
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
mmmmmmmmmmmmmmm
iiiiiiiiiiiiiiiiiiiiiiiiiiii _
1
Connect the supplied FM antenna to the
FM ANTENNA socket,
Connect power
Caution
* Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the soundbar.
" Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socl<et. Never
pull the cord.
" Before connecting the AC adaptor, ensure you have
completed all other connections.
1
Prepare the AC adaptor.
2
Connect one end to the DC IN socket on
the main unit.
