DFC-3000 Oil Drum Filtration System
Filtertechnik
1 Central Park, Lenton Lane, Nottingham, NG7 2NR
Tel:
+44 (0)115 9003 600
Email:
sales@filtertechnik.co.uk
User Manual
© Copyright 2017 Filtertechnik
Fax:
+44 (0)115 986 8875
Web:
www.filtertechnik.co.uk
July 2017
V1.00
Registered in England No: 03969985 VAT No: 760 821 731
Certification No. UK002838
Advertisement
Table of Contents
Related Manuals for Filtertechnik DFC-3000
Summary of Contents for Filtertechnik DFC-3000

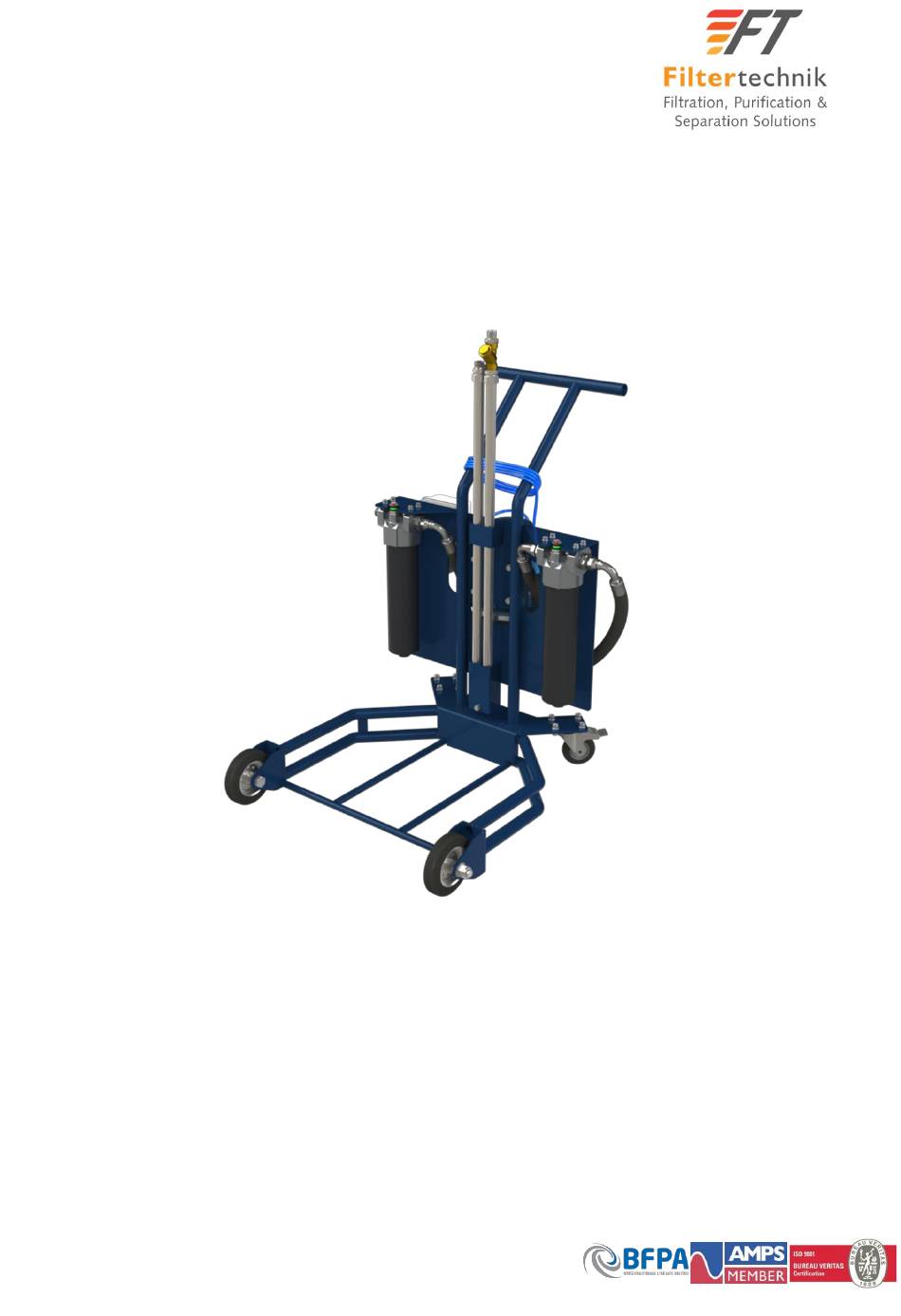

- Page 1 DFC-3000 Oil Drum Filtration System User Manual July 2017 V1.00 © Copyright 2017 Filtertechnik Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Tel: +44 (0)115 9003 600 Fax: +44 (0)115 986 8875 Email: sales@filtertechnik.co.uk Web: www.filtertechnik.co.uk Registered in England No: 03969985 VAT No: 760 821 731...
-
Page 3: Table Of Contents
Suction Strainer ............................. 11 Troubleshooting ............................ 12 Spare Parts List ............................13 Warranty Statement ..........................13 EC Declaration of Conformity ........................ 14 Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875 Tel: +44 (0)115 9003 600 Email: sales@filtertechnik.co.uk... -
Page 4: Specifications
Specifications Detail Specification DFC-3000-110- DFC-3000-110- DFC-3000-240- DFC-3000-240- Dimensions (w)620 mm x (d)510 mm x (h)1050 mm Weight 90 kg Frame Mild Steel Finish Powder Coated RAL 5004 (Black Blue) Satin Voltage 110 VAC (+10% to -6%) 240 VAC (+10% to -6%) -
Page 5: Typical Applications
• Ensure a spill kit is available in case of any accidental spills. • Used filters must be disposed of in accordance with local environmental requirements. Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875... -
Page 6: Basic Description
Basic Description The DFC-3000 portable filtration unit is a compact, self-contained filtration system, equipped with high efficiency, high capacity filter elements capable of removing particulate contaminants and/or water quickly, conveniently and economically. It is designed for on-site preventative maintenance and is fitted with two standpipes and hoses for efficient fluid transfer. The suction standpipe is fitted with a strainer to trap any large contaminants and protect the pump. -
Page 7: Achieving Iso Cleanliness Codes
Achieving ISO Cleanliness Codes Filtertechnik has a wide range of elements available to effectively achieve the required cleanliness level for the intended system. Maintaining the fluid at the required cleanliness level is a cost- effective way of extending the service life of system components. The tables below can be used to... - Page 8 16,200 2,880 23/21/18 1,024,000 182,400 32,400 5,760 1,020 Table 4 – ISO 4406 vs NAS 1638 Contamination Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875 Tel: +44 (0)115 9003 600 Email: sales@filtertechnik.co.uk Web: www.filtertechnik.co.uk Registered in England No: 03969985 VAT No: 760 821 731 Certification No.
-
Page 9: Component Identification
3.) Filter blocked indicator 8.) Motor 4.) Outlet port (1” BSP) 9.) Inlet port (1” BSP) 5.) Filter housing 10.) Pump head Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875 Tel: +44 (0)115 9003 600 Email: sales@filtertechnik.co.uk... -
Page 10: Starting & Stopping - Dol (Direct-On-Line)
If for any reason the power supply cuts out, the internal contactor will unlatch to prevent accidental spillage once power is restored. Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR... -
Page 11: Filtration
When fitting the replacement filter element and bowl make sure all parts are correctly seated. The bowl should be torque tightened to 54 N.m (40 lb.ft). Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875... -
Page 12: Pump & Motor
If the suction hose is disconnected during storage ensure the 1" BSP hydraulic fitting is capped off to prevent ingress of contaminants. At no point should the fan cowl be covered, this will overheat the motor causing the unit to trip. Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax:... -
Page 13: Hoses & Lances
The suction strainer will periodically need cleaning by unscrewing the cap, removing the mesh strainer and cleaning this out with a fluid suited for the units intended purpose e.g. hydraulic oil. Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR... -
Page 14: Troubleshooting
Brittle hoses would require replacement Oil spills under unit Defective shaft seal Replace seals where necessary Hose leaks Tighten all joints Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875 Tel: +44 (0)115 9003 600 Email: sales@filtertechnik.co.uk... -
Page 15: Spare Parts List
Limited Express Warranties, and no others: For a period of one (1) year from and after the date of delivery of a new Filtertechnik product, Filtertechnik warrants and guarantees only to the original purchaser/user that such a product shall be free from defects of materials and workmanship in the manufacturing process. -
Page 16: Ec Declaration Of Conformity
EC Declaration of Conformity DFC-3000 FILTER CART Filtertechnik 1 Central Park, Lenton Lane, Nottingham, NG7 2NR Fax: +44 (0)115 986 8875 Tel: +44 (0)115 9003 600 Email: sales@filtertechnik.co.uk Web: www.filtertechnik.co.uk Registered in England No: 03969985 VAT No: 760 821 731 Certification No.
