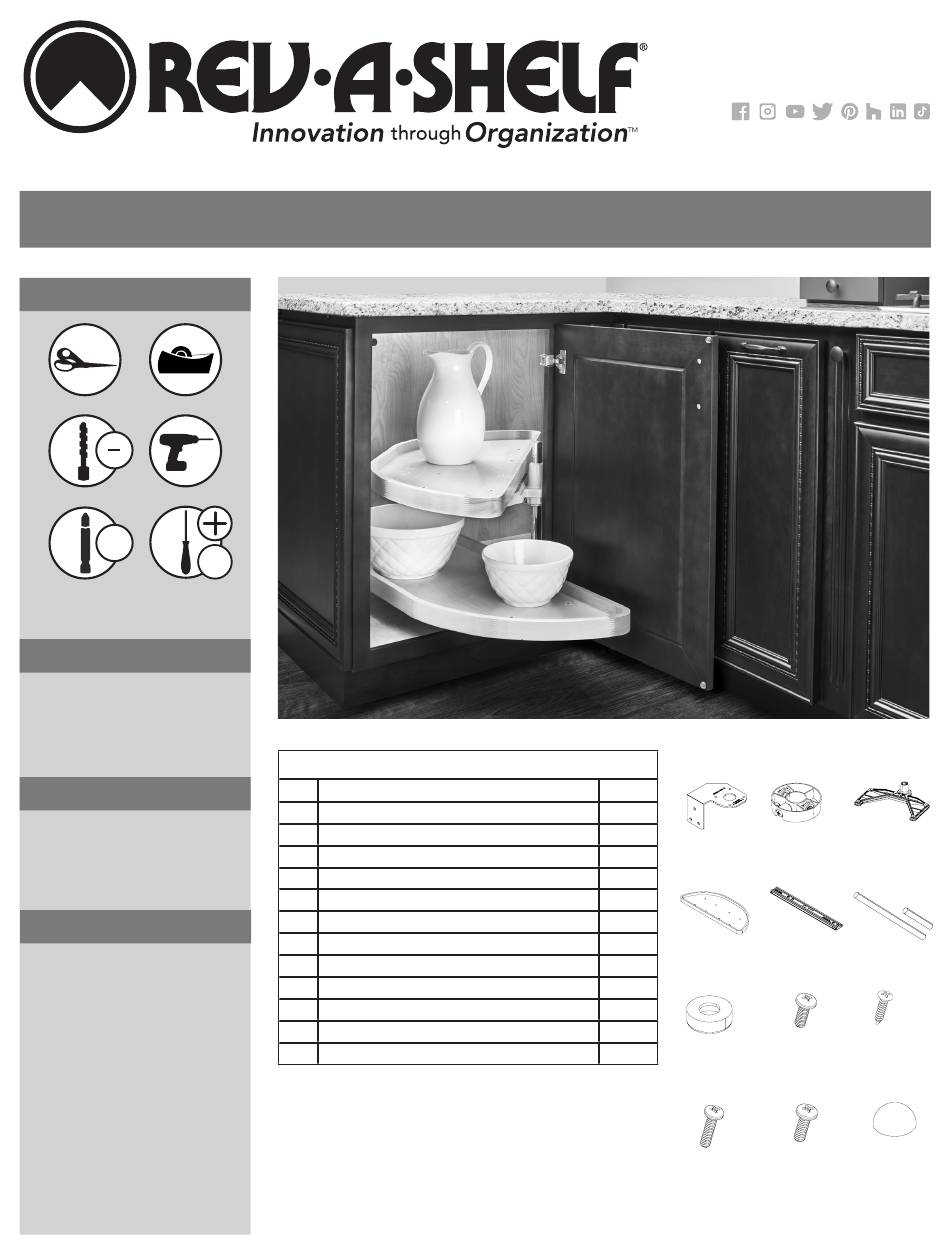

INSTALLATION INSTRUCTIONS
35" WOOD HALF-MOON
TOOLS REQUIRED:
1
16
#2
ESTIMATED ASSEMBLY TIME:
20 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
INSTALLATION OPTIONS
Blind Left/Right Door
Application . . . . . . . . . . . . page 2
Blind Right/Left Door
Application . . . . . . . . . . . . page 5
#2
No.
A
B
C
D
E
F
Single-tier or Two-tier Tray Shaft
G
H
#10 – 32 x ½" Phillips Machine Screw
I
8 x ¾" Phillips Wood Screw
J
¼ – 20 x 1" Phillips Machine Screw
K
¼ – 20 x ¾" Phillips Machine Screw
L
INSTALLATION INSTRUCTIONS: 35" WOOD HALF-MOON
Parts List
Description
Support Bracket
Positioner Base
Shelf Support
Half-Moon Tray
Slide
Screw Cap
Clear Bumper Pad
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
B.
A.
Qty
1
1-2
1-2
D.
E.
1-2
0-4
1
8-16
0-4
G.
H.
7
4-8
0-8
2
J.
K.
C.
F.
I.
L.
I-35WHMLS-0224
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rev-A-Shelf LD-4NW-882-32-1
Summary of Contents for Rev-A-Shelf LD-4NW-882-32-1
- Page 1 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 INSTALLATION INSTRUCTIONS 35" WOOD HALF-MOON TOOLS REQUIRED: ESTIMATED ASSEMBLY TIME: 20 MIN Parts List Description CARE AND MAINTENANCE: Support Bracket Clean with a damp cloth and Positioner Base wipe parts dry.
-
Page 2: Lock Screw
LOCK SCREW STEP 3 Match the Support Bracket DETAIL A over the three (3) pilot holes SCALE 1 : 2 on the cabinet wall and install using three (3) #8 x ¾" Phillips Wood Screws. Customer Service: 800-626-1126 | rev-a-shelf.com... - Page 3 STEP 4 For two-tier installations, install the second Positioner Base to the Support Bracket using four (4) #10 – 32 x ½" Phillips Machine Screws. Again, make sure to orient the Positioner Base so that the lock screw is facing toward the cabinet opening. STEP 5 For PIVOT ONLY SHELVES.
- Page 4 Positioner Base(s). For two- tier installations, slot the top Half-Moon Shelf Assembly over the Tray Shaft. Use the Clear Bumper Pads to prevent the Half-Moon Shelf Assembly(s) from damaging the cabinet walls. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 Door Opening Door Opening Door Opening Door Opening Full Height Blind Right Full Height Blind Right Full Height Blind Left Full Height Blind Left Shown with adjacent cabinet Shown with adjacent cabinet 35" WOOD HALF-MOON (BLIND RIGHT/LEFT DOOR) Blind Portion of Cabinet Blind Portion Blind Portion...
- Page 6 Shelf Support with four (4) ¼ – 20 x 1" Phillips Machine Screws. For Natural Wood trays, attach the Slides to the Shelf Support with four (4) ¼ – 20 x ¾" Phillips Machine Screws. J./K. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 7 STEP 6B Place the Half-Moon Tray on top of the Slides, line up the four (4) set of tray holes farthest from the cabinet opening with the slide holes labeled "C". For Wood Classic trays, attach using four (4) ¼ – 20 x ¾" Phillips Machine Screws.
- Page 8 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 INSTRUCCIONES DE INSTALACIÓN / LES INSTRUCTIONS D’INSTALLATION MADERA DE MEDIA LUNA DE 35" / DEMI-LUNE EN BOIS 35 PO HERRAMIENTAS REQUERIDAS: OUTILS REQUIS: TIEMPO ESTIMADO DE ENSAMBLADO: DURÉE DE L’INSTALLATION: Listado de piezas / Liste de pièces...
- Page 9 Door Opening Door Opening Panel ciego izquierdo de altura completa Full Height Blind Left Armoire cachée pleine hauteur gauche Shown with adjacent cabinet Parte ciega del gabinete Blind Portion Blind Portion MEDIA LUNA DE MADERA DE 35"(PUERTA CIEGA IZQUIERDA/DERECHA) of Cabinet of Cabinet Partie cachée DEMI-LUNE EN BOIS DE 35 PO (PORTE D’ARMOIRE DE COIN CACHÉE GAUCHE/DROITE)
- Page 10 (esquinas en ángulo) (Partie # 4WLS situé sur la boîte, plateaux aux coins arrondis) Wood Natural Natural Wood plateaux Classic Plateaux Wood Plateaux (Partie # LD-4NW situé sur la boîte, plateaux avec coins inclinés) (coins arrondis) (coins inclinés) Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 11 PASO 6A / ÉTAPE 6A Para los estantes Pivotantes y Deslizantes, extraiga completamente las guías para exponer los orificios de montaje etiquetados "B" ("B" estampada en la parte inferior de la guía). Coloque las guías encima del soporte del estante con la nota “THIS END TOWARD DOOR OPENING FOR WOOD TRAYS”...
- Page 12 Pour les installations à deux niveaux, insérez la demi-lune supérieure au-dessus de l’arbre. Utilisez les tampons en plastique transparent pour empêcher la ou les étagères demi-lune d’endommager les murs de l’armoire. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 13 Door Opening Door Opening Door Opening Door Opening Panel ciego derecha de altura completa Full Height Blind Right Panel ciego izquierdo de altura completa Full Height Blind Left Armoire cachée pleine hauteur droite Shown with adjacent cabinet Armoire cachée pleine hauteur gauche Shown with adjacent cabinet Parte ciega del gabinete...
- Page 14 (esquinas en ángulo) (Partie # 4WLS situé sur la boîte, plateaux aux coins arrondis) Wood Natural Natural Wood plateaux Classic Plateaux Wood Plateaux (Partie # LD-4NW situé sur la boîte, plateaux avec coins inclinés) (coins arrondis) (coins inclinés) Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 15 PASO 6A / ÉTAPE 6A Para los estantes Pivotantes y Deslizantes, extraiga completamente las guías para exponer los orificios de montaje etiquetados "B" ("B" estampada en la parte inferior de la guía). Coloque las guías encima del soporte del estante con la nota “THIS END TOWARD DOOR OPENING FOR WOOD TRAYS”...
- Page 16 Utilisez les tampons en plastique transparent pour empêcher la ou les étagères demi-lune d’endommager les murs de l’armoire. 12400 Earl Jones Way, Louisville, KY 40299 (800) 626-1126 www.rev-a-shelf.com Customer Service: 800-626-1126 | rev-a-shelf.com...
