Summary of Contents for Advanced MxPro 4

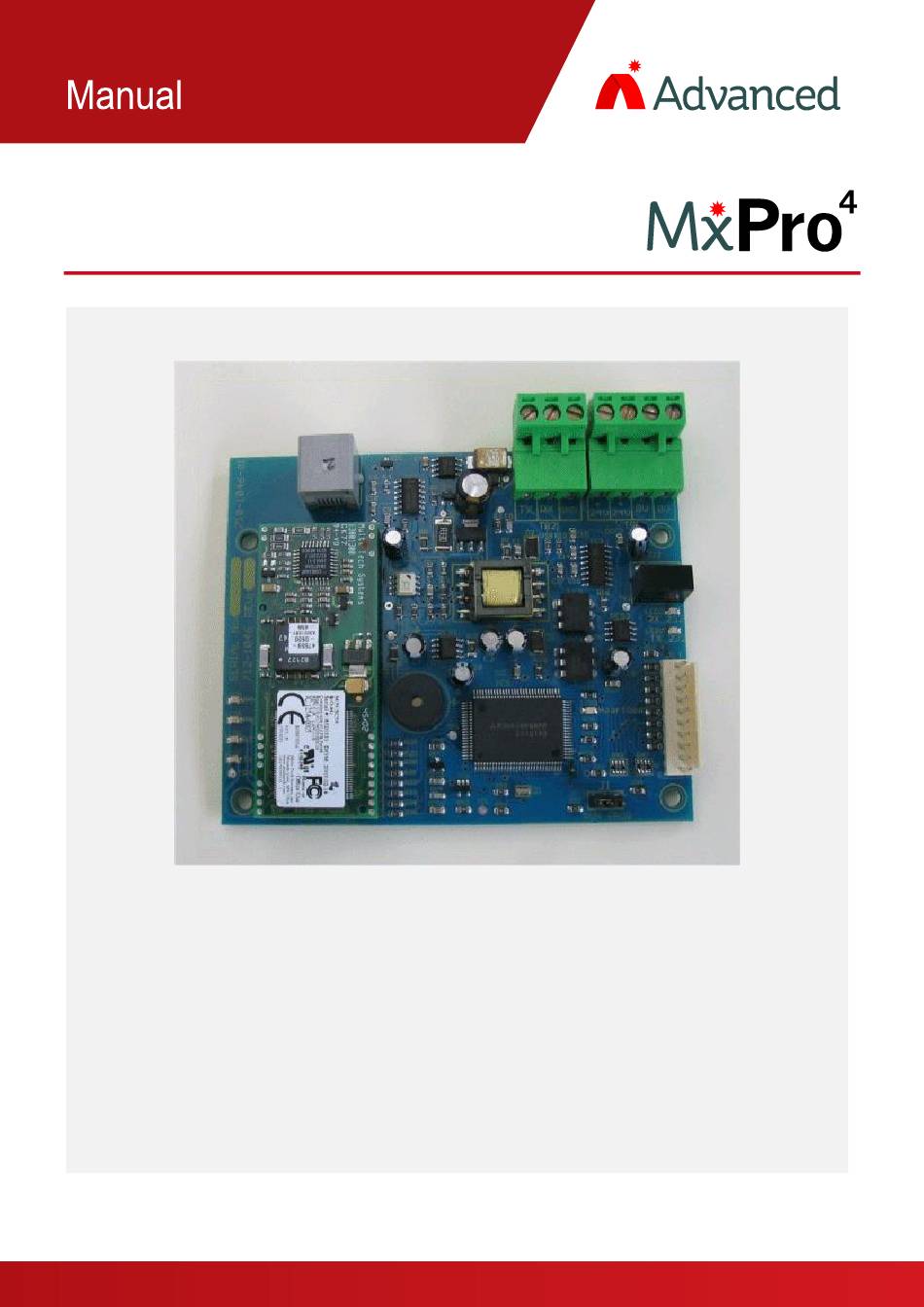

  • Page 1 www.acornfiresecurity.com Modem www.acornfiresecurity.com...
  • Page 2: Specifications

    Compatibility: Internal fitting of the Mxp-028 is applicable only to the MxPro 4 2 loop, 4 loop and 8 loop control panels. The Mxp-028-BX can be used with MxPro 4 1 Loop, 2 Loop, 4 Loop or 8 Loop control panels...
  • Page 3 CTIVITY Features  This modem unit provides remote dial-in access to MxPro 4 series fire products.  The modem card can be mounted inside the MxPro4 2 or 4 Loop fire panels or supplied as a separate boxed unit for the MxPro 4 1 Loop fire panel.
  • Page 4: Power And Data Connections

    www.acornfiresecurity.com 1 Power and Data Connections The Mxp-028 modem requires a 24V supply. The power supplied used MUST BE designated a Safety Extra Low Voltage (SELV) supply. Connect the 0V and 24V terminals to 24V power supply (e.g. to the Aux 0V and 24V of the base card). Connect the modem’s TX, RX and GND terminals to the RS232 connector on the Panel as shown below.
  • Page 5: User Notes

    www.acornfiresecurity.com USER NOTES www.acornfiresecurity.com...
  • Page 6 www.acornfiresecurity.com Doc Number: 680-050 Revision: First Issued: 2013-mm-dd www.acornfiresecurity.com...
