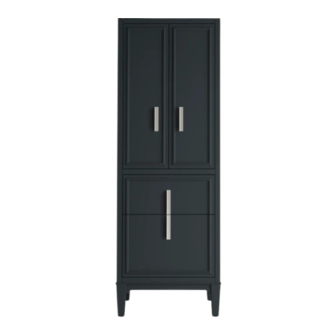

- Page 1 Installation Instructions Linen Tower Record your model number: 1384738-2-B...
-
Page 2: Warranty
• Care and cleaning: kohler.com/clean • Patents: kohlercompany.com/patents Warranty This product is covered under the KOHLER One-Year Limited Warranty, found at kohler.com/warranty. For a hardcopy ® of warranty terms, contact the Customer Care Center. Tools and Materials Stud Finder Before You Begin WARNING: Risk of serious or fatal injury. - Page 3 Other means of controlled mechanical ventilation can be used to reduce levels of formaldehyde and other indoor air contaminants. If you have any questions regarding the health effects of formaldehyde, consult your doctor or local health department. 1384738-2-B Kohler Co.
- Page 4 Loosely attach the legs with the truss-head screws (provided). Align the legs flush with the front edges of the vanity. Securely tighten the truss-head screws. Carefully stand the cabinet upright. Do not slide or side-load the legs. 1384738-2-B Kohler Co.
- Page 5 From inside the cabinet, drill two 1/8" (3 mm) holes into the back of the cabinet aligned with the wall studs or wall anchors. Secure the back of the cabinet to the wall using the two wood screws provided. 1384738-2-B Kohler Co.
- Page 6 NOTE: Some cabinets will have two screw lengths. If applicable, use the shorter screws for the door handles and the longer screws for the drawer pulls. Install the handles and pulls to the outside of the cabinet, using the pre-drilled holes. Tighten the screws securely. 1384738-2-B Kohler Co.
-
Page 7: Install The Shelves
Insert the pegs into the side holes at the desired height. Tilt the shelf and position inside the cabinet above the four pegs. Rotate the shelf down so the holes on the bottom of the shelf engage the pegs. Repeat for any additional shelves. 1384738-2-B Kohler Co. - Page 8 Move the door forward to slide the hinges off the brackets. Door Installation NOTE: Get assistance supporting the door to ease installation. Align the pin with the top hinge cup. Snap the latch onto the top bracket. Repeat for the lower hinge. 1384738-2-B Kohler Co.
-
Page 9: Remove/Adjust The Drawer
Pull the bearing carriage on each cabinet rail toward you. Align the drawer rails onto the cabinet rails, then close the drawer. Open and close the drawer to confirm proper operation and confirm that the latches are engaged. 1384738-2-B Kohler Co. - Page 10 1384738-2-B Kohler Co.
- Page 11 1384738-2-B Kohler Co.
- Page 12 ©2023 Kohler Co. 1384738-2-B 1384738-2...
