BEFORE YOU BEGIN
HOW TO USE THESE INSTRUCTIONS
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and
installation sequences.
All information in this manual is based on the latest
product information available at the time of publication.
Kohler Co. reserves the right to make changes in product
characteristics, packaging, or availability at any time
without notice.
These instructions contain important care, cleaning, and
warranty information - please leave for the consumer.
BA
112629–
(0492)
R
1 1
QUEEN ANNE DOUBLE
PRODUCT REQUIREMENTS
S
The product requires two people to install.
S
The product requires two Kohler 17" x 14"
undercounter lavatories to complete installation.
S
Rough-in supplies and drain piping according to
rough-in dimensions.
S
Refer to water supply and drain roughing-in above
for installation of Kohler faucet.
S
Add 3" long pipe nipples from finished wall to the
supplies and drain pipe.
NOTICE: Observe all local plumbing codes.

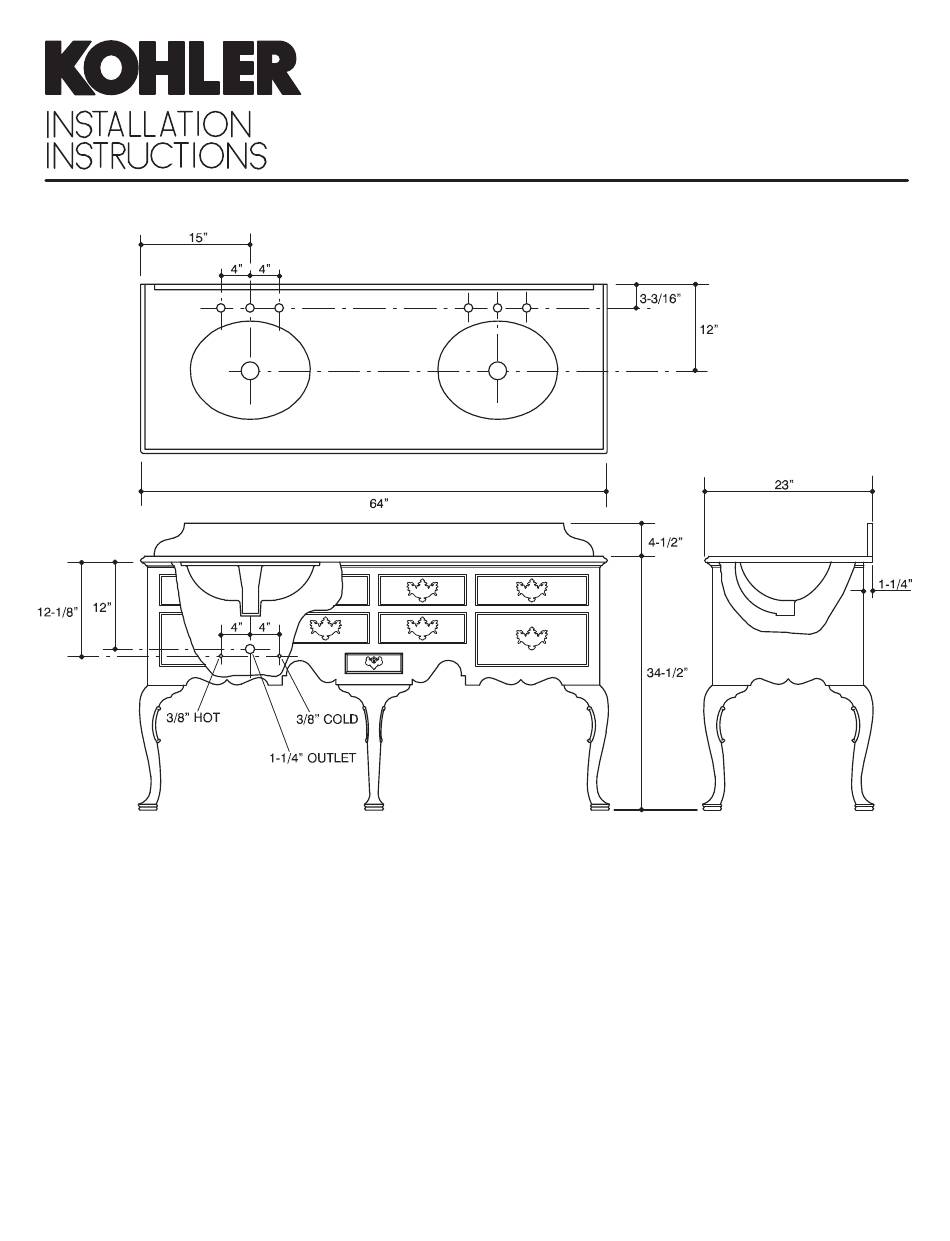

BASIN VANITY
K-3087-**-AA
Copyright E 1992 Kohler Co.
