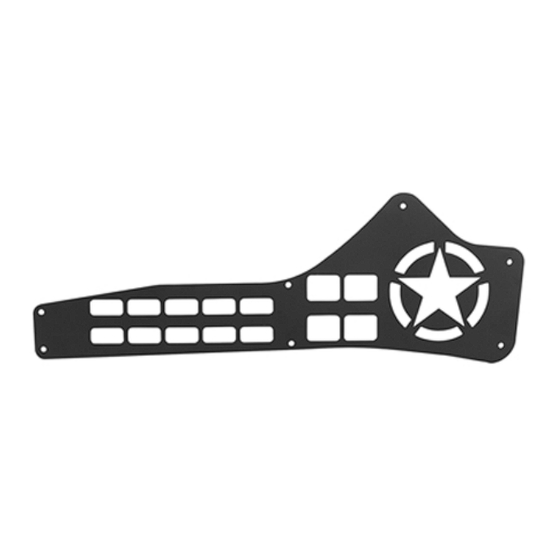

Passenger's Side Center Console
Molle Panel
2016-2021 Tacoma
(1) Contents:
Qty
Part Name
1
Molle Panel
I×7
Nylon Round Spacer
(2) Tools required:
a. Phillips Screwdriver;
b. Battery Electric Power Drill;
Size(mm)
Qty
Part Name
H×7
Cross Recessed Round Head Tapping Screw
11*6.2*4
SKU: TT22613
Size(mm)
M5*12
Advertisement
Related Manuals for Redrock TT22613
Summary of Contents for Redrock TT22613
- Page 1 Passenger's Side Center Console Molle Panel SKU: TT22613 2016-2021 Tacoma (1) Contents: Part Name Size(mm) Part Name Size(mm) H×7 Molle Panel Cross Recessed Round Head Tapping Screw M5*12 I×7 Nylon Round Spacer 11*6.2*4 (2) Tools required: a. Phillips Screwdriver; b. Battery Electric Power Drill;...
- Page 2 (3) Installation time: About 30 minutes, 1 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!)
- Page 3 (4) Installation instruction: Step 1: Move your seat all the way make as much room as possible before installing the panel. Line up the panel so its flush with the center console. Make the screw holes with a sharpie. Step 2: Use a battery electric power drill to puncture 7 holes into the plastic.
- Page 4 You need to stick the Part “I” with glue.
- Page 5 Step 4: The installation is complete. Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
