Redrock J130913 Installation Instructions

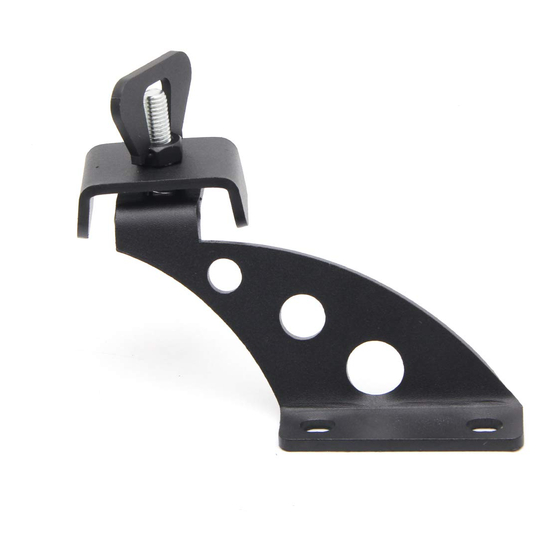

Hi-lift jack hood mount bracket fits jeep wrangler jk 07-17

Download this manual

KEY TO COMPONETS

A. 2 ea. Mounting bracket

B. 2 ea. U brackets

C. 2 ea. Wing nuts

D. 1 ea. Velcro strap

E. 2 ea. M10x1.0x40mm button head bolt

F. 4 ea. M8x1.25x30mm button head bolt

G. 4 ea. M8 flat washer

H. 4 ea. M8 split washer

I. 2 ea. M10 flat washer

J. 2 ea. M10 split washer

Please take a few minutes to read and thoroughly familiarize yourself with the installation procedures outlined

in this manual. Following the steps as outlined will save you time and help reduce mistakes. Once the

instructions are reviewed, if you feel that you are not capable of safely installing the parts seek the help of a

qualified installation expert to help you complete the job. The manufacture is in no way responsible for any

personal injury or vehicle damage that may occur during the installation.

California Proposition 65 Warning!

This product may contain lead a chemical known to the State of California to

cause cancer and birth defects or other reproductive harm.

information go to www.P65Warnings.ca.gov.

Hi-Lift Jack Hood Mount Bracket

TOOLS NEEDED

10mm socket

#2Philip's head

screw driver

Installation Instruct ions

PART NUMBER J130913

FITS Jeep Wrangler JK

07-17

For more

Page 1

Need help?

Do you have a question about the J130913 and is the answer not in the manual?

Page 1 B. 2 ea. U brackets Installation Instruct ions C. 2 ea. Wing nuts D. 1 ea. Velcro strap PART NUMBER J130913 E. 2 ea. M10x1.0x40mm button head bolt F. 4 ea. M8x1.25x30mm button head bolt TOOLS NEEDED FITS Jeep Wrangler JK G.
Page 2 INSTALLING BRACKET ON HOOD HINGE Step 1. Step 2. Using a T-50 torx bit locate and remove two factory bolts Place supplied mounting bracket (A) onto Jeep. Line up on the hood. Discard factory hardware. the bracket holes with the holes in the hood hinge holes. INSTALLING BRACKET ON REAR DOOR HINGE NOTE: Only applicable for 4 door Jeep.
Page 3 INSTALLING BRACKET ON REAR DOOR HINGE continued Step 1. Step 2. Place supplied mounting bracket (A) onto Jeep. Line up Place a supplied M8x1.25x30mm button head bolt with the bracket holes with the holes in the door hinge holes. supplied M8 flat washer (G) and supplied M8 split washer (H) through the hole in the bracket through the hole in the door hinge onto factory hood.
