JOONG CHENN INDUSTRY CO., LTD.
Sales Office:
3F28, No.5, Shin-Yi Rd., Sec. 5, Taipei, Taiwan 110 R.O.C.
Tel: 886-2-27209980
Fax:886-2-27229750
www.steelflexfitness.com
MTSG
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEGA POWER MTSG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SteelFlex MEGA POWER MTSG

Summary of Contents for SteelFlex MEGA POWER MTSG

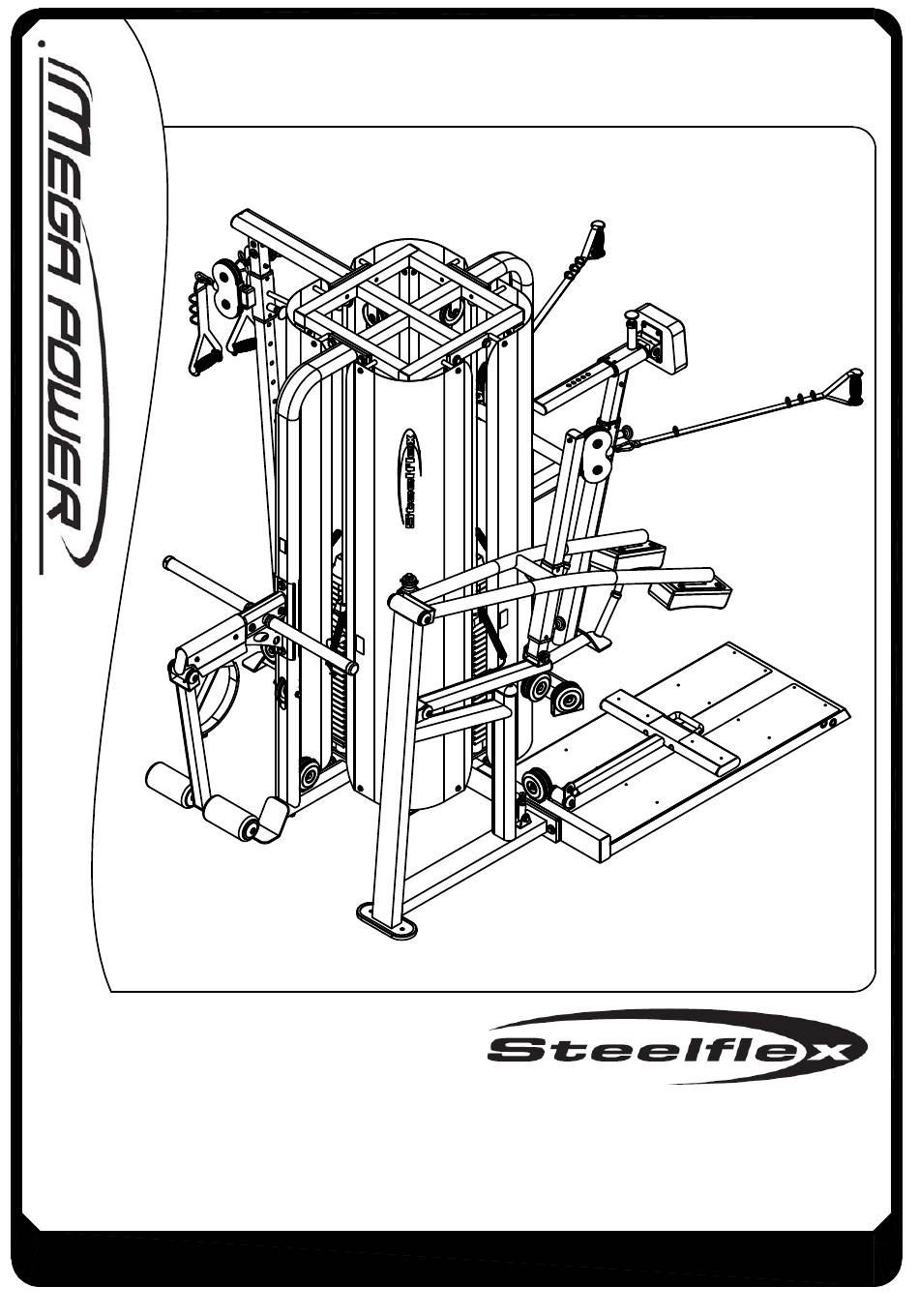

  • Page 1 JOONG CHENN INDUSTRY CO., LTD. Sales Office: 3F28, No.5, Shin-Yi Rd., Sec. 5, Taipei, Taiwan 110 R.O.C. Tel: 886-2-27209980 Fax:886-2-27229750 www.steelflexfitness.com MTSG OWNER'S MANUAL...
  • Page 2 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)ROUND ALLEN HEAD 3/8"x2"L PARTIAL THREAD QTY.4 (A2)ROUND ALLEN HEAD M8X16L PARTIAL THREAD QTY.40 (A3)ROUND ALLEN HEAD M8X20L PARTIAL THREAD QTY.4 (A4)ROUND ALLEN HEAD M8X12L PARTIAL THREAD QTY.2 (A5)ROUND ALLEN HEAD M8X25L PARTIAL THREAD QTY.12 inch 2"...
  • Page 3 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)ROUND ALLEN HEAD M8X40L PARTIAL THREAD QTY.2 (A8)HEX BOLT M10X45L PARTIAL THREAD QTY.15 (A9)HEX BOLT M10X50L PARTIAL THREAD QTY.3 (A10)HEX BOLT M10X70L PARTIAL THREAD QTY.8 inch 2" 5" 6" 1" 3" 4" MTSG-122016 Page...
  • Page 4 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A11)HEX BOLT M10X75L PARTIAL THREAD QTY.2 (A12)HEX BOLT M10X115L PARTIAL THREAD QTY.3 (A13)HEX BOLT M12X35L PARTIAL THREAD QTY.2 (A14)ROUND ALLEN HEAD M12X50L PARTIAL THREAD QTY.8 (A15)HEX BOLT M12X60L PARTIAL THREAD QTY.1 inch 2" 5" 6" 1"...
  • Page 5 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A16)HEX BOLT M12X80L PARTIAL THREAD QTY.2 (A18)ROUND ALLEN HEAD M12X90L PARTIAL THREAD QTY.4 (A19)ELASTIC BELT (F920003) QTY.4 inch 2" 5" 6" 1" 3" 4" MTSG-012018 Page...
  • Page 6 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A21)WEIGHT STACK PIN (8250-128) QTY 4 (A22)ROUND ALLEN HEAD M4X12L PARTIAL THREAD QTY.4 (A23)HEX BOLT M12X75L PARTIAL THREAD QTY.1 (A24)HEX BOLT M12X100L PARTIAL THREAD QTY.1 inch 2" 5" 6" 1" 3" 4" MTSG-012018 Page...
  • Page 7 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1) NUT 1/2"X13 UNC QTY.7 (C1)1/2" SPRING WASHER QTY.7 (C2)3/8" SPRING WASHER QTY.4 (B2)NYLON LOCK NUT M10 QTY.19 (C3)M8 SPRING WASHER QTY.14 (B3)NYLON LOCK NUT M8 QTY.2 (C5)M8(I.D.)FLAT WASHER Ø16 QTY.8 (B4)NYLON LOCK NUT M12 QTY.16 (B5) NUT M4 QTY.4 inch 2"...
  • Page 8 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C6)M8(I.D.)FLAT WASHER Ø18 QTY.4 (C11)M12(I.D.)FLAT WASHER Ø20 QTY.8 (C7)M8(I.D.)FLAT WASHER Ø24 QTY.48 (C12)M12(I.D.)FLAT WASHER Ø25 QTY.4 (C8)M10(I.D.)FLAT WASHER Ø19 QTY.8 (C13)M12(I.D.)FLAT WASHER Ø34 QTY.24 (C9)M10(I.D.)FLAT WASHER Ø27 QTY.40 (C14)M20(I.D.)FLAT WASHER Ø30 QTY.6 (C10)M10(I.D.)FLAT WASHER Ø35 QTY.2 inch 2"...
  • Page 9 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C15)M4(I.D.)FLAT WASHER Ø10 QTY.8 (C16)M12(I.D.)FLAT WASHER Ø20 QTY.1 (C17)5/8"(I.D.)FLAT WASHER Ø29 QTY.2 inch 2" 6" 1" 3" 4" 5" MTSG-012018 Page...
  • Page 10 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 5/8"x22.5L Steel Bushing (8110-011)--------------------[2PCS] Ø 3/4"X8L STEEL BUSHING (8110-014) ------------------[4PCS] Ø D3. Ø1/2"X23L STEEL BUSHING (8110-062) -----------------[2PCS] D4.Ø15.9X11L STEEL BUSHING (8110-131) -----------------[2PCS] D5.Ø50 CAP COVER(8130-131)---------------------------------[8PCS] D6.Ø60 CAP COVER(8130-231)---------------------------------[2PCS] D7. Ø1X70L STEEL BUSHING (8220-244) --------------------[1PCS] D8. Ø10x19.5L Steel Bushing (8530-015)---------------------[2PCS] D9.
  • Page 11 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D17. Ø65XØ20X70L Rubber Dount(9310-049)------------------[8PCS] D18.108X263 RUBBER PAD(9310-075)----------------------------[1PCS] D19. SHOULDER BELT(9630-221) --------------------------------[2PCS] D20. SHOULDER BELT(9630-286) --------------------------------[2PCS] D21. Ø110X22 PULLEY(9213-002B)-----------------------------[19PCS] D22. Ø4-1/2"X26 PULLEY(9213-010E)----------------------------[8PCS] D23. Ø110X42 PULLEY(9213-022E)-------------------------------[2PCS] D24.BOTTLE BRACKET(8388-025)--------------------------------[2PCS] D25.BOTTLE RACK(9260-086)--------------------------------------[2PCS] D26.BOTTLE(9260-123)-----------------------------------------------[2PCS] MTSG-122016 Page...
  • Page 12 MTSG ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D27.TOP PLATE(8400-006)-----------------------------------------------[4PCS] D28.Selector Rod(8210-042)----------------------------------------------[4PCS] D29. 1250mm STEEL CABLE (FMTSGA) ----------------------------[1PCS] D30. 4700mm STEEL CABLE (FMTSGB) -----------------------------[1PCS] D31. 1285mm STEEL CABLE (FMTSGC) -----------------------------[1PCS] D32. 6760mm STEEL CABLE (FMTSGD) -----------------------------[1PCS] D33. 7045mm STEEL CABLE (FMTSGE) -----------------------------[1PCS] D34. 4625mm STEEL CABLE (FMTSGF) ------------------------------[1PCS] D35.
  • Page 13 MTSG ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A[1PCS] C[1PCS] E[1PCS] D[1PCS] H[1PCS] I[1PCS] G[1PCS] F[2PCS] M[2PCS] L[1PCS] J[1PCS] MTSG-072017 Page...
  • Page 14 MTSG ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET P[1PCS] O[1PCS] N[1PCS] Q[1PCS] R[1PCS] S[1PCS] T[4PCS] V1[1PCS] W1[1PCS] U1[1PCS] X1[1PCS] MTSG-012018 Page...
  • Page 15 MTSG ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET Z1[1PCS] Y[1PCS] AA1[1PCS] AD[1PCS] AE[1PCS] AC[2PCS] AB[1PCS] 8220-181 9121-114 6640-019 28MTSGAB Ø25.4X98L AH[1PCS] AI[1PCS] AF[2PCS] AG[2PCS] 8220-148 8220-255 8220-149 9161-077 Ø20X74L Ø25X153.5L Ø20X89L AK[4PCS] AJ[2PCS] 10MTSG-01 9131-059  50X1.8TX1788L MTSG-012018 Page...
  • Page 16 MTSG ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET AL[1PCS] AM[8PCS] 5155X003-26 8280-050  50X1.8TX1811L Ø3/4"X1879L AO[2PCS] AN[2PCS] 8380-081 8380-081 AP[1PCS] AR[1PCS] AQ[1PCS] 8313-188 8341-145 8210-197 Ø15X84L MTSG-012018 Page...
  • Page 17 MTSG ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed Chest Press Mid Row Calf Press Chest Press Mid Row Calf Press MTSG-122016 Page...
  • Page 18 MTSG ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed STEP 1 MTSG-122016 Page...
  • Page 19 MTSG ASSEMBLY INSTRUCTIONS Multi Hip * : Please tighten the screw after all parts assembled. or please tighten all screws after all parts joint together 1/2"X1-1/4"L HEX BOLT X2 M12 WASHER Ø34 X2 Above shows STEP 3 assembled and completed Figure 1 M12 WASHER Ø34 X2 M12X35L HEX BOLT X2...
  • Page 20 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Multi Hip 1250 MTSG-122016 10.1 Page...
  • Page 21 MTSG ASSEMBLY INSTRUCTIONS Multi Hip Above shows STEP 4 assembled and completed M10X25L CONE SCREW X2 M10X25L CONE SCREW X2 MTSG-072017 11.1 Page...
  • Page 22 MTSG ASSEMBLY INSTRUCTIONS Figure 1 Above shows STEP 5 assembled and completed Figure 2 Multi Hip STEP 4 C9 D15 MTSG-072017 11.2 Page...
  • Page 23 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Multi Hip 4700 4700 MTSG-072017 11.3 Page...
  • Page 24 MTSG ASSEMBLY INSTRUCTIONS Cable Cross over Above shows STEP 6 assembled and completed MTSG-072017 Page...
  • Page 25 MTSG ASSEMBLY INSTRUCTIONS Cable Cross over Above shows STEP 7 assembled and completed STEP 5 1/2" WASHER Ø34 X2 1/2"X1-1/4"L HEX BOLT X2 C7 A2 STEP 6 M12 WASHER Ø34 X2 M12X35L HEX BOLT X2 MTSG-072017 Page...
  • Page 26 MTSG ASSEMBLY INSTRUCTIONS Cable Cross over Above shows STEP 8 assembled and completed STEP 7 MTSG-072017 Page...
  • Page 27 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Cable Cross over 7045 7045 MTSG-122016 14.1 Page...
  • Page 28 MTSG ASSEMBLY INSTRUCTIONS Chest Press Mid Row Above shows STEP 9 assembled and completed M10 WASHER Ø27 X2 M10 SPRING WASHER X2 M10X25L ROUND BOLT X2 MTSG-122016 Page...
  • Page 29 MTSG ASSEMBLY INSTRUCTIONS Chest Press Mid Row Above shows STEP 10 STEP 8 assembled and completed 1/2"X1-1/4"L HEX BOLT X2 1/2" WASHER Ø34 X2 M8X10L ROUND BOLT M8 SPRING WASHER STEP 9 M12 WASHER Ø34 X2 M12X25L HEX BOLT X2 MTSG-072017 15.1 Page...
  • Page 30 MTSG ASSEMBLY INSTRUCTIONS Chest Press Above shows STEP 11 Figure 3 Mid Row assembled and completed MTSG-072017 Page...
  • Page 31 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Chest Press Mid Row 1285 MTSG-122016 16.1 Page...
  • Page 32 MTSG ASSEMBLY INSTRUCTIONS Figure 3 Above shows STEP 12 Figure 6 assembled and completed STEP 11 Figure 4 Figure 4 Figure 3 Figure 5 Figure 5 MTSG-072017 Page...
  • Page 33 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Chest Press Mid Row 6760 6760 MTSG-122016 17.1 Page...
  • Page 34 MTSG ASSEMBLY INSTRUCTIONS Calf Press Above shows STEP 13 assembled and completed STEP 12 M10X25L CONE SCREW X2 M12X35L HEX BOLT X2 M12 WASHER Ø34 X2 M10X25L CONE SCREW X2 MTSG-012018 Page...
  • Page 35 MTSG ASSEMBLY INSTRUCTIONS Calf Press Above shows STEP 14 assembled and completed STEP 13 MTSG-012018 Page...
  • Page 36 MTSG ASSEMBLY INSTRUCTIONS Cable Configuration Diagram Calf Press 4625 4625 MTSG-012018 19.1 Page...
  • Page 37 MTSG ASSEMBLY INSTRUCTIONS Calf Press Above shows STEP 15 assembled and completed 5/16" SPRING WASHER 5/16"x1/2"L ROUND BOLT MTSG-012018 20.1 Page...
  • Page 38 MTSG ASSEMBLY INSTRUCTIONS Calf Press Above shows STEP 16 assembled and completed M10X25L CONE SCREW X2 STEP 15 M10X16L ROUND BOLT X2 M10 SPRING WASHER X2 M10 WASHER Ø27 X2 M10X25L CONE SCREW X2 MTSG-012018 20.2 Page...
  • Page 39 MTSG ASSEMBLY INSTRUCTIONS Above shows STEP 17 assembled and completed MTSG-122016 21.1 Page...
  • Page 40 MTSG ASSEMBLY INSTRUCTIONS STEP 17 Above shows STEP 18 assembled and completed M10X16L ROUND BOLT X8 M10 WASHER Ø19 X8 M10 WASHER Ø19 X8 M10X16L ROUND BOLT X8 STEP 17 STEP 17 STEP 17 MTSG-112018 21.2 Page...
