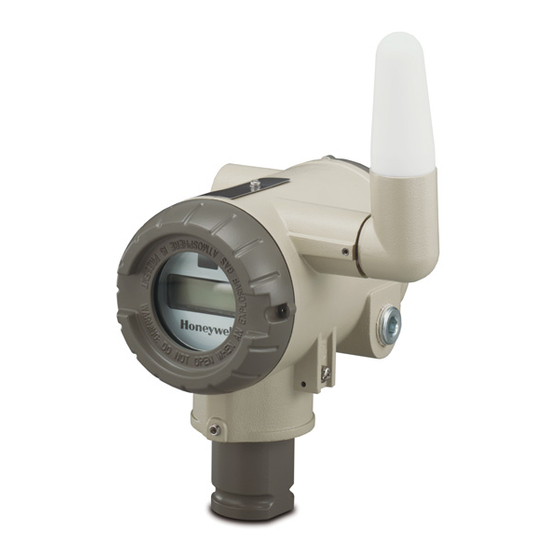

XYR 6000 Wireless Transmitter
High Level Input Interface
Series 600
Instructions
Select the desired Key Number. The arrow to the right marks the selection available.
Make one selection from each Table, I and II.
Select as many Table III options as desired (if no options or approvals are desired, specify 9X).
A (w) denotes unrestricted availability. A letter denotes restricted availability.
Restrictions follow Table V.
Key Number
I
II
_ _ _ _ _ _ _
000
-
0000
-
Key Number
Description
* Wireless Analog Input Interface (0/1 to 5 and 0/4-20 mA)
* Only 0/4 to 20 mA input is certified as Intrinsically Safe. 0/1 to 5V input is not certified as Intrinsically Safe.
TABLE I - Options
Future
TABLE II Options
Future
TABLE III - ANTENNA OPTIONS
Antennas
Integral Right-angle, vertical 2dBi
Integral Straight, horizontal 2dBi
Integral Right-angle, vertical 4dBi
Remote Omnidirectional, 8 dBi
Remote Directional, 14 dBi
Remote Antenna Adapter, Type N Connection
Cable A for
None
Remote Antenna
1.0m remote Cable A, Type TNC (Req'd to connect to XYR 6000)
3.0m remote Cable A, Type TNC (Req'd to connect to XYR 6000)
10.0m remote Cable A, Type TNC (Req'd to connect to XYR 6000)
1.0m remote Cable A, Type N (Req'd to connect to XYR 6000)
3.0m remote Cable A, Type N (Req'd to connect to XYR 6000)
10.0m remote Cable A, Type N (Req'd to connect to XYR 6000)
Cable B
None
for Remote Antenna Accessory + 1.0m Cable B to Antenna, N - N
w/Accessories*
Accessory + 3.0m Cable B to Antenna, N - N
Accessory + 10.0m Cable B to Antenna, N - N
* See Supplemental Accessories
TABLE IV - OPTIONS
Radio Options
2.4 GHz Frequency Hopping Spread Spectrum (FHSS)
2.4 GHz Direct Sequence Spread Spectrum (802.15.4 DSSS)
ISA 100.11a Compliant (2.4 GHz Direct Sequence Spread Spectrum 802.15.4 DSSS-FH)
Power Option
Battery Holder Only - No Battery Included
Battery Power
24VDC
Transmitter Housing & Electronics Options
M20 Conduit Thread (1/2" NPT is standard)
1/2" NPT to 3/4" NPT 316 SS Conduit Adapter
1/2" NPT to 3/4" NPT 316 SS Conduit Adapter (Quantity of 2 for 24VDC Option)
1,2
316 SS
Electronics Housing - with M20 Conduit Connections
1,2
316 SS
Housing with 1/2" NPT Conduit Connection
Stainless Steel Customer Wired-On Tag
(4 lines, 28 characters per line, customer supplied information)
Stainless Steel Customer Wired-On Tag (blank)
End Cap Warning Label in Spanish
End Cap Warning Label in Portuguese
End Cap Warning Label in Italian
End Cap Warning Label in German
Transmitter Mounting Brackets Options
Mounting Bracket - Carbon Steel
Mounting Bracket - 304 SS
Flat Mounting Bracket - Carbon Steel
Services/Calibration/Conformance Options
User's Manual Paper Copy
Calibration Test Report and Certificate of Conformance (F3399)
Certificate of Conformance (F3391)
Certificate Options
Certificate of Origin (F0195)
Warranty Options
Additional Warranty - 1 year
Additional Warranty - 2 years
1
Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.
2
If ordered with Remote Antenna option, Table III Selection M _ _ _ _ or D _ _ _ _, antenna parts are not SS or Marine type cables
III
IV
V
- _ _ _ _ _
-
_ _, _ _, _ _
-
_ _ _ _
(Must Choose a Radio Option)
(Must Choose Power Option)
34-XY-16U-47
Issue 21
Page 1 of 3
Model Selection Guide
Selection
Availability
STIW600
000
0000
V _ _ _ _
d
S _ _ _ _
d
R _ _ _ _
d
M _ _ _ _
p
D _ _ _ _
e
A _ _ _ _
d
_ 0 0 _ _
_ 0 1 _ _
f
_ 0 3 _ _
f
_ 1 0 _ _
f
_ 2 1 _ _
_ 2 3 _ _
_ 2 9 _ _
_ _ _ 0 0
_ _ _ 0 1
_ _ _ 0 3
_ _ _ 1 0
XF
b
XD
XS
00
BA
b
DC
A1
f
A2
g
b
A4
h
SH
b
A3
TG
b
TB
SP
PG
b
TL
GE
MB
SB
b
FB
UM
F1
b
F3
F5
W1
W2
b
