Kwikee SuperSlide II PowerSlide Assembly Instructions

Quantity Description
1 Power module
1 Power module drive channel
4 Limit switches
8 Slide switch spacers
8 Screw BHCS 4-40 x 1"
8 Nut Nylock 4-40
2 5/16"-18 x 1 HH GR.5 bolts
2 5/16-18 Nylock nuts
4 1/4"-20 x 3/4 HH GR.5 bolts
4 1/4 Split lock washers
Kwikee Products Company, Inc.
230 Davidson Avenue
Cottage Grove, Oregon 97424-9545
(541) 942-3888
www.kwikee.com
SuperSlide II PowerSlide
Assembly Instructions
Overview
The SuperSlide II Powerslide Assembly Instructions are for adding the
power slide module to an already installed manual slide or an unassembled
version of the power slide.
For a fully assembled version, skip to the section titled Assembly into Coach
beginning on Page 3.
For an unassembled version, begin by following the instructions provided in the
kit for the manual slide, which are included in the rail slider kit. Once the
manual slide is assembled, use the SuperSlide II Powerslide Assembly
Instructions to install the power drive option. The power drive option comes
fully assembled and requires only the addition of wiring.
Extension
Begin SuperSlide II PowerSlide assembly by connecting the limit switches to the
manual tray. See Figure 1 for limit switch locations. A total of 4 switches will be placed
on the tray.
Caution should be used when tightening the screws retaining the limit
switches to prevent over tightening and fracture of the switch case.
The switches should be connected to the fixed rail that is on the front side of the coach.
When the power module is finished, it will be located on the front side of the coach.

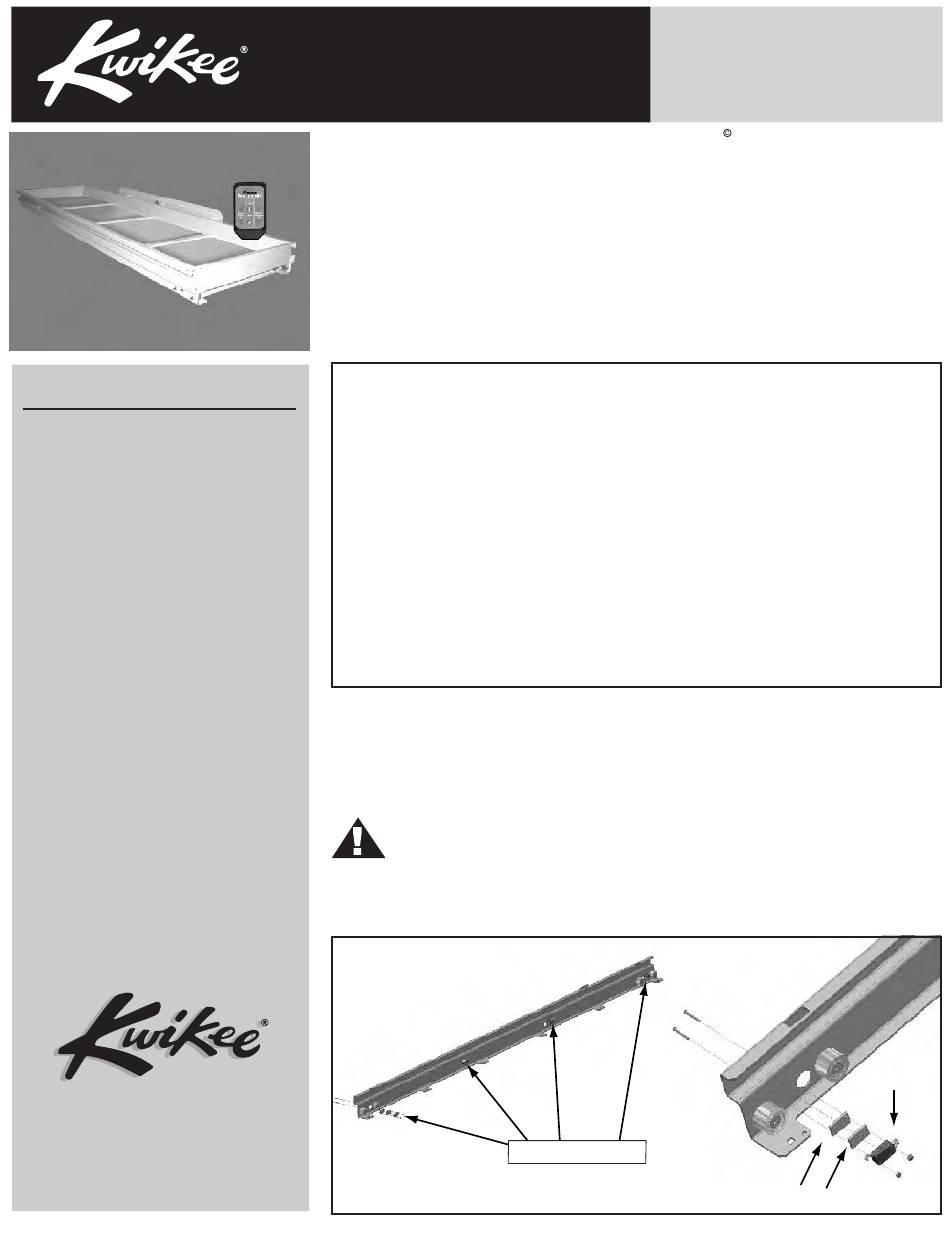

Figure 1
SuperSlide II PowerSlide
Assembly Instructions
Limit Switch locations
2003 Kwikee Products Co., Inc.
Kwikee #1422275 Rev. 1, 05/03
Limit
Switch
Slide switch spacers
