Kwikee SuperSlide II PowerSlide Operation Manual

Contents
Introduction
Safety Precautions
Extending Your Tray
Stowing Your tray
Program Remote
Troubleshooting
Manual Retract
p
CAUTION
!
READ ALL
OPERATING INSTRUCTIONS
FIRST BEFORE USING YOUR
POWERSLIDE CARGO TRAY.
Introduction
This coach is equipped with a SuperSlide II PowerSlide mechanism from
1
Kwikee products. PowerSlide utilizies a quad motor system to move the cargo
1
tray between the stowed drivers and passenger side of the coach.
2

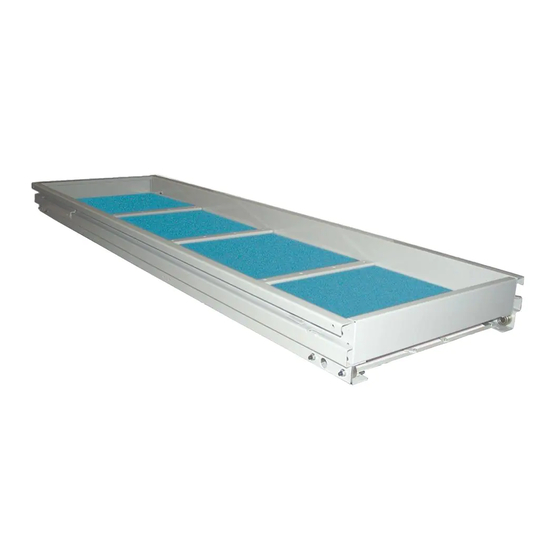

The PowerSlide is made of an inner tray which rolls on a set of outer guide
2
rails. The tray is designed to move 60" out in both directions of travel. Power
2
to move the tray is provided by engaging urethane covered drive rolls with the
channel mounted on the side of the tray. The drive rolls are tensioned, to
3
allow for wear in the urethane and maintain good contact. To prevent
3
movement during coach travel, a center lock mechanism is employed to lock
the tray into its stowed position.
Operating Safety Precautions
p
CAUTION
!
Make sure the area is clear of all persons or
obstructions before operating
Prior to extending or retracting the cargo tray, take a moment to ensure
the following:
1. Open the luggage compartment doors to make sure that there are no
obstacles that could interfere with the tray's movements, either in or out to
either side.
2. Make sure that there are no obstacles on the outside of the coach that
would interfere with tray movement or be damaged due to tray movement.
3. Check to ensure that stored gear has not shifted and that no obstructions
exist between the inside of the compartment and the stowed gear.
SuperSlide II
PowerSlide
Operation Guide
Operation
Guide
SuperSlide II
PowerSlide
© 2/07 Kwikee #3010000926 Rev. 0A
