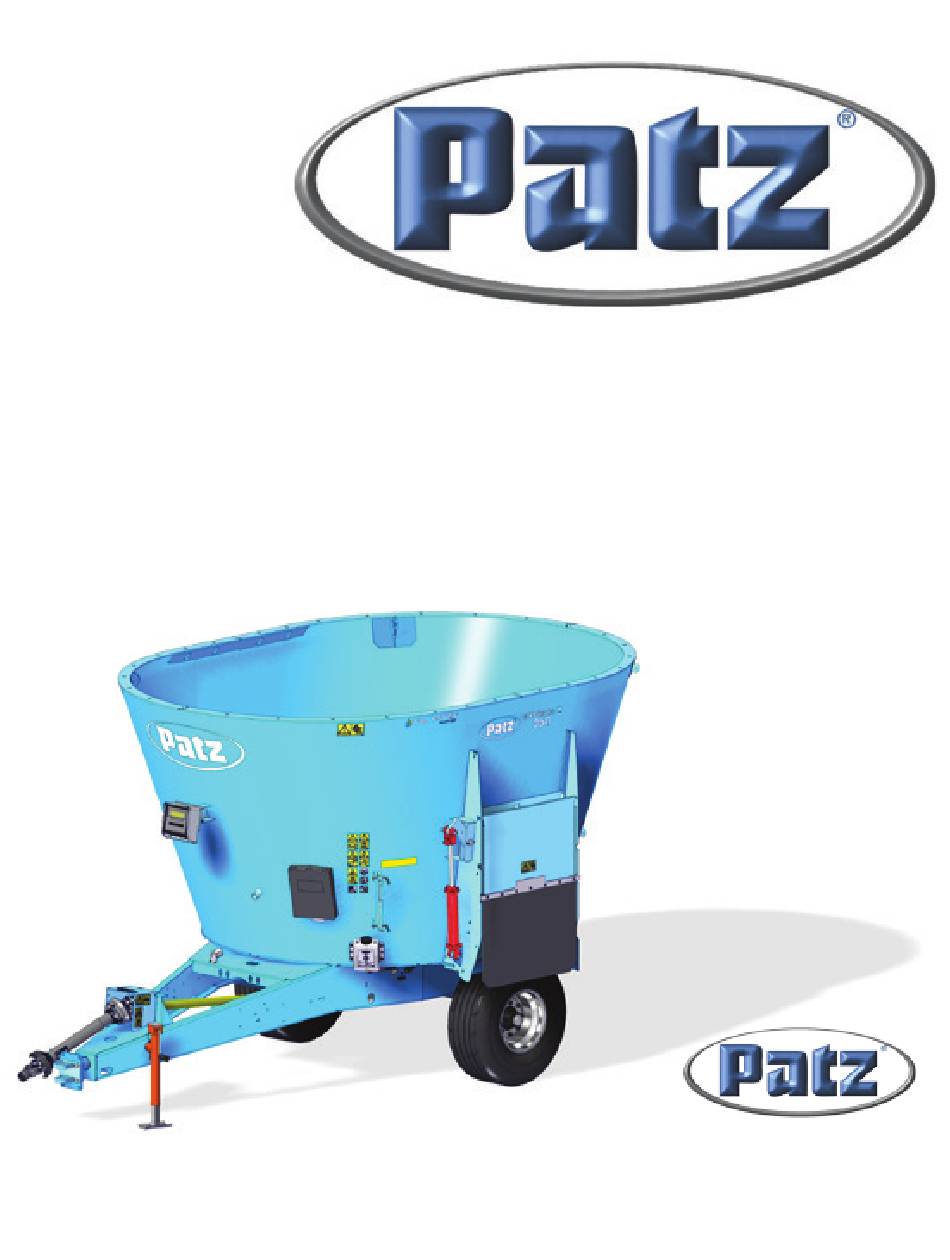

Patz Corporation 800 II Series Operator's Manual

Trailer vertical mixer
Table of Contents

Advertisement

Quick Links

800 Series II Trailer Vertical Mixer
270 & 350
Operator's
Manual
Patz Corporation
917 Business 141, P.O. Box 7
Pound, WI 54161-0007 U.S.A.
(920) 897-2251 • www.patzcorp.com
PRINTED IN U.S.A.
PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 II Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Patz Corporation 800 II Series

  • Page 1 800 Series II Trailer Vertical Mixer 270 & 350 Operator’s Manual Patz Corporation 917 Business 141, P.O. Box 7 Pound, WI 54161-0007 U.S.A. (920) 897-2251 • www.patzcorp.com PRINTED IN U.S.A. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 2 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 3: Table Of Contents

    Attaching Electrical to Tractor ....................5.6 - 5.7 Road Lights ..........................5.7 Trailing Lights Test Procedure .......................5.8 Electronic Scales .........................5.9 - 5.10 Vertical Mixer ..........................5.9 Power Cable Connection ......................5.10 Alarm / Remote Display / Printer ....................5.10 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 4 Installing 90° Knife Bracket Kit.....................10.2 Installing 4-1/4”, 4-3/4”, and 5-1/2” RAPTOR™ Knife ..............10.3 Installing Selector Valve ......................10.4 Installing Discharge Chute Onto Side Discharge .................10.5 Installing Discharge Slider Pan ....................10.5 Installing Battery Holder .......................10.6 Installing Viewing Ladder ......................10.6 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 5 Troubleshooting Table .......................12.1 - 12.4 Electronic Scale System Trouble Shooting Flow Chart ...............12.5 Section 13: Warranty ..........................13.1 - 13.4 Limited Warranty on Machines ....................13.1 Limited Warranty on Planetary, 2-Speed, and Split Drive Gearbox ..........13.3 Prorated Warranty ........................13.4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 6 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 7: General Information

    If you have any questions or comments regarding Operator’s Manual this manual or any Patz product, please contact your local Patz Dealer or Patz Corporation Technical The Patz OPERATOR’S MANUAL contains valuable Support Staff for immediate assistance. information for machine set-up, operation, maintenance, and product warranty.
  • Page 8: Determining "Left" Side And "Right" Side

    General Information Determining “LEFT” Side and “RIGHT” Side Rear Right Left Front Rear Left Right Front PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 9: Principle Of Operation

    Machines are tested and approved for the safety of operators, auxiliary equipment, and the operating environment. Notice: Patz Corporation will not be liable for damage incurred by exceeding specifications. The 800 Series II Vertical Mixer utilizes a single vertical screw to combine material fast and efficiently.
  • Page 10: Intended Use

    Prohibited Usage Notice: Patz Corporation is not liable for damage incurred by exceeding specifications. Do not make any unauthorized modifications to machine. Use of this machine not within published manufacturer...
  • Page 11: Electro-Magnetic Compatibility (Emc)

    Translations Other translations of this manual may exist. Contact your Patz Dealer or Patz Corporation. Notice: The English version of this Operator’s Manual shall always prevail in case of any discrepancy or inconsistency between English and its translation.
  • Page 13: Safety Information

    Throughout this manual you will find the word “Note” followed by additional information about a step, procedure, or other information in the manual. The word “Note” is not intended to address personal safety or property damage. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 14: Operate Equipment Safely

    18. Do not load machine unless it is hitched to the 7. Do not use machine or attachments as a lift, ladder, tractor. or platform for working at heights. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 15: Personal Safety

    7. Keep all safety signs clean, readable, and visible must maintain a minimum distance of 12 inches at all times. Replace any damaged safety signs (305mm) from installed magnets. immediately. 8. Manual or hand loading of machine is prohibited. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 16: Machine Safety

    17. Turn off and lockout power after machine use. machine. 9. Keep all safety signs clean, readable, and visible at all times. Replace any damaged safety signs immediately. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 17: Transportation Safety

    11. Machine relies on tractor braking system and tractor 23. DO NOT EXCEED 20 MPH (32KPH). weight to control and stop the unit. Use a tractor of sufficient size, weight, and horsepower to meet all requirements. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 18: Hydraulic Safety

    Improper repairs product, seek immediate medical attention. Serious will fail suddenly and create a hazardous condition. infection and/or toxic reaction may result from petroleum-based containments penetrating the skin surface. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 19: Maintenance Safety

    10. Routinely inspect and properly maintain, adjust, and secure all guards, shields, attachments, and other components. 11. When conducting general machine wheel or axle maintenance, use appropriate safety-stand with adequately rated capacity for machine weight. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 20: Fire And Explosion Prevention

    Follow the information in the SDS and on manufacturer containers, as well as the information in this manual, when you service the machine. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 21: Safety Signs

    Read and follow all safety signs on your machine and in this manual. Replace damaged safety signs immediately. Become familiar with all controls. Contact your Patz Dealer or Patz Corporation for replacement safety signs. Note: The number in [ ] following the location of the safety sign is the number of safety signs on the machine.
  • Page 22 • Do not operate without all guards and shields in place. Failure to comply will result in death or serious injury! PA-28471 Located on primary driveline outer guard tube [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 23 • Do not operate without all guards and shields in place. • Stay away, Stay off. • Stay clear of rotating auger. Failure to comply will result in death or serious injury! PA-28223 Located on lower right side of discharge door [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 24 WARNING: Falling or tripping from elevated position! • Stay a safe distance from the machine. Failure to comply could result in death or serious injury! PA-28220 Located on left front side of the mixing chamber [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 25 PTO shaft prior to cleaning, adjusting, or servicing machine. Failure to comply could result in death or serious injury! PA-28019 Located on left front side of the mixing chamber [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 26 • Stay clear of moving parts. • Stay a safe distance from the machine. Failure to comply could result in death or serious injury! PA-28459 Located on both sides of side discharge conveyor [2]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 27 2. Consult technical manual for proper service procedures. Failure to comply may result in minor or moderate injury! PA-28017 Located on left front side of the mixing chamber [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 28 ® Contact Information for Patz Corporation. PATZ CORPORATION P.O. Box 7 Pound, WI 54161-0007 U.S.A (920) 897-2251 • www.patzcorp.com PA-28458 Located on inside back wall of manual case [1]. PRINTED IN U.S.A. PA-28458 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 29 • The scale indicator and weigh bars should not be cleaned by pressure washer. These items can be damaged by moisture forced in by the high pressure washer. PA-28334 Located on left front side of the mixing chamber [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 30 1. Replace shear bolt only with those approved for use with this machine. 2. See Operator’s Manual. 3. Non-compliance will void all power train warranty. PA-23092 Located on the front of trailer tongue behind PTO guard [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 31 [2]. Located on front of side discharge conveyor facing rear of mixer [1]. Notice: Tape, Orange Fluorescent. • Provides extra visibility to overtaking vehicles. PA-20902 Located on front of side discharge conveyor facing rear of mixer [1]. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 32 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 33: Shipping Information

    Fig. 3 Tie down locations on back of mixer trailer unloading. Note: For illustration, chains are shown on one side only. All four corners should be secured. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 34: Grade 80 (P-8) Sling Chain Working Limits (Lbs

    STORE CHAINS in a clean dry area, preferably by DO NOT use force to place hook into position. hanging on walls or racks rather than placing chains on floors where they are subject to abuse. DO NOT carry unbalanced loads. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 35: Procedure For Loading/Unloading With Overhead Crane

    4. Lift machine straight up and drive truck/trailer out from beneath. Lower machine to firm, level surface. Avoid swinging or bouncing machine while suspended. 5. Properly position and block/chock vertical mixer wheels prior to removing chains/straps. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 36 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 37: Setup Information

    D - Nut, Hex 1/2-13NC Lock B - Secondary Driveline Input E - PTO Shear Clutch Shaft F - Primary PTO Shaft C - Bolt, Hex 1/2-13NC x 2-1/4 G - Anti-Spin Chain Gr 8 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 38: Installing Hitch To Mixer Trailer

    E - Washer, Lk 5/8 L - Washer, Lock 3/4 F - Nut, Hex 5/8-11NC M - Nut, Hex 3/4-10NC G - Bolt, Hex 1-8NC x 4 Gr 8 N - Flange Bushing, 1-1/4 ID PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 39: Operating Information

    Match the right tractor PTO spline and speed with the PTO driveshaft provided with the implements. This will assure proper geometry and operating speed. Never operate 540 RPM implements at 1000 RPM. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 40: Hydraulic Requirements

    2 : 1 or Less 10 mph (16kph) roadways. > 2 : 1 Do not tow Est. Gross Weight Loaded Lbs (Kg) 11650 (5284) 13850 (6282) MILE/H KM/H Table 3 PA-28343 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 41: Connecting Mixer To Tractor

    B - Drawbar Hitch Pin Hole G - Hitch Load Bearing Surface C - Tractor PTO Stub Shaft H - Tractor Drawbar Load D - Jack Stand Bearing Surface E - Jack Stand Foot PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 42 E - Jack Stand Foot M - Tractor Hitch machine on public roadways. F - Mixer Hitch N - Jack Stand Holder I - Hitch Pin O - Jack Stand Pin J - Click Pin PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 43: Installing Pto Shaft To Tractor

    4. Hook anti-spin chain (E) into side of tractor master shield (A) (Fig. 3). Fig. 3 A - Tractor Master Shield D - Tractor PTO Stub Shaft B - PTO Locking Collar E- Anti-Spin Chain C - PTO Shaft PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 44: Attaching Hydraulic Hoses To Tractor

    Fig. 1 3. Install 7-pin electrical connector (B) to tractor electrical outlet (A) (Fig.1). A - Tractor Electrical Outlet B - 7-Pin Electrical Connector C - 7-Pin Holder D - Mixer Trailer Fig. 2 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 45: Road Lights

    80A peak loads without a significant voltage drop. Brake/Stop Right-Hand Hazard and Green Turn Signal Brown Running Lights/Tail Lights Switched Power Blue (12 volt) Table 1 A - Tractor Electrical Outlet B - 7-Pin Electrical Connector PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 46: Trailing Lights Test Procedure

    LH Turn Signal On / Brakes Applied Flashing LH Turn Signal On / Brakes Unapplied Flashing RH Turn Signal On / Brakes Applied Flashing RH Turn Signal On / Brakes Unapplied Flashing Table 1 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 47: Electronic Scales

    AC/DC Converter BLACK WHITE J BOX CONNECTION Dinamica Generale ® Attach weigh bar wires with connectors directly to underside of indicator. Close off extra port with sensor cap (PA-24655). PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 48: Power Cable Connection

    Number a convenient place. White Ground Black Work Lamps Left-Hand Hazard and Yellow Turn Signal Brake/Stop Right-Hand Hazard and Green Turn Signal Brown Running Lights/Tail Lights Switched Power Blue (12 volt) Table 1 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 49: Operation

    Do not exceed 70% of mixing capacity for the first five loads with a new machine. This will sufficiently polish the mixing chamber, vertical mixing screws, and discharge system to reduce friction, enhance material flow, and minimize drive system stress. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 50: Loading The Mix

    Machine performance may vary by ingredients and conditions. Experiment and adjust loading sequence, knife configuration, and restrictor plates to obtain desired blend result. WARNING: Make sure everyone is clear of the mixer before starting tractor engine or beginning operation. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 51: Restrictor Plates

    Note: Make note of specific restrictor settings in individual ration or recipe instructions for optimal machine performance and blend quality and consistency. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 52: Undersized Loads

    Shut off tractor, remove ignition key, verify all moving parts have stopped, and disconnect PTO shaft before adjusting or servicing. Failure to comply will result in death or personal injury. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 53: Unloading The Mix

    Fig. 3 4. To stop feed flow, shut discharge door. 5. To start feed flow, raise discharge door. 6. Close discharge door when desired amount is dispensed. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 54: Side Discharge Conveyors

    86.9” (2.21 m) Dimension 36” Discharge 54” Discharge 32.4” (823 mm) 38.0” (965 mm) 41.9” (1064 mm) 58.2” (1478 mm) 25.4” (645 mm) 32.3” (820 mm) 18.5” (470 mm) 25.4” (645 mm) Fig. 5 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 55: Overnight Or Short Term Storage

    I - Jack Stand Pin D - Hydraulic Hose Holder J - Crank Handle E - 7-Pin Electrical Connector K - Jack Stand Shoe F - 7-Pin Connector Holder L - Hitch Pin Fig. 4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 56: Scale Operation

    7. Two wires connect the scale system to the power source, one to the positive terminal (white wire) and one to the negative terminal (black wire). 8. See the electronic scale system troubleshooting flow chart in the back of this manual. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 57: Lubrication

    Lubrication Designation Fig. 2 Time Pumps From Hours Symbol Grease Gun Fig. 3 Fig. 7 Fig. 3 Fig. 1 Fig. 8 Fig. 10 Fig. 6 Fig. 2 Fig. 5 Fig. 4 Fig. 9 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 58: Discharge Conveyor Chain

    Fig. 8 Fig. 9 Discharge Conveyor Chain (Fig. 10) 1. An initial lubrication of discharge chain will minimize wear and noise. 2. Use food grade cooking oil. 3. Lubricate as required. Fig. 10 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 59: Checking Oil In Planetary Reducer

    Most local auto shops or B - Reservoir E - Clamp, Hose 1/2-29/32” SS RECYCLE other collection sites recycle oil. C - PFTG Plug 1/8 NPT F - Drain Plug USED OIL PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 60 B - Reservoir F - Drain Plug C - PFTG Plug 1/8 NPT G - Reservoir Hose, 1/2” ID D - Breather Hose, 3/8” ID H - HFTG, EL 90 3/8NPT x 1/2NIP PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 61: Maintenance

    *Change Oil in Planetary Reducer 7.3 - 7.4 * Intervals after first 50 hours could be longer if oil sampling analysis allows. Oil sample kits are available through your Patz Dealer or local oil supply company. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 62: General Maintenance

    6 years old. CAUTION: Shut off tractor, remove ignition key, verify all moving parts have stopped, and disconnect PTO shaft before adjusting or servicing. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 63: Maintenance Log

    This log provides the opportunity to keep track of service performed and who actually did the service. DATE SERVICE PERFORMED BY: (Signature) PA-24067 10/09 Copyright ©2009-2015 Patz Corporation PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 64: Cleaning Side Discharge Conveyor Boot End

    Fig. 2 6. Torque all wheel nuts (C) to 170 ft-lbs (230 N•m) in A - Tire Assembly C - Wheel Nut, 5/8-18NF sequence shown in (Fig. 2). B - Hub Assembly PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 65: Replacing Wheel Bearings And Seals

    I - Seal, 2-3/4 ID x 3-3/4 OD D - Washer, Flat 1/4 x 1-1/6 x .250 x 2-1/8 J - Outer Bearing Cup E - Outer Bearing Cone K - Inner Bearing Cup F - Hub Assembly PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 66 C - Nut, Hex 1-14NS-2 Spindle J - Outer Bearing Cup D - Washer, Flat 1/4 x 1-1/6 L - Tire Assembly x 2-1/8 M - Wheel Nut, 5/8-18NF E - Outer Bearing Cone PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 67: Replacing Spindle Weigh Bar

    E - Washer, Lock 5/8 B - Hub Assembly F - Nut, Hex 5/8-11NC C - Weigh Bar, Spindle G - Weigh Bar Captor D - Bolt, Hex 5/8-11NC x 5 Gr. 5 H - Load Tag PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 68: Replacing Hitch Weigh Bar

    (B) and weigh bar captor (G). Torque bolt (E) to Gr. 8 280 ft-lbs (379 N•m) (Fig. 2). 9. Install hitch assembly (A) onto front of weigh bar (B) using bolt (C) and nut (D) (Fig. 1). PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 69: Tires And Wheels

    Torque sequence per 8 hole diagram (Fig. 1). Tighten nuts to 50 ft-lbs first, then to proper torque as specified in Fig. 2 Table 2 above. Torque after first load and after 50 hours of use. Check torque periodically thereafter. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 70: Maintaining Vertical Mixing Screw

    The kicker (D) should not be more than 1/2” (13 mm) above the mixing chamber floor and flush to the bottom of the screw tube. Replace screw kicker (D) if worn or damaged (Fig. 1). PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 71: Remove Metal From Tub Magnet

    8.11 Maintenance REMOVE METAL FROM TUB MAGNET 12” (305 mm) PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 72: Replacing Flow Control/Sequence Valve Cartridge

    5. Adjust the sequence valve (C) as needed. See “Adjustments” section of this manual for sequence valve adjustments. Fig. 2 A - Cartridge, Flow Reg. 10 gpm or 14 gpm C - Sequence Valve PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 73: Maintaining Hour Meter

    D - Magnet K - Nut, Hex #6-32NC E - Meter Wire L - Planetary Input Shaft F - Hour Meter Mount M - Sensor Nut G - Bolt, Hex 1/4-20NC x 1” Fig. 4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 74: Replacing Shear Bolt

    C - Spare Shear Bolt Application Description Part No. 540 RPM Primary PTO (5) Bolts, Hex 5/16-18NC x 2” Gr. 8, (5) Nuts, Hex 5/16-18NC Nyl Insert Lk, PA-25337 (1) Shear Bolt Decal PA-23092 Table 1 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 75: Adjustments

    G - Bearing Flange C - Conveyor Chain H - Drive Sprocket End D - Nut, Hex 1/2-13NC I - Slat, Conveyor Chain E - Adjuster Bracket RIGHT SIDE OF CONVEYOR Fig. 4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 76: Adjusting Sequence Valve

    Repeat until desired operation is achieved (Fig. 1). If chain rotates in wrong direction, interchange hoses at the hydraulic motor. If conveyor does not operate as expected, inspect hose connections and routings for accuracy. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 77: Adjusting Hitch

    C - Bolt, Hex 5/8-11NC x 2 Gr 5 G - Washer, Lock 3/4 D - Washer, Lk 5/8 H - Nut, Hex 3/4-10NC Mixer Mixer Tractor Tractor Mixer Mixer Tractor Tractor Fig. 4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 78 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 79: Section 10: Options

    D - Nut, Hex 5/8-11NC B - Screw, Hex Skt Button Hd E - Hole for Less Aggressive 5/8-11NC x 2-1/2” C - Washer, Lock 5/8 Fig. 3 21-1/2” Knife (Black) Fig. 4 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 80: Installing Knife Backing Plate

    D - Nut, Hex 5/8-11NC 5/8-11NC x 2” E - Knife 3. Position 90° knife in different set of holes on vertical mixer screw for best cutting of the material entering the mixer. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 81: Installing 4-1/4", 4-3/4", And 5-1/2" Raptorâ„¢ Knife

    B, C, D Screw Rotation Fig. 2 A - RAPTOR™ Knife C - Washer, Lock 5/8” B - Screw, Hex Skt Button Hd D - Nut, Hex 5/8-11NC 5/8-11NC x 2” PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 82: Installing Selector Valve

    D - Port Tractor Circuit K - Washer, Lk 3/8” E - Port-1st Cylinder Circuit L - Nut, Hex 3/8-16NC F - Port-2nd Cylinder Circuit M - HFTG 90° Elbow G - Selector Valve TRACTOR Fig. 2 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 83: Installing Discharge Chute Onto Side Discharge

    For slider pan installation, refer to instructions packed with slider pan. PB-5196 Slider Pan Magnet Assy., slider pan includes PA-21418 Slider Pan Instructions. PB-5259 Slider Pan Assy., slider pan includes PA-21418 Slider Pan Instructions. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 84: Installing Battery Holder

    (D) on the top (Fig. 1). Hardware included with ladder. B,C,D Fig. 1 A - Ladder C - Washer, Plain 1/2” B - Bolt, Hex. 1/2-13NC x 1-1/4” D - Nut, Hex. Nyl Lk 1/2-13NC PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 85: Installing Side Discharge Conveyor With Hydraulic Lift System

    H - Discharge Mount Frame Gr. 5 I - Bolt, Carr 3/8-16NC x 1” D - Nut, Hex Flange Whiz Lk J - Washer, Lk 3/8” 5/16-18UNC K - Nut, Hex 3/8-16NC E - Deflector Bar PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 86: Attaching Stop Chain

    C - Discharge Conveyor D - Bolt, Carr 3/8-16NC x 1-1/4” E - Washer, Plain 3/8” F - Nut, Hex Ctr Lk 3/8-16NC G - Top Chain Mount Bracket H - Discharge Mount Frame PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 87: Attaching The Hydraulic Cylinder

    B - Bracket, Cylinder Mount G - Cotter Pin, 1/4 x 2” C - Pin and Cotter Pin, 1/2 x 2” H - Clevis Bolt D - Pivot Link I - Chain Mount Bracket PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 88: Attaching Hydraulic Hoses, Connections, And Sequence Valve

    F - HHose 3/8 x 160” or 211” x 06FSJ (Lower Cyl. Port) 08FSJ x 08FSJ (Upper Motor Port) G - HHose 3/8 x 160” or 211” 08FSJ x 08FSJ (Lower Motor Port) PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 89 U - Nut, Hex Flange Whiz Lk K - HHose 1/4 x 162” 06FSJ 5/16-18NC x 06FSJ (Upper Cyl. Port) L - HHose 1/4 x 162” 06FSJ x 06FSJ (Lower Cyl. Port) Fig. 10 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 90 08FSJ x 08FSJ (Lower W - HHose 3/8 x 124” 08FSJ x TO TRACTOR Motor Port) 08FSJ (To Tractor) I - Hydraulic Cylinder, 2” Bore X - HFTG Male Tip 08Forb x 8” Stroke Fig. 14 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 91: Installing Side Discharge Conveyor With Manual Lift System

    G - Washer, Lk 3/8” 08FSJ (Lower Motor Port) H - Nut, Hex 3/8-16NC D - HHose 3/8 x 160” 08FSJ x I - Discharge Mount Pin 08FSJ (Upper Motor Port) J - Valve, Flow Reg. 10GPM PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 92 K - Trailer Tongue 08FSJ L - Bolt, Hex. 5/16-18NC x 2-3/4” S - HFTG Male Tip 08FORB M - Nut, Hex. Whiz Lk 5-16-18NC N - HFTG Elbow 90° 08MORB x 08MJ PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 93: Installing Indicator Extension Arm

    (D) and nut (E) onto threaded rod (B) (Fig. 1). Tighten nut (E). A - Cone Top B - Threaded Rod (LH) C - Vertical Mixer Screw D - Washer, Plain 5/8” Fig. 1 E - Nut, Hex 5/8-11NC LH PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 94: Installing Rubber Side Extensions

    I - Nut, Hex 3/8-16NC Flange D - Bolt, Hex 7/16-14NC x 1-1/2” Whiz Lk E - Washer, Plain 7/16” J - Rubber Side Extension F - Nut, Hex 7/16-14NC Flange Whiz Lk PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 95 (H). Drill (2) 13/32” Holes Fig. 4 H - Bolt, Carr 3/8-16NC x 1-1/2” I - Nut, Hex 3/8-16NC Flange Whiz Lk J - Rubber Side Extension PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 96: Installing Chain Hay Retainer Kit

    F - Retainer Chain Tub Rail C - Bolt, Hex 7/16-14NC x 2” G - Quick Link, 5/16” Gr. 5 D - Spacer, 1/2 x 1-1/4 x 3/16” Fig. 4 Front of Mixer PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 97: Installing Pipe Hay Retainer Kit

    C - Top Rail of Mixer H - Bolt, Hex 3/8-16NC x 2-1/4” D - Bolt, Hex 1/2-13NC x 1-1/4” I - Nut, Hex 3/8-16NC Nyl Lk E - Washer, Plain 1/2” Std. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 98 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 99: Section 11: Specifications

    1.5 times the weight of a loaded TUB FLOOR THICKNESS 1/2” (13 mm) mixer. The estimated weight of this mixer and max load TUB WALL THICKNESS 1/4” (6 mm) is 11650 lbs. TUB TOP RIM THICKNESS 3/8” (9 mm) PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 100 1.5 times the weight of a loaded TUB FLOOR THICKNESS 1/2” (13 mm) mixer. The estimated weight of this mixer and max load is 13850 lbs. TUB WALL THICKNESS 1/4” (6 mm) TUB TOP RIM THICKNESS 3/8” (9 mm) PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 101: Section 12: Troubleshooting

    Hydraulics are not attached to the Check to make sure all hydraulic hoses 10.10 - 10.14 hydraulic motor correctly. are attached to the correct hydraulic motor port. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 102 Check plumbing. 10.10 hydraulic motor check valve. Inclined discharge Contamination in sequence valve. Toggle lever back and forth, freeing conveyor settles debris. (Faster than 0.75 in/ Leakage at tractor spool valve. Service tractor hydraulics. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 103: Troubleshooting Table

    Service tractor hydraulics. open or does not stay closed. Leakage at selector spool valve. Install ball valves at door cylinder. External leakage in system. Inspect system for external leakage, replace components as necessary. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 104 Sensor magnet fell off planetary shaft. Replace magnet. 8.13 Lost sensor. Replace hour meter. 8.13 Sensor too far from magnet. Adjust sensor. 8.13 Excessive tire wear. Low tire pressure. Inflate tire. Wrong tire size. Replace tire. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 105: Electronic Scale System Troubleshooting Flow Chart

    Any differences could indicate a bad 4. Write down the indicator reading with the weigh bar or a structural problem. weigh bar connected. PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 106 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 107 Warranty claims with respect to tires, submersible pumps, motors, engines and electronic scales are to be submitted to the applicable manufacturer or its local representative. This literature cancels and supersedes previous literature on this subject. August 2005 J-1338 Rev. 4/16 Copyright ©1992-2016 Patz Corporation PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 108: Section 13: Warranty

    13.2 Warranty THIS PAGE LEFT INTENTIONALLY BLANK PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 109 • The maintenance log found in the machine box on the mixer has to be current; logging all oil changes. • A complete Rations Analysis Worksheet (PA-18468). (over) PA-20861 Rev. 5/15 Copyright ©2003-2016 Patz Corporation PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 110: Prorated Warranty

    * The pro-rated warranty schedule runs non-stop from the time the mixers are placed in service until 60 months or 10,400 hours expires, whichever occurs fi rst. * Complete PA-21250, Transfer of Patz Mixer Warranty form, and forward to Patz Technical Support Department. Copyright ©2003-2016 Patz Corporation PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...
  • Page 111 PA-21727 Rev. 17/04 Copyright ©2017 Patz Corporation...

This manual is also suitable for:

800 ii 270800 ii 350

Table of Contents
