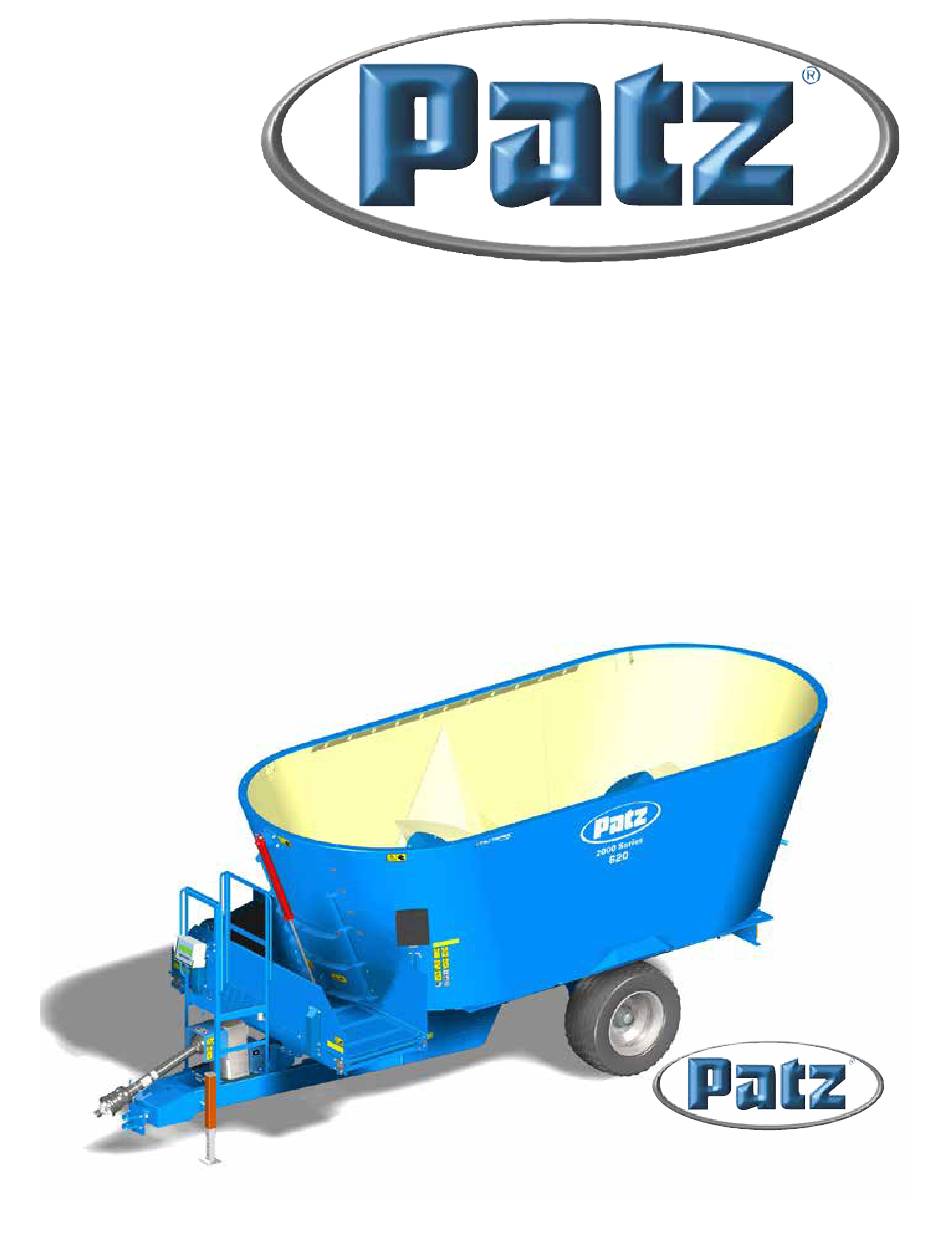

2000 Series Trailer Vertical Mixer

520, 520XH, 620, 620XH, 740, 740XH

Operator's

Manual

Patz Corporation

917 Business 141, P.O. Box 7

Pound, WI 54161-0007 U.S.A.

(920) 897-2251 • www.patzcorp.com

PRINTED IN U.S.A.

Table of Contents

Troubleshooting

Need help?

Do you have a question about the 2000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Patz Corporation 2000 Series

Page 1 2000 Series Trailer Vertical Mixer 520, 520XH, 620, 620XH, 740, 740XH Operator’s Manual Patz Corporation 917 Business 141, P.O. Box 7 Pound, WI 54161-0007 U.S.A. (920) 897-2251 • www.patzcorp.com PRINTED IN U.S.A. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 3: Table Of Contents
Trailing Lights Test Procedure ...........................5.8 Wiring Electronic Scales ......................... 5.9 - 5.10 Vertical Mixer ..............................5.9 Weigh-Tronix ..............................5.9 ® Digi-Star ...............................5.9 ® Dinamica Generale ............................5.9 ® Power Cable Connection ..........................5.10 Alarm/Remote Display/Printer ........................5.10 Wiring Powershift Control Box.........................5.11 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 4 Adjusting Hitch ..............................9.2 Adjusting Sequence Valve ..........................9.3 Timing Mixing Screws ............................9.3 Repositioning Flat Fixed Discharge Conveyor ....................9.4 Repositioning 41” and 53” Incline Discharge Conveyor..................9.5 Adjusting 41” and 53” Incline Discharge Height ....................9.6 Adjusting Sliding Discharge Conveyor.......................9.6 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 5 Electronic Scale System Trouble Shooting Flow Chart ...................12.5 Section 13: Warranty ..............................13.1 - 13.4 One-Year/2080-Hour Limited Warranty on Machines..................13.1 Extended Prorated 60-Month/10,400 Hours Limited Warranty on Vertical Mixer Planetary, 2-Speed, and Split Drive Gearboxes ....................13.3 - 13.4 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 7: General Information
If you have any questions or comments regarding Operator’s Manual this manual or any Patz product, please contact your local Patz Dealer or Patz Corporation Technical The Patz OPERATOR’S MANUAL contains valuable Support Staff for immediate assistance. information for machine set-up, operation, maintenance, and product warranty.
Page 8: Determining "Left" Side And "Right" Side Of Mixer
General Information DETERMINING “LEFT” SIDE AND “RIGHT” SIDE OF MIXER RIGHT REAR LEFT FRONT LEFT REAR RIGHT FRONT PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 9: Principle Of Operation
Notice: Patz Corporation will not be liable for damage incurred by exceeding specifications. The 2000 Series Vertical Mixer utilizes two large vertical screws to combine material fast and efficiently. Patz Trademarks/Patents/Patent Pending Protected Products: ®...
Page 10: Intended Use
PROHIBITED USAGE Notice: Patz Corporation is not liable for damage incurred by exceeding specifications. Do not make any unauthorized modifications to machine. Use of this machine not within published manufacturer...
Page 11: Electro-Magnetic Compatibility (Emc)
Patz Corporation warranty null and void. TRANSLATIONS Other translations of this manual may exist. Contact your Patz Dealer or Patz Corporation. Notice: The English version of this Operators Manual shall always prevail in case of any discrepancy or inconsistency between English and its translation.
Page 13: Safety Information
Throughout this manual you will find the word “Note” followed by additional information about a step, procedure, or other information in the manual. The word “Note” is not intended to address personal safety or property damage. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 14: Operate Equipment Safely
18. Do not load machine unless it is hitched to the 7. Do not use machine or attachments as a lift, ladder, tractor. or platform for working at heights. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 15: Personal Safety
7. Keep all safety signs clean, readable, and visible must maintain a minimum distance of 12″ (305 mm) at all times. Replace any damaged safety signs from installed magnets. immediately. 8. Manual or hand loading of machine is prohibited. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 16: Machine Safety
17. Turn off and lockout power after machine use. 9. Keep all safety signs clean, readable, and visible at all times. Replace any damaged safety signs immediately. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 17: Transportation Safety
12. Machine relies on tractor braking system and tractor obstruction. weight to control and stop the unit. Use a tractor of sufficient size, weight, and horsepower to meet all 24. DO NOT EXCEED 20 MPH (32 KM/H). requirements. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 18: Hydraulic Safety
Improper repairs product, seek immediate medical attention. Serious will fail suddenly and create a hazardous condition. infection and/or toxic reaction may result from petroleum-based containments penetrating the skin surface. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 19: Maintenance Safety
10. Routinely inspect and properly maintain, adjust, and secure all guards, shields, attachments, and other 19. Verify all guards, shields, and attachments are in components. place and properly secured when maintenance is complete. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 20: Fire And Explosion Prevention
This information indicates the associated risks and you use them. will help you service the machine safely. Follow the information in the SDS, and on manufacturer containers, as well as the information in this manual, when you service the machine. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 21: Safety Signs
Read and follow all safety signs on your machine and in this manual. Replace damaged safety signs immediately. Become familiar with all controls. Contact your Patz Dealer or Patz Corporation for replacement safety signs. Note: The number in [ ] following the location of the safety sign is the number of safety signs on the machine.
Page 22 • Do not operate without all guards and shields in place. Failure to comply will result in death or serious injury! PA-28471 Located on primary driveline outer guard tube [1]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 23 Do not remove twine or wrap from commodities in mixing chamber. PA-28444 Failure to comply will result in death or serious injury! PA-28444 Located on side discharge door shield beneath deflector bar [1]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 24 PA-28220 WARNING: Falling Object! • Stay a safe distance from the machine. Failure to comply could result in death or serious injury! PA-28221 Located on left front side of the mixing chamber [1]. PA-28221 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 25 • Do not operate without all guards and shields in place. • Stay clear of moving parts. Failure to comply could result in death or serious injury! PA-28449 Located on side(s) of front and side discharge conveyor [1-2]. PA-28449 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 26 • If machine becomes stuck in sand, mud, snow, or ice, pull from front hitch only. Failure to comply may result in minor or moderate injury! PA-28083 PA-28083 Located on rear of trailer frame [1]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 27 Do not use as step. • Do not operate without all guards and shields in place. Failure to comply may result in minor or moderate injury! PA-26347 PA-26347 Located on both sides of secondary driveline guard [2]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 28 PA-28334 Located on left front side of the mixing chamber [1]. Notice: ATF Only! Automatic Transmission Fluid Only! PA-28599 Located on the side of the 2-speed powershift transmission [1]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 29 Notice: Replace Shear Bolt. 1. Replace shear bolt only with those approved for use with this machine. 2. See Operator’s Manual. 3. Non-compliance will void all power train warranty. PA-21292 Located on trailer tongue [1]. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 30 Note: Manual(s) and warranty information found inside. ® Contact Information for Patz Corporation. PATZ CORPORATION P.O. Box 7 Pound, WI 54161-0007 U.S.A PA-28458 Located on inside back wall of manual case [1]. (920) 897-2251 • www.patzcorp.com PRINTED IN U.S.A. PA-28458 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 31: Shipping Information
Tow machine to safe parking. 7. When machine is located at center or front of truck/ trailer, use side load dock or overhead crane for unloading. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 32: Grade 80 (P-8) Sling Chain Working Limits (Lbs
DO NOT use force to place hook into position. STORE CHAINS in a clean dry area, preferably by hanging on walls or racks rather than placing chains on DO NOT carry unbalanced loads. floors where they are subject to abuse. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 33: Procedure For Loading/Unloading With Overhead Crane
Note: 2000 Series mixer lifting points are located in either the top (4) corners beneath the top rim or the bottom plate of the mixer. To lift mixer using bottom plate, remove (4) setscrews, 7/8-9NC x 7/8 Lg, shown in Fig.
Page 35: Setup Information
B - Secondary Driveline Shaft F - Shear Clutch C - 2-Speed/Powershift Gearbox G - Primary PTO Shaft Shaft H - Anti-Spin Chain D - Bolt, Hex 5/8-11NC x 3-1/2 Gr 8 Fig. 3 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 36: Installing Hitch To Mixer Trailer
O - Bolt, Hex 3/4-10NC x 7 Gr 8 G - Bolt, Hex 1-8NC x 4-1/2 Gr 8 P - Washer, Lock 3/4 H - Nut, Hex 1-8NC Center Lk Q - Nut, Hex 3/4-10NC I - Bull Pull/Articulated Ball Hitch Bracket PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 37: Adjusting Hitch Pin Size
Articulated Ball 1-1/2” 1-1/4” CAT3 * Bull Pull CAT4/5 Hitch is shipped with 1-1/2” insert already installed. Table 1 Fig. 7 J - Bull Pull Hitch K - Articulated Ball Hitch R - Bushing Insert PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 38: Initial Discharge Setup
A - Spring Loaded Stop Flat Fixed Conveyors 1. Flat fixed conveyors can be repositioned on their supports. Reposition conveyor on discharge conveyor support to desired position. See “Repositioning Fixed Incline Discharge Conveyor” section. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 39: Operating Information
2-Speed / Powershift Cont. Run Cont. Run Mixer Size HP (kW) HP (kW) HP (kW) 90 (67) 70 (52) 90 (67) 120 (89) 80 (60) 120 (89) 150 (112) 100 (75) 150 (112) Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 40: Hydraulic Requirements
Est. Gross Weight Loaded Lbs (Kg) *25,500 (11 567) 520XH *26,750 (12 134) *29,200 (13 245) 620XH *30,750 (13 948) MILE/H KM/H *33,100 (15 014) 740XH *34,650 (15 717) PA-28343 Table 3 *Weights with popular options PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 41: Connecting Mixer To Tractor
B - Drawbar Hitch Pin Hole G - Hitch Load Bearing Surface C - Tractor PTO Stub Shaft H - Tractor Drawbar Load D - Jack Stand Bearing Surface E - Jack Stand Foot PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 42 L - Tractor Hitch Do not exceed 20 mph (km/h) when towing F - Mixer Hitch M - Jack Stand Holder machine on public roadways. I - Hitch Pin N - Jack Stand Pin PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 43: Attaching Pto Shaft To Tractor
4. Hook anti-spin chain (E) into side of tractor master shield (A) (Fig. 3). Fig. 3 A - Tractor Master Shield D - Tractor PTO Stub Shaft B - PTO Locking Collar E- Anti-Spin Chain C - PTO Shaft PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 44: Attaching Hydraulic Hoses To Tractor
90°, then pulling it out (Fig. 2). 3. Install 7-pin electrical connector (B) to tractor electrical outlet (A) (Fig.1). Fig. 2 A - Tractor Electrical Outlet C - 7-Pin Holder B - 7-Pin Electrical Connector D - Platform PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 45: Road Lights
Brake/Stop by law. Right-Hand Hazard and Green Turn Signal Brown Running Lights/Tail Lights Switched Power Blue (12 volt) Table 1 A - Tractor Electrical Outlet B - 7-Pin Electrical Connector PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 46: Trailing Lights Test Procedure
LH Turn Signal On / Brakes Applied Flashing LH Turn Signal On / Brakes Unapplied Flashing RH Turn Signal On / Brakes Applied Flashing RH Turn Signal On / Brakes Unapplied Flashing Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 47: Wiring Electronic Scales
AC/DC CONVERTER BLACK WHITE WEIGH BAR Dinamica Generale ® J BOX CONNECTION Attach weigh bar wires with connectors directly to un- derside of indicator. Close off extra port with sensor cap (PA-24655). PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 48: Power Cable Connection
Alarm / Remote Display / Printer Brake/Stop Mount the horn/light alarm, remote display, or printer in Right-Hand Hazard and Green a convenient place. Turn Signal Brown Running Lights/Tail Lights Switched Power Blue (12 volt) Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 49: Wiring Powershift Control Box
Fig. 2 Fig. 3 A - Powershift Control Box B - 7-Pin Connector (Wires) C - Green Light D - Pin #7 E - Fuse 15A F - Fuse Holder G - Remote Transmitter PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 51: Operation
Do not exceed 70% of mixing capacity for the first five loads with a new machine. This will sufficiently polish the mixing chamber, vertical mixing screws, and discharge system to reduce friction, enhance material flow, and minimize drive system stress. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 52: Loading The Mix
(H) speed. beginning operation. High speed is usually used for clean-out. High speed may also be used to mix batches less than 15,500 lbs. (7 031 kg.) or when processing round bales of hay. PA-28221 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 53: Restrictor Plates
Note: Make note of specific restrictor settings in individual ration or recipe instructions for optimal machine performance and blend quality and consistency. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 54: Undersized Loads
7. Load round bales with the flat ends up and down. 8. Load additional ingredients. 9. The mixing time depends on the ration being mixed. It will vary. The mixing time required can be found through actual use. PA-28220 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 55: Unloading The Mix
• Do not operate without all guards and shields in place. • Stay clear of moving parts. • Stay a safe distance from the machine. PA-28450 Failure to comply could result in death or serious injury! PA-28449 PA-28459 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 56: Side Discharge (Chute/Hydraulic Chute Optional)
3. Adjust screw speed and discharge door height to control the amount of feed dispensed. 4. To stop feed flow, close discharge door. 5. To start feed flow, raise discharge door. Fig. 4 6. Close discharge door when discharge is complete. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 57: Side Discharge Conveyor
6. To stop feed flow, stop discharge conveyor and/or close discharge door. B - Spring Loaded Stop 7. To start feed flow, start discharge conveyor and/or raise discharge door. 8. Stop discharge conveyor and close discharge door when discharge is complete. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 58: Flat & Flat Reversible Fixed Discharge Conveyor
5. To stop feed flow, stop discharge conveyor and/or close discharge door. 6. To start feed flow, start discharge conveyor and/or raise discharge door. 7. Stop discharge conveyor and close discharge door when discharge is complete. Fig. 10 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 59: Operating 2-Speed Stop-And-Shift Gearbox (If Installed)
Fig. 2 the tractor PTO clutch system, and the A - Lever Bar shear bolt clutch of the primary driveline. B - 2-Speed Indicator Bracket C - Knob Handle PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 60: Operating 2-Speed Powershift Transmission (If Installed)
(15,500 lbs or greater) (7 031 kg or greater) from 1st gear into 2nd gear. This condition will put excessive strain on the tractor engine, the tractor PTO clutch system, and the automatic cut-out clutch of the primary driveline. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 61: Scale Operation
Do not draw weld current through weigh bars by grounding to frame and welding on mixer chamber. Improper grounding when welding may cause sever damage to scale components and voids scale system warranty. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 62: Overnight Or Short Term Storage
I - Jack Stand Pin D - Hydraulic Hose Holder J - Crank Handle E - 7-Pin Electrical Connector K - Jack Stand Shoe F - 7-Pin Connector Holder L - Hitch Pin Fig. 4 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 63: Lubrication
Fig. 3 Fig. 11 Fig. 13 Fig. 4 (Direct Drive, Not Shown) Fig. 1 Fig. 2.1 Fig. 2.2 Fig. 8 Fig. 12 Fig. 7 Fig. 9 Fig. 3 Fig. 6 Fig. 5 Fig. 2.3 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 65: Discharge Conveyor Chain
Fig. 12 Bull Pull Hitch Articulated Ball Hitch Discharge Conveyor Chain (Fig. 13) 1. An initial lubrication of discharge chain will minimize wear and noise. 2. Use food grade cooking oil. 3. Lubricate as required. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 66: Checking Oil In Planetary Reducer
RR-2100 With Cooling Shown A - Reservoir Cap D - Vent Hose B - Reservoir E - Hose Clamp C - PFTG Plug, 1/8 NPT F - 1/4NPT Pipe Plug VM30 Without Cooling Fig. 4 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 67 E - Hose Clamp J - Reservoir Hose Total (Rear) 4.1 gal (15.5L) 3.5 gal (13.2L) G - Oil Fill Valve K - HFTG, Elbow 90º 3/8NPT x H - Valve Lever 1/2 Nip Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 68 J - Reservoir Hose D - Vent Hose K - HFTG, Elbow 90º 3/8NPT x E - Hose Clamp 1/2 Nip F - 1/4NPT Pipe Plug L - Oil Filter Fig. 15 Fig. 16 RR2100 With Cooling PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 69: Changing Oil In Jctt1603 Planetary Reducer (520, 620 Mixer)
C - PFTG Plug 1/8 NPT G - Reservoir Hose, 1/2” ID (H) by loosening hose clamp (E) (Fig. 3). D - Breather Hose, 3/8” ID H - HFTG, EL 90 3/8NPT x 1/2NIP PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 70 E - Clamp, Hose 1/2-29/32” SS B - Reservoir F - Drain Plug C - PFTG Plug 1/8 NPT G - Reservoir Hose, 1/2” ID D - Breather Hose, 3/8” ID H - HFTG, EL 90 3/8NPT x 1/2NIP PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 71: Checking Oil In 2-Speed Gearbox
B - Drain Plug D - Sight Glass local auto shops or other collection sites RECYCLE recycle oil. USED OIL 2-SPEED GEARBOX - G502S/AP502 Oil: Synthetic 75W90 w/EP or Equivalent 10.8 qt. (10.2L) Capacity: Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 72: Checking Fluid In Powershift Transmission
Fig. 1 Old motor oil can be refined, reconditioned or reprocessed to become usable again. Most A - Drain Plug local auto shops or other collection sites RECYCLE recycle oil. USED OIL PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 73 A - Drain Plug C - Sight Glass B - Oil Fill Plug 2-SPEED POWERSHIFT TRANSMISSION Oil: Transmax Dex III Multivehicle ATF (Automatic Transmission Fluid) or equivalent. 5.3 qt (5 L) Capacity: Table 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 75: Maintenance
*Change Fluid in Powershift Transmission 7.10 - 7.11 * Intervals after first 50 hours could be longer if oil sampling analysis allows. Oil sample kits are available through your Patz Dealer or local oil supply company. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 76: General Maintenance
CAUTION: Never service machine while connected to power. Shut off tractor, remove ignition key, verify all moving parts have stopped, and disconnect PTO shaft prior to adjusting or servicing. Failure to comply may result in death or serious injury. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 77: Maintenance Log
This log provides the opportunity to keep track of service performed and who actually did the service. DATE SERVICE PERFORMED BY: (Signature) PA-24067 10/09 Copyright ©2009-2015 Patz Corporation PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 78: Cleaning Side Discharge Conveyor Boot End
(D) (Fig. 2). A - Discharge Conveyor D - Nut, Hex 3/8-16 NC B - Bolt, Carr 3/8-16 NC x 1” E - Rear Cover C - Washer, Lock 3/8 Fig. 2 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 79: Tires And Wheels
Torque sequence per 10 hole diagram (Fig. 1). Tighten nuts to 50 ft-lbs first, then to proper torque as specified in table 2 above. Torque after first load and after 50 hours of use. Check torque periodically thereafter. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 80: Replacing Tire Assembly
6. Torque all wheel nuts (C) to 425 ft-lbs (576 N•m) in sequence shown in Fig. 2. A - Tire Assembly B - Hub Assembly C - Wheel Nut, 3/4-16NF Fig. 2 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 81: Replacing Wheel Bearings And Seals
K - Seal, 4-3/8” ID x 6 OD x 1/2T F - Spindle Washer, 1/4 x 2-1/16 L - Outer Bearing Cup 12. Coat lip of new seal (K) with grease (Fig. 3). M - Inner Bearing Cup PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 82 D - Cotter Pin, 5/16 x 3-1/2” L - Outer Bearing Cup E - Nut, Hex Slotted 2-12NF N - Tire Assembly F - Spindle Washer, 1/4 x 2-1/16 O - Wheel Nut, 3/4-16NF PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 83: Installing Optional Seal Protectors
D - Bolt, Hex 5/16-18NC x 1/2” J - Setscrew 10. Reinstall tire assemblies to each hub, see “Replacing E - Cotter Pin K - Grease Fitting F - Nut, Hex Slotted Tire Assembly” section. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 84: Replacing Spindle Weigh Bar
A - Tire Assembly E - Washer, Lock 5/8 B - Hub Assembly F - Nut, Hex 5/8-11NC C - Weigh Bar, Spindle G - Weigh Bar Captor D - Bolt, Hex 5/8-11NC x 6 Gr. 5 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 85: Replacing Hitch Weigh Bar
D - Nut, Hex 1-8NC Ctr Lk B - Weigh Bar, Hitch E - Bolt, Hex 1-8NC x 5 Gr. 8 C - Bolt, Hex 1-8NC x 4-1/2 Gr. 8 F - Weigh Bar Captor PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 86: Maintaining Mixing Screw
The kicker (D) should not be more than 1/2” (13 mm) above the mixing chamber floor and flush to the bottom of the screw tube. Replace screw kicker (D) if worn or damaged (Fig. 1). PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 87: Maintaining Hour Meter
M - Planetary Input Shaft F - Hour Meter Mount N - 2-Speed Gearbox Shaft G - Bolt, Hex 1/4-20NC x 1” O - Sensor Nut H - Nut, Hex 1/4-20NC Whiz Lk Fig. 4 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 89: Replacing Flow Control/Sequence Valve Cartridge
5. Adjust the sequence valve (C) as needed. See “Adjustments” section of this manual for sequence valve adjustments. Fig. 2 A - Cartridge, Flow Reg. 10 gpm or 14 gpm C - Sequence Valve PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 90: Replacing Shear Bolt At Primary Driveline
Package Description Part No. (5) Bolt, Hex M8 x 55mm Cl 8.8 Full Thd, (5) Nuts, Hex M8 x 1.25 Top Lk, (1) Shear 1000 RPM Rear Planetary PTO PA-21367 Bolt Decal PA-21134 Table 2 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 91: Installing Vertical Mixer Screw Multi-Angle Top Cover
(C), lock washers (D), and washers (E) (Fig. 1). Tighten bolts (C). A - Multi-Angle Top B - Vertical Mixer Screw C - Bolt, Hex 3/8-16NC x 1” D - Washer, Lk 3/8” E - Washer, Plain 3/8” Fig. 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 93: Adjustments
F - Slat, Conveyor Chain 8” - 18” 2” - 2½” (203 - 457mm) C - Bearing Flange G - Adjuster Bracket (50.8 - 60.5mm) D - Nut, Hex 1/2-13NC RIGHT SIDE Fig. 5 OF CONVEYOR PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 94: Adjusting Hitch
D - Washer, Lk 5/8 J - Washer, Lock 3/4 Mixer Tractor Tractor E- Nut, Hex 5/8-11NC K - Nut, Hex 3/4-10NC F - Bolt, Hex 1-8NC x 8” Gr. 8 Mixer Mixer Tractor Tractor Fig. 5 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 95: Adjusting Sequence Valve
Note: The mixing screws should be re-timed before replacing the rear planetary shear bolt. 1. Rotate the planetary input shaft so mixing screws are positioned as shown (Fig. 1). Leading Edge of Screw Fig. 1 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 96: Repositioning Flat Fixed Discharge Conveyor
L - Conveyor Support F - Nut, Hex 3/8-16NC M - Extension G - Fixed OUTB Shroud N - Bolt, Carr 3/8-16NC x 3/4 Gr 5 H - Fixed Discharge Conveyor O - Red Delineator PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 97: Repositioning 41" And 53" Incline Discharge Conveyor
D - Washer, Lock 3/8 K - Washer, Lock 1/2 E - Nut, Hex 3/8-16NC L - Nut, Hex 1/2-13NC F - Shroud Back INB M - Hydraulic Sequence Valve G - Discharge Conveyor N - Discharge Supports PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 98: Adjusting 41" And 53" Incline Discharge Height
1. Install stroke control collar (A) (not supplied) onto the sliding discharge conveyor cylinder rod (B) to shorten the distance the conveyor slides out (Fig. 1). Fig. 1 A - Control Collar B - Cylinder Rod PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 99: Section 10: Options
D - Nut, Hex 5/8-11NC B - Screw, Hex Skt Button Hd E - Hole for Less Aggressive 5/8-11NC x 2-1/2” C - Washer, Lock 5/8 Fig. 3 21-1/2” Knife (Black) PA-28444 Fig. 4 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 100: Installing Knife Backing Plate
D - Nut, Hex 5/8-11NC 5/8-11NC x 2” E - Knife 3. Position 90° knife in different set of holes on vertical mixer screw for best cutting of the material entering the mixer. PA-28444 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 101: Installing 4-1/4", 4-3/4", 5-1/2", And 7-1/2" Raptor™ Knife
Knives are sharp and can cause injury. Use Caution. Note: The RAPTOR™ knife is available in 5 sizes for the 2000 Series Vertical Mixer; 4-1/4”, 4-3/4”, 5-1/2”, 7-1/2”, and 10”. See “Installing 10” RAPTOR™ Knife” section for instructions on installing the 10”...
Page 102: Installing 10" Raptor™ Knife
Screw Note: The RAPTOR™ knife is available in 5 sizes for the Rotation 2000 Series Vertical Mixer; 4-1/4”, 4-3/4”, 5-1/2”, 7-1/2”, and 10”. See “Installing 4-1/4”, 4-3/4”, 5-1/2”, and 7-1/2” RAPTOR™ Knife” section for instructions on installing the 4-1/4”, 4-3/4”, 5-1/2”, and 7-1/2”...
Page 103: Installing Side Discharge Conveyor
H - Discharge Mount Frame Gr. 5 I - Bolt, Carr 3/8-16NC x 1” D - Nut, Hex Flange Whiz Lk J - Washer, Lk 3/8” 5/16-18UNC K - Nut, Hex 3/8-16NC E - Deflector Bar PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 104: Attaching Stop Chain
C - Discharge Conveyor D - Bolt, Carr 3/8-16NC x 1-1/4” E - Washer, Plain 3/8” F - Nut, Hex Ctr Lk 3/8-16NC G - Top Chain Mount Bracket H - Discharge Mount Frame PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 105: Installing Side Discharge Conveyor With Hydraulic Lift System
B - Bracket, Cylinder Mount G - Cotter Pin, 1/4 x 2” C - Pin and Cotter Pin, 1/2 x 2” H - Clevis Bolt D - Pivot Link I - Chain Mount Bracket PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 106: Attaching Hydraulic Hoses, Connections, And Sequence Valve
L - HHose 1/4 x 162” or 212” 08FSJ x 08FSJ 06FSJ x 06FSJ (Upper Motor Port) (Lower Cylinder Port) G - HHose 3/8 x 211” or 255” 08FSJ x 08FSJ (Lower Motor Port) PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 107 U - Nut, Hex Flange Whiz Lk 06FSJ x 06FSJ 5/16-18NC (Upper Cylinder Port) V - HFTG Adapter 06MORB x L - HHose 1/4 x 162” or 212” 06MJ 06FSJ x 06FSJ (Lower Cylinder Port) PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 108 V - HFTG Adapter 06MORB x (Lower Motor Port) 06MJ I - Hydraulic Cylinder, 2” Bore W - HHose 3/8 x 148” 08FSJ x x 8” Stroke 08FSJ (To Tractor) X - HFTG Male Tip 08FORB PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 109: Installing Side Discharge Conveyor With Manual Lift System
Fig. 4 E - Cushioned Loop Clamp 2” P - HFTG Tee 08MJ x 08MORB F - Bolt, Carr 3/8-16NC x 1” Q - HFTG ADPT 08MJ x 08MORB G - Washer, Lk 3/8” PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 110 Q - HFTG ADPT 08MJ x 08MORB 08FSJ x 08FSJ R - HHose 3/8 x 148” 08FSJ x (Upper Motor Port) 08FSJ (To Tractor) J - Valve, Flow Reg. 10GPM S - HFTG Male Tip 08FORB PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 111: Installing Selector Valve
D - Port Tractor Circuit K - Washer, Lk 3/8” E - Port-1st Cylinder Circuit L - Nut, Hex 3/8-16NC F - Port-2nd Cylinder Circuit M - HFTG 90° Elbow G - Selector Valve TRACTOR Fig. 2 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 112: Installing Hydraulic Control Center And Sensor
F - Power Harness O - Fuse Holder G - Hydraulic Manifold P - Cylinder Rocker Switch H - Platform Q - Hydraulic Motor Switch I - Bolt, Carr 3/8-16NC x 1 Gr 5 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 114: Installing Battery Holder
(D), lock washers (E), and nuts (F) (Fig. 2). A - Bottom Pan Fixed Chute B - Discharge Conveyor C - Bolt, Hex. 3/8-16NC x 1″ D - Washer, 3/8″ E - Washer, Lk 3/8″ F - Nut, Hex. 3/8-16NC Fig. 2 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 115: Installing Discharge Magnet Or Slider Pan
Keep a minimum of 12” (305 mm) away. Fig. 2 A - Discharge Chute D - Washer, Lk 3/8” B - Discharge Door E - Nut, Hex 3/8-16NC C - Bolt, Hex 3/8-16NC x 1” F - Magnet PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 116: Installing Side Hydraulic Discharge Chute
F - Washer, Lock 3/8 N - Cylinder Pin (Chute Weld.) G - Nut, Hex 3/8-16NC O - Cylinder Pin (Incl. w/ Cyl) H - Discharge Door Frame P - Cotter Pin (Incl. w/ Cyl) Fig. 3 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 117 W- -HFTG Adpt 12MP x 08MJ 06FSJ x 06FSJ X - HHose 3/8 x 84L 08FSJ x S - Hyd Valve Dbl Relief X-Over 08MORB T - Bolt, Carr 5/16-18NC x 2-1/2 Y - HFTG Male Tip 08FORB PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 118: Installing Steel/Rubber Side Extensions
J - Nut, Hex 3/8-16NC Flange D - Center Extension Angle Whiz Lk E - Bolt, Hex 7/16-14NC x 1-1/2” K - Rubber Side Extension F - Washer, Plain 7/16” G - Nut, Hex 7/16-14NC Flange Whiz Lk PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 120 B - Tub Top Rail F - Retainer Chain C - Bolt, Hex 7/16-14NC x 2 Gr. 5 G - Quick Link, 5/16” D - Spacer, 1/2 x 1-1/4 x 3/16” TUB RAIL Fig. 4 FRONT OF MIXER PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 121 E - Nut, Nyl Lk 1/2-13NC damage. B - Indicator Mount F - Indicator Plate Assy. C - Bolt, Hex. 1/2-13NC x 4-1/2” G - Bolt, Hex. 1/2-13NC x 1-1/4” D - Indicator Arm Cushions PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 123: Section 11: Specifications
11.1 Specifications Specifications 2000 SERIES VERTICAL MIXER (TRAILER) 520, 520XH, 620, 620XH, 740, 740XH SPECIFICATIONS UNIT MIXER WEIGHT EMPTY 12500 lbs (5 670 kg) 13700 lbs (6 214 kg) 14600 lbs (6 622 kg) XH: 13750 lbs (6 237 kg)
Page 124 11.2 Specifications 2000 SERIES VERTICAL MIXER (TRAILER) 520, 520XH, 620, 620XH, 740, 740XH 103" (2.62 m) [520] 290 1/4" (7.37 m) [520] 104" (2.64 m) [620] 292 1/4" (7.42 m) [620] 105" (2.67 m) [740] 296 3/8" (7.53 m) [740] 284 3/4"...
Page 125: Section 12: Troubleshooting
Discharge conveyor with Sequence valve not adjusted properly. Sequence valve set too high ref. incline does not start. adjustment instructions page. Obstruction in chain. Remove chain obstruction. — PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 126: Troubleshooting
10.14 - box. 10.15 Check fuse in HCC. 10.14 Tractor relief constantly on. Check valve set to proper open or 10.13 - closed hydraulic. 10.14 Check pressure and tank lines are — run properly. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 127 Replace worn knives. 10.1 - 10.4 Worn or damaged vertical screw Replace vertical screw or screw 8.12 or screw components. components. Excessive tire wear. Low tire pressure. Inflate tire. Wrong tire size. Replace tire. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 128 Check that magnet is still on shaft. Replace the magnet. 8.13 Check sensor is attached to wire. Replace hour meter if sensor is lost. 8.13 Sensor too far from magnet. Adjust sensor. 8.13 PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 129: Electronic Scale System Troubleshooting Flow Chart
Any differences could indicate a bad 4. Write down the indicator reading with the weigh bar or a structural problem. weigh bar connected. PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 131: Section 13: Warranty
Warranty claims with respect to tires, submersible pumps, motors, engines and electronic scales are to be submitted to the applicable manufacturer or its local representative. This literature cancels and supersedes previous literature on this subject. August 2005 J-1338 Rev. 4/16 Copyright ©1992-2016 Patz Corporation PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 133: 2-Speed, And Split Drive Gearboxes
• The maintenance log found in the machine box on the mixer has to be current; logging all oil changes. • A complete Rations Analysis Worksheet (PA-18468). (over) PA-20861 Rev. 4/17 Copyright ©2003-2017 Patz Corporation PA-31918 21/09 Copyright ©2021 Patz Corporation...
Page 134 Department. Notice: Other translations of this document may exist. Contact your Patz Dealer or Patz Corporation. The English version of this document shall always prevail in case of any discrepancy or inconsistency between English and its translation. PA-20861 Rev. 4/17 Copyright ©2003-2017 Patz Corporation...

Patz Corporation 2000 Series Operator's Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patz Corporation 2000 Series

Summary of Contents for Patz Corporation 2000 Series

Table of Contents
