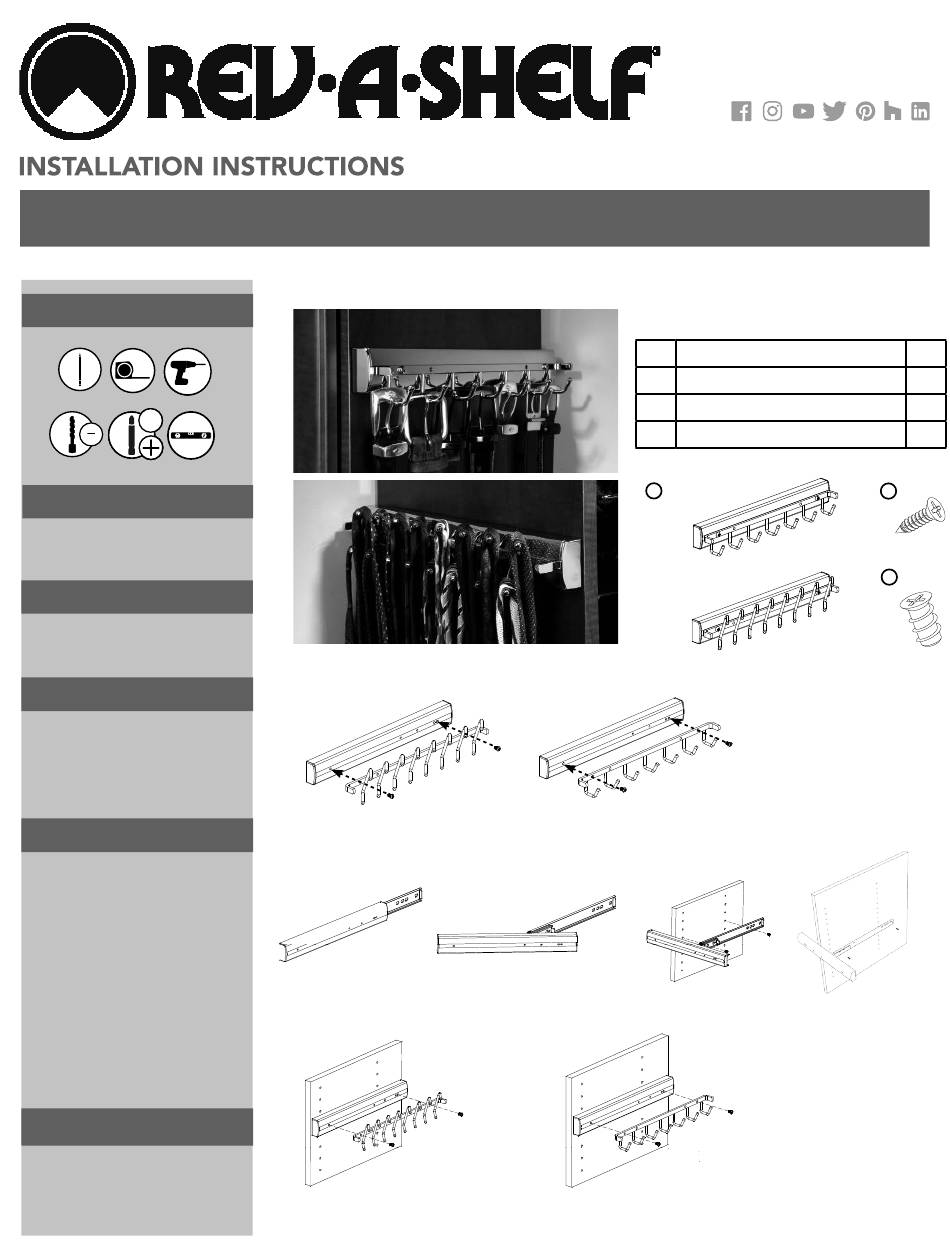

SWIVEL OUT BELT / TIE RACK
TOOLS REQUIRED:
#2
#2
#2
1
8
ESTIMATED ASSEMBLY TIME:
10 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and wipe
parts dry.
STEP 1
Unscrew the (2) screws attaching
your belt/tie to the swivel slide
with a # 2 Phillip head screwdriver
(See Figure 1).
STEP 2
Fully extend the swivel slide. If
using systems holes, attach the
inner member to the cabinet
sidewall using (2) M6 x 6 mm euro
screws. Or measure, mark and
pre-drill hole locations and attach to
cabinet sidewall with (2) #8 x 32 x
1/2" wood screws (See Figure 2).
Note: Before pre-drilling, match
up the marked holes with the
swivel slide making sure it will be
level.
STEP 3
When the slide swivel is installed,
secure your belt/tie using the
same (2) screws it came with.
FIG. 1
FIG. 2
FIG. 3
INSTALLATION INSTRUCTIONS: SWIVEL OUT BELT / TIE RACK
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
PARTS LIST
No.
Description
A
Swivel Out Belt / Tie Rack*
B
#8 – 32 X 1/2" Wood Screws
C
M6 X 6 mm Euro Screws
*Dependent on unit purchased
A
Qty.
1
2
2
B
C
I-CSWXRSL-0721
