Rev-A-Shelf TRCSL-14NS-CR-1 Installation Instructions

Wall mount belt and tie rack
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
WALL MOUNT BELT AND TIE RACK
TOOLS REQUIRED:
#2
#2
#2
1
8
PZ2
#2
#2
ESTIMATED ASSEMBLY TIME:
10 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and wipe
parts dry.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
No.
A

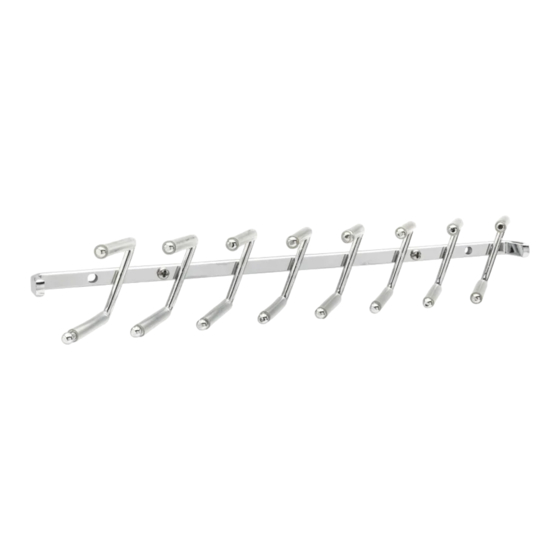

Wall Mount Belt Rack / Tie Rack*
B
#8 - 32 X 1/2" Wood Screws
C
M6 X 6mm Euro Screws
*Dependent on unit purchased
A
INSTALLATION INSTRUCTIONS: WALL MOUNT BELT AND TIE RACK
PARTS LIST
Description
B
C
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Qty.
1
2
2
I-XRCSL-0621
