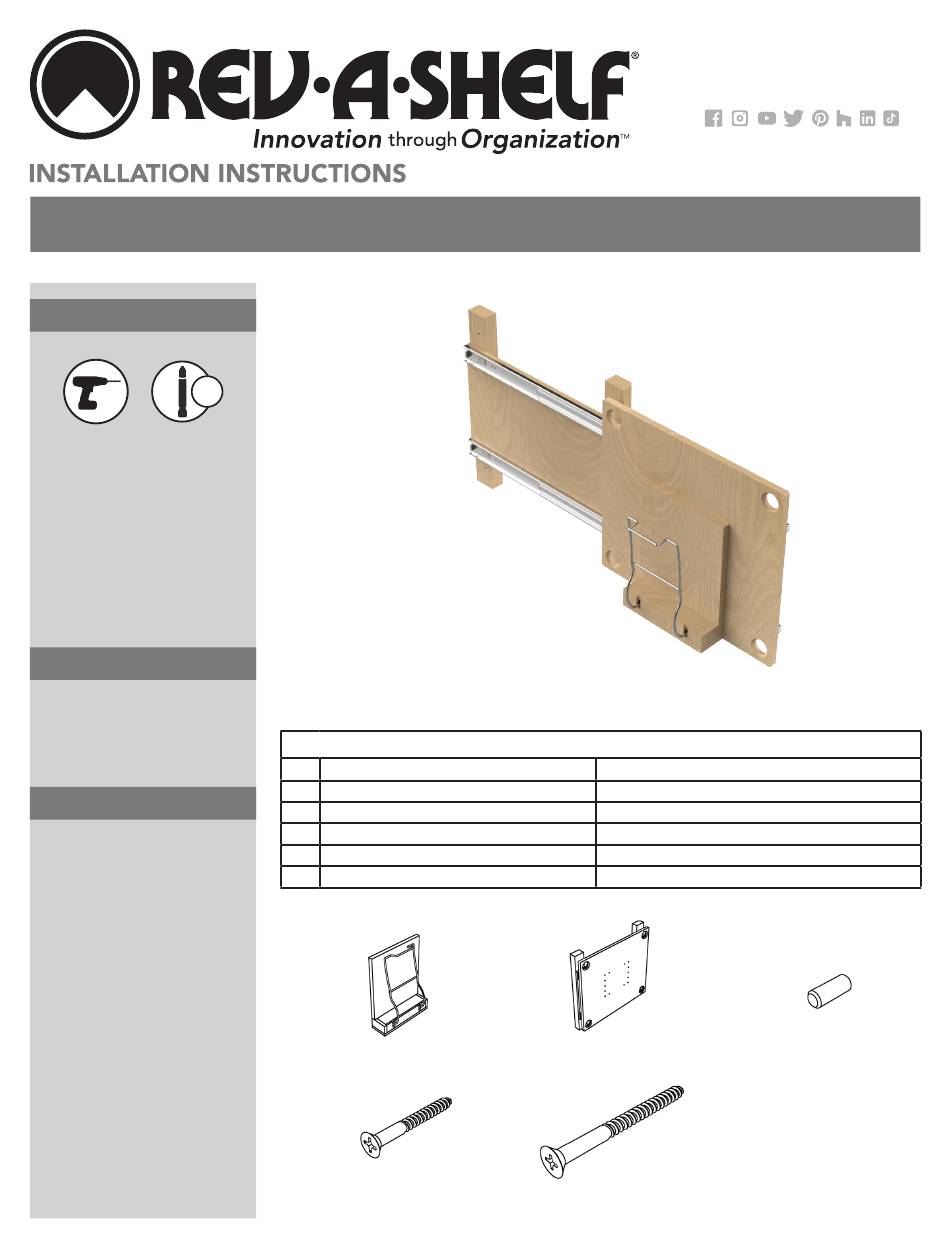

UNIVERSAL HOLDER
TOOLS REQUIRED:
#2
ESTIMATED ASSEMBLY TIME:
10 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
No.
Description
A
Universal Holder
B
Uprights with Shuttle
C
Steel Pins
D
#6 x 1 1/4" Phillips Flat Head Screws
E
#8 x 2" Phillips Flat Head Screws
A.
D.
INSTALLATION INSTRUCTIONS: UNIVERSAL HOLDER
Parts List:
B.
E.
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Qty
1
1
2
4
4
C.
I-4UH-1223
Advertisement
Related Manuals for Rev-A-Shelf 4UH-BC-9C
Summary of Contents for Rev-A-Shelf 4UH-BC-9C
- Page 1 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 UNIVERSAL HOLDER TOOLS REQUIRED: ESTIMATED ASSEMBLY TIME: 10 MIN Parts List: Description Universal Holder CARE AND MAINTENANCE: Uprights with Shuttle Clean with a damp cloth and Steel Pins wipe parts dry.
- Page 2 (See Figure 3). Note: Be aware that the product is not attached to the cabinet during this step. Use caution when opening and closing the pullout. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 Fig. 4 STEP 4 If the contents of your Universal Holder (A) conflict with the cabinet, raise or lower the deck height using the Steel Pins (C) and system holes on the Uprights with Shuttle (B). Continue to test the clearance until you are satisfied with the function of the Universal Holder (A) (See Figure 4).
- Page 4 Vis à tête plate cruciformes n° 6 x 1 1/4 po Tornillos de cabeza plana Phillips #8 x 2” / Nettoyez avec un linge humide et essuyez les piéces pour les secher Vis à tête plate cruciformes n° 8 x 2 po complétement. Customer Service: 800-626-1126 | rev-a-shelf.com I-4UH-1223...
- Page 5 PASO 1 / ÉTAPE 1 Fig. 1 Elija en qué lado del gabinete desea instalar este producto. Presione los (2) pernos de acero (C) en los orificios del soporte universal (A). Coloque el soporte universal (A) a la altura y orientación deseadas utilizando los puntales con los orificios del sistema de lanzadera (B).
- Page 6 Vissez les montants avec la navette (B) sur les parois intérieures de l’armoire à l’aide des vis cruciformes à tête plate (E) n° 8 x 2 po fournies (voir la figure 6). Customer Service: 800-626-1126 | rev-a-shelf.com...
