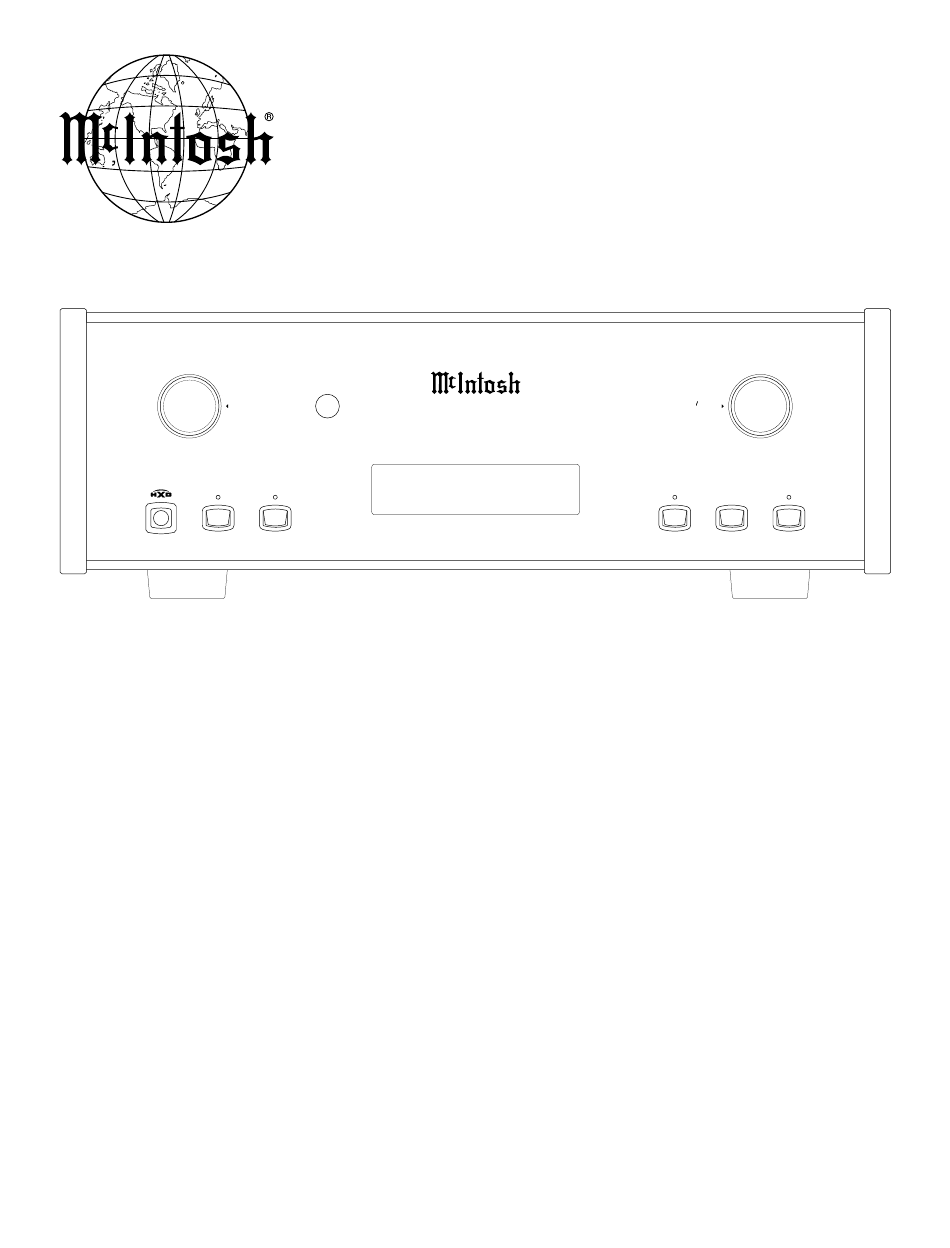

SERVICE MANUAL
C47
AUDIO PREAMPLIFIER
SERIAL NO. AEH1001 And Above
C 4 7 A U D I O P R E A M P L I F I E R
INPUT: USB
25% DSD 128
CONTENTS
TONE
Control Schematic and PCB ..................................9 - 16
Digital Schematic and PCB .................................17 - 24
Audio Schematic and PCB ..................................25 - 38
Dsply/L&R Pshbtns/Hdphn/L&R Mtr Schematic and PCB .39 - 44
Parts List .............................................................45 - 56
Repacking Instruction ................................................57
VOLUME
TRIM / SETUP
ADJUST
/
MUTE
STANDBY ON
RESET
C47
