Summary of Contents for CPAT FLEX IRX1

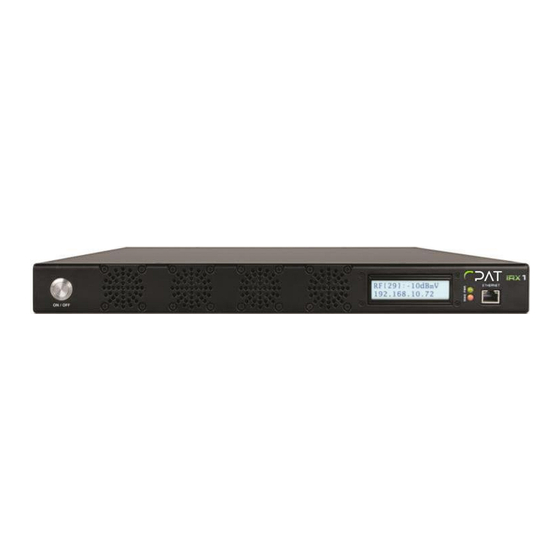

- Page 1 IRX1 Headend Ingress Receiver Please direct all questions to your local CPAT Flex sales office representative, or distributor, or contact CPAT Flex technical support at: www.cpatflex.com. Copyright 2024 CPAT Flex Inc. All rights reserved.
- Page 2 CPAT Flex assumes no responsibility for any omissions or errors that may appear in this document or for any damage that may result from the use of information contained herein.
-
Page 3: Table Of Contents
1.2.1 Tests Specifications 1.2.2 Compliance 1.2.3 Note 1.3 Technical Support 1.4 Calibration 1.5 Explanation of Symbols Used 1.6 CPAT Flex Website 2. System Components 2.1 Initial Verification 3. Installation 3.1 Rack Moun Installation 3.2 Connecting RF Inputs 3.3 Electrical Installation 3.4 Internet Connection... - Page 4 IRX1GettingStartedManual2024-07-30 V1.5 6. Real-time Ingress Monitor (RIM) 6.1 RIM Website Login 6.2 Choose the Proper ITX 7. Remote Troubleshooting Appendix A – Specifications Appendix B – Our Services B.1 Customer Support B.1.1 Equipment Return Instructions B.2 Limited Product Warranty B.2.1 Hardware B.2.2 Software B.2.3 Exclusions B.2.4 Refurbished Parts and Prior Testing...
-
Page 5: General Information
1. GENERAL INFORMATION 1.1 About this Manual This manual describes the components, installation and operation of the CPAT Flex IRX1 unit. You will find important safety information in this manual. We strongly recommend that all users read this manual. Use of this product other than for its intended application may compromise the unit’s safety features. -
Page 6: Technical Support
Toll free from U.S. and Canada: 1-888-307-2728 / International: +1-514-307-2728 support@cpatflex.com 1.4 Calibration Your IRX1 unit has been calibrated and tested in the factory and does not need further calibration before use. However, if the unit suffers damage and needs repair, it is recommended that the unit be returned to an authorized CPAT Flex service center where it will be properly recalibrated. -
Page 7: Explanation Of Symbols Used
IRX1GettingStartedManual2024-07-30 V1.5 1.5 Explanation of Symbols Used The following symbols are used on the IRX1 label and in this manual: Caution - indicates that operations or procedures, if carried out without caution, may cause personal injury or damage to the unit. -
Page 8: System Components
2.1 Initial Verification Your IRX1 unit is calibrated and ready to use right out of the box. Upon reception, visually inspect each item for any damage that may have occurred during shipment. If you see any signs of physical damage, please contact CPAT Flex Inc.:... - Page 9 IRX1GettingStartedManual2024-07-30 V1.5 IRX1- rack mount brackets and AC/DC Adapter If any of the standard accessories are lost or damaged, you can order a replacement for the IRX1. Please quote the following part numbers when placing an order: Part No. Accessories Description...
-
Page 10: Installation
It is recommended to have a minimum of pads to prevent having the frequency band (5-45 MHz) power above 40 dBmV per RF input. Since the IRX1 tries to detect ingress, the incoming digital ingress signal is not always at the same level. Also, the measured value does not take into consideration any pads. -
Page 11: Electrical Installation
50/60 Hz power distribution networks. 3.4 Internet Connection The IRX1 needs access to the internet to transmit received measurement levels to the CPAT servers and for automatic firmware updates. Transfers vary from less than a 1MBytes to a maximum of ~7Mbytes per day, depending on the intensity of the patrolling, the number of ITX2 in the sector, and the number of failures on the network. -
Page 12: System Operation
To power on the unit, make sure that the power cable is properly connected to a power bar (recommended) and into the IRX1- then press the ON/OFF button on the front panel for 3 seconds and then release it. You should see both lights on the front panel turn green, then the PWR light will turn red. -
Page 13: Communication
4.4.2 Forced Shutdown: To force the IRX1 to power down when it is running, press the ON/OFF button on the front panel for 3 seconds. When the unit has shut down, you may release the button. Only use this... -
Page 14: System Maintenance
IRX1GettingStartedManual2024-07-30 V1.5 5. System Maintenance 5.1 Cleaning the Equipment Your IRX1 unit can be wiped clean with a damp cloth. Do not immerse the unit in water. Avoid solvents and commercial cleaners. 5.2 Preventive Maintenance The technician shall perform periodic visual inspections on the RF connections to make sure that there is nothing loose or broken which could affect the performance of the system. - Page 15 IRX1GettingStartedManual2024-07-30 V1.5 NOTE The RIM is also available as a mobile application for iOS and Android. To download it, connect to the Apple App Store (iTunes) or the Android App store (Google Play), and download the “CPAT” app. The first function within this app, called Ingress, is an enhanced version of the RIM software on the web.
-
Page 16: Remote Troubleshooting
IRX1GettingStartedManual2024-07-30 V1.5 7. Remote Troubleshooting It is possible to access the IRX1 for remote assistance. Also, manual firmware and script updates can be achieved. If the problem is the Internet connection, it will not be possible to do so. Contact support (see section 1.3 Technical Support) -
Page 17: Appendix A - Specifications
Level Accuracy ± 2dB on signal pulses Monitoring Mode Continuous shared detection between 8 RF ports Frame Capture Time 10 ms (milliseconds) Continuous Ingress 100 events/sec/IRX1 Detection Capability Power 120 VAC, 0.7A (60W) fully loaded. Communications Ethernet port RJ45 Com Protocol... -
Page 18: Appendix B. Our Services
When needed, appropriate packing materials can be obtained by contacting CPAT Flex Support. CPAT Flex is not liable for any damage that may occur during shipping. The customer should clearly mark the CPAT Flex’s issued RA or reference number on the outside of the package and ship it prepaid and insured to CPAT Flex. -
Page 19: Limited Product Warranty
B.2 Limited Product Warranty B.2.1 Hardware CPAT Flex warrants to the original end user (Customer) that the new CPAT Flex branded products will be free from defects in workmanship and materials, under normal use, for one (1) year from the date of original shipment. -
Page 20: Refurbished Parts And Prior Testing
(Limited Warranty) and actually fails during the applicable warranty period and under normal use, CPAT Flex shall, at its sole discretion (i) repair or replace the non-conforming Product to remedy the nonconformity identified by Customer in accordance with this Section (Limited Product Warranty);... - Page 21 IRX1GettingStartedManual2024-07-30 V1.5 Published by CPAT Flex 8566 Ave de L’Esplanade, Montreal, Quebec CANADA H2P 2R8 www.cpatflex.com 1-888-307-2728...
