Summary of Contents for CPAT FLEX IRXD

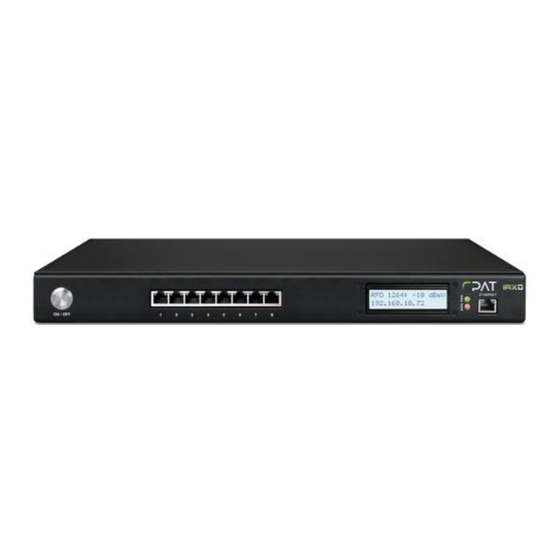

- Page 1 IRXD Ingress Digital Receiver Please direct all questions to your local CPAT Flex sales office representative, or distributor, or contact CPAT Flex technical support at: www.cpatflex.com. Copyright 2024 CPAT Flex Inc. All rights reserved.
- Page 2 CPAT Flex assumes no responsibility for any omissions or errors that may appear in this document or for any damage that may result from the use of information contained herein.
-
Page 3: Table Of Contents
1.2.1 TEMC Compliance 1.2.2 Safety Compliance 1.2.3 Note 1.3 Technical Support 1.4 Calibration 1.5 Explanation of Symbols Used 1.6 CPAT Flex Website 2. Ingress Detection in R-PHY 3. System Components 3.1 Initial Verification 4. Physical Installation 4.1 Rack Mounts I installation 4.2 Electrical I installation... - Page 4 8.2 Choose the Proper ITX 9. Updates 9.1 Automatic Update 10. Remote Troubleshooting Appendix A – Specifications Appendix B – IRXD Configuration Appendix C – Our Services C.1 Customer Support C.1.1 Equipment Return Instructions C.2 Limited Product Warranty C.2.1 Hardware C.2.2 Software...
-
Page 5: General Information
1. GENERAL INFORMATION 1.1 About this Manual This manual describes the components, installation and operation of the CPAT Flex IRXD unit. You will find important safety information in this manual. We strongly recommend that all users read this manual. Use of this product other than for its intended application may compromise the unit’s safety features. -
Page 6: Technical Support
Toll free from U.S. and Canada: 1-888-307-2728 / International: +1-514-307-2728 support@cpatflex.com 1.4 Calibration Your IRXD unit has been calibrated and tested at the factory and does not require further calibration before use. In the event the unit is damaged and requires service repair, it is recommended the unit be returned to an authorized CPAT Flex service center where it will be re-calibrated. -
Page 7: Explanation Of Symbols Used
IRXDGettingStartedManual 2024-07-30 V1.5 1.5 Explanation of Symbols Used The following symbols are used on the IRXD label and in this manual: Caution. Indicates that operations or procedures, if carried out without caution, may cause personal injury or damage to the unit. -
Page 8: Ingress Detection In R-Phy
2. Ingress detection in remote PHY (R-PHY) The IRXD is installed at the headend or data center where the elements of the CCAP core reside. When a vehicle (patrol mode) is driving in an ingress prone area, the portable ITX2 test signal enters the coaxial plant and travels up to the RPD. - Page 9 Read-only access to CCAP management network required to receive RPD configuration information 10/100 Ethernet CCAP port requires a private and static IP address The IRXD requires IP addresses for all CCAP core CMTS providing RPD configuration information (READ ONLY) ...
-
Page 10: System Components
3.1 Initial Verification Your IRXD unit is calibrated, and ready to use right out of the box. Upon reception, visually inspect each item for any damage that may have occurred during shipment. If you see any signs of physical damage, please contact CPAT Flex: Callers from the U.S. - Page 11 Figure 1: IRXD, rack mount brackets and power supply If any of the standard accessories are lost or damaged, you can order replacements for the IRXD. Please quote the following part numbers when placing an order: Part No. Accessories Description...
-
Page 12: Physical Installation
CMTS/CCAP by SNMP. P1~P8 receives L2TPv3 packets from configured RPD. 4.4 Internet Port The IRXD needs access to the Internet to transmit received measurement level to the CPAT WEB application and for automatic firmware updates. Transfers vary from less than a 1 MBytes to a maximum of ~7 Mbytes per day depending on the amount of the patrolling (drive out), the number of ITX2’s in the sector and the number of ingress events detected on... -
Page 13: Setup
TCP port 26 and RIM UDP port 20000 are opened (outgoing). Without this access, it won’t be able to communicate with our FTP/SFTP and “Real-time Ingress Monitor” servers (RIM) and we won’t be able to access the IRXD for remote assistance. 5.2 CCAP Port Make sure that the CCAP port has access to the SNMP port of CMTS/CCAP. -
Page 14: System Operation
To power the unit, make sure the power cord is properly connected, the power switch (just beside power connector of the IRXD) is turned ON and then press the ON/OFF button on the front panel. You should see the PWR-light on the front panel turn yellow. -
Page 15: Communication
6.4.2 Force Shutdown: To force the IRXD to power down when it is running, press the ON/OFF button on the front panel for 3 seconds. When the unit has powered down, release the button. Use this shutdown method ONLY if the normal shutdown method fails. -
Page 16: System Maintenance
IRXDGettingStartedManual 2024-07-30 V1.5 7. System Maintenance 7.1 Cleaning the Equipment Your IRXD unit can be wiped clean with a damp cloth. Do not immerse the unit in water. Avoid solvents and commercial cleaners. 8. Real-time Ingress Monitor (RIM) The RIM service is available through our CPAT Mobile Application and our RIM web site. It gives remote access, in real-time, to the ingress measurement captured by IRXD. -
Page 17: Choose The Proper Itx
IRXDGettingStartedManual 2024-07-30 V1.5 NOTE The RIM is also available as a mobile application for iOS and Android. To download it, connect to the Apple App store (iTunes) or the Android App store (Google Play), and download the “CPAT” app. 8.2 Choose the proper ITX Once the user is logged in the application or web site, he must choose his ITX from the list and then he will be able to view all the data available from his ITX. -
Page 18: Updates
10. Remote Troubleshooting It is possible to access the IRXD for remote assistance. Also, manual firmware and script updates can be achieved. If the problem is the Internet connection, it will not be possible to do so. -
Page 19: Appendix A - Specifications
IRXDGettingStartedManual 2024-07-30 V1.5 Appendix A – Specifications TECHNICAL DETAILS Operating Frequency 6.78, 27.12 and 40.68 MHz Measurement Range -30 to 0 dBmV Level Accuracy ± 3dB (according to RPD’s NDR sampling accuracy) NDR bandwidth 0: CH WD: 160KHz Simultaneous RPD Up-to 1000 RPD using NDR channel width 160 kHz (mode 1) monitoring Continuous Ingress... -
Page 20: Appendix B - Irxd Configuration
IP Address for 10/100 Ethernet Management Port (Internal Network) Port IPv4/v6 Address Static IP Address Static IP Mask Gateway IP Address (if applicable) IP Address for CCAP Cores Providing RPD Configuration Necessary for the IRXD to Read RDP Information Without Human Intervention CCAP Manufacturer IPv4/v6 Address... - Page 21 IRXDGettingStartedManual 2024-07-30 V1.5 IP Address for Gigabit Ethernet Port Facing Internet Port IPv4 v6 Address Gig Ethernet Confirm if static or DHCP If static, please fill the following information Static IP Address Static IP Mask Gateway IP Address SNMP Information Parameter Value SNMP Version...
-
Page 22: Appendix C. Our Services
CPAT Flex is not liable for any damage that may occur during shipping. The customer should clearly mark the CPAT Flex’s issued RA or reference number on the outside of the package and ship it prepaid and insured to CPAT Flex. -
Page 23: Limited Product Warranty
C.2 Limited Product Warranty C.2.1 Hardware CPAT Flex warrants to the original end user (Customer) that the new CPAT Flex branded products will be free from defects in workmanship and materials, under normal use, for one (1) year from the date of original shipment. -
Page 24: Exclusions
(Limited Warranty) and actually fails during the applicable warranty period and under normal use, CPAT Flex shall, at its sole discretion (i) repair or replace the non-conforming Product to remedy the nonconformity identified by Customer in accordance with this Section (Limited Product Warranty);... -
Page 25: Disclaimer
THE REMEDIES EXPRESSLY PROVIDED IN THIS SECTION WILL BE CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES AND SHALL BE IN LIEU OF ANY OTHER RIGHTS OR REMEDIES CUSTOMER MAY HAVE AGAINST CPAT FLEX WITH RESPECT TO ANY NON-CONFORMANCE OF PRODUCTS. EXCEPT AS SPECIFIED IN THIS LIMITED PRODUCT WARRANTY, CPAT FLEX MAKES NO EXPRESS REPRESENTATIONS OR WARRANTIES WITH REGARD TO ANY PRODUCT. - Page 26 IRXDGettingStartedManual 2024-07-30 V1.5 Published by CPAT Flex 8566 Ave de L’Esplanade Montreal, Quebec CANADA H2P 2R8 www.cpatflex.com 1-888-307-2728...
