Ortus corpuls SpO2 Quick Manual

SpO Quick Guide
2
Information on SpO
Oximetry is a non-invasive monitoring method for continuous measurement of arterial oxygen saturation (SpO
•
in the blood.
The specific reduction in the absorbance of oxygenated and deoxygenated haemoglobin is measured with light of
•
different wavelengths by means of a photo sensor.
Comparison of the values yields the SpO
•
Additionally, the oximetry measures peripheral pulse rate (PR) per minute and perfusion index (PI) in percentage.
•

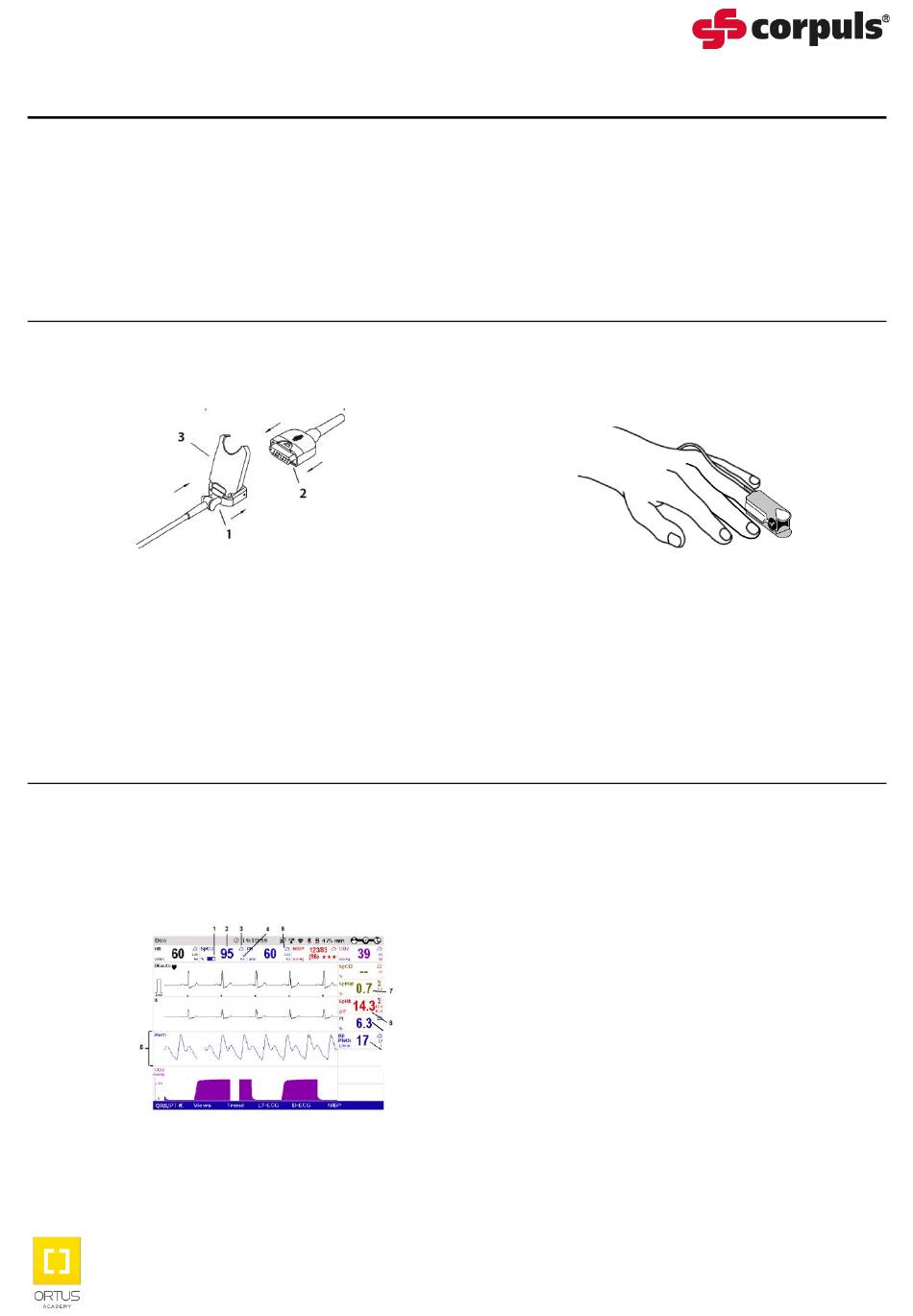

Preparing for SpO
Connect the oximetry sensor to the intermediate cable as shown in
the diagram above.
Ensure that the intermediate cable is plugged into the patient box.
Performing SpO
Measurements begin automatically after the sensor has been attached, however there will be a few
seconds delay before the pleth appears on the screen (dependant on configured averaging time).
When artifact, a low intensity signal, a low perfusion index is displayed, or the measurement does not
appear plausible (e.g. due to movement artifact, light pollution, and phototherapy), always check the
Ortus Academy
Ortus Academy is a trading name of Ortus Technology Limited.
Company Registration 07554900
Monitoring
2
values as a percentage.
2
Monitoring
2
Measurement
2
9
10

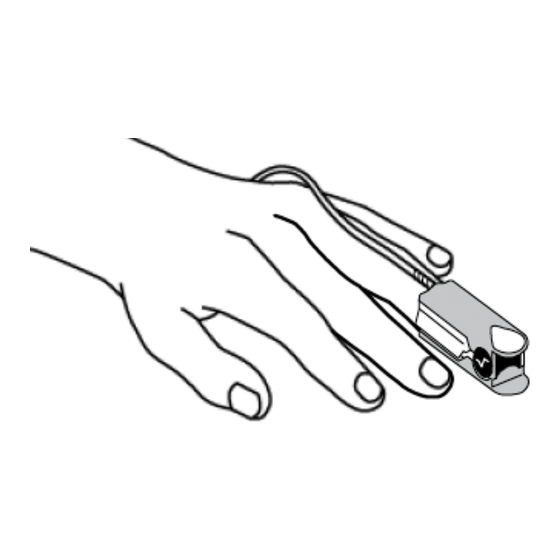

The sensor should be applied to the patient's ring finger or
middle finger on the patient's non-dominant hand where
possible.
Refer to the User Instructions for appropriate application
of the sensor of choice.
SpO monitoring configured screen
2
1. Bar displaying the signal intensity
2. Current SpO value in %
2
3. Hourglass symbol denoting completion of automatic calibration
4. Lower alarm limit
5. Symbol for switched-on alarms
6. Pleth waveform
7. Current SpHb value in % (available option)
8. Current SpMet value in g/dl (available option)
9. Current Perfusion Index in %
10. Current respiration rate from pleth
patient's vital signs and ensure optimal positioning of the
SpO sensor.
2
This document has been developed to provide users with an overview for safe device operation in accordance
with its function and intended use and does not replace the user manual. All persons dealing with use,
maintenance and troubleshooting must read and implement the user manual. Illustrations may not reflect
that displayed on your device. Subject to technical modifications, mistakes, and printing errors.
Academy_SpO Quick Guide_SWV4.3_A007_v1
