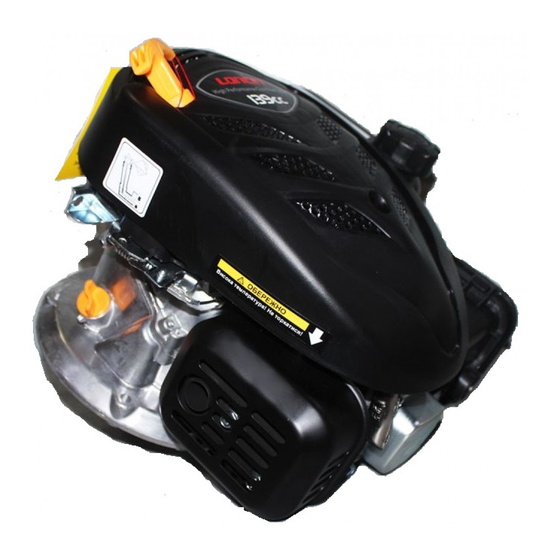

- Page 1 Gasoline Engine Owner’s Manual 1P65FE 1P65FE-2 1P65FE-3 1P65FE-4 1P65FE-5 1P70F-3 1P75F V200 V225 -7...
- Page 2 BEFORE OPERATING ENGINE Read entire Operating ＆ Maintenance Instructions AND the instructions for the equipment this engine powers. Failure to follow instructions could result in serious injury or death. THE OPERATING ＆ MAINTENANCE INSTRUCTIONS CONTAIN SAFETY INFORMATION TO Make you aware of hazards associated with engines ...
-
Page 3: Hazard Symbols And Meanings
HAZARD SYMBOLS AND MEANINGS Toxic Fumes Explosion Fire Kickback Hot Surface Shock Moving Parts... -
Page 4: Table Of Contents
CONTENTS CONTENTS ENGINE SAFETY……………………………………………………………………………… 2 COMPONENTS …………………………………………………………………………… … 5 2.1 COMPONENTS OF ENGINE…………………………………………………………… 5 CONTROLS…………………………………………………………………………………… 6 3.1 ENGINE OIL ……………………………………………………………………………… 6 3.2 FUEL ……………………………………………………………………………………… 7 3.3 STARTING ENGINE……………………………………………………………………… 7 3.4 STOPPING ENGINE …………………………………………………………… ………8 MAINTENANCE …………………………………………………………………………… 9 4.1 THE IMPORTANCE OF MAINTENANCE ………………………………………… 4.2 MAINTENANCE SAFETY ………………………………………………………………... -
Page 5: Engine Safety
ENGINE SAFETY 1. ENGINE SAFETY IMPORTANT SAFETY INFORMATION Most accidents with engines can be prevented if you follow all instructions in this manual and on the engine. Some of the most common hazards are discussed below, along with the best way to protect yourself and others. Owner Responsibilities ... - Page 6 ENGINE SAFETY WARNING Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion Fire Explosion and fire could result. If there is natural or gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable. WARNING Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.
- Page 7 ENGINE SAFETY WARNING Shock Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire BEFORE PERFORMING ADJUSTMENTS OR REPAIRS Disconnect spark plug wire and keep it away from spark plug. WHEN TESTING FOR SPARK ...
-
Page 8: Components
2. COMPONENTS 2.1 COMPONENTS OF ENGINE FUEL TANK CAP STARTER GRIP FUEL TANK SPARK PLUG OIL FILLERCAP/ DISPTICK MUFFLER CARBURETOR AIR CLEANER 1P65FE 1P65FE-3 STARTER GRIP FUEL TANK CAP OIL FILLERCAP/ DISPTICK MUFFLER AIR CLEANER SPARK PLUG CARBURETOR V200 1P65FE-2 1P65FE-4... -
Page 9: Controls
Check the engine oil level with the engine stopped and in a level position. Remove the oil filler cap/dipstick and wipe it clean. 1P65FE、 1P65FE-3: Insert the oil filler cap/dipstick into the oil filler neck as shown, but do not screw it in, then remove it to check the oil level. -
Page 10: Fuel
CONTROLS Engine oil capacities: 1P65FE, 1P65FE -2, 1P65FE -3,1P65FE -4, 1P65FE -5,1P70F-3,1P75F,V200,V225-7 : 0.5L （ 0.132 US Gal , 0.110 Imp Gal） CAUTION Do not overfill. Overfilling with oil may cause: Smoking, Hard starting, Spark plug fouling, or Oil saturation of air filter. -
Page 11: Stopping Engine
CONTROLS 3.3.2 Start Engine Grasp rope handle. Pull slowly until resistance is felt, then pull rapidly to start engine and avoid kickback. If the choke was used to start the engine, move the throttle to the fast (or high) position as soon as the engine warms up enough to run smoothly without use of the choke. -
Page 12: Maintenance
MAINTENANCE 4. MAINTENANCE 4.1 THE IMPORTANCE OF MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING Improperly maintaining this engine, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations and schedules in this owner’s manual. -
Page 13: Maintenance Schedule
MAINTENANCE 4.3 MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD Performed at every indicated First Every 3 Every 6 Every Before month or operating hour interval, month or months months year or Each use whichever comes first. 5 Hrs. or 25 Hrs. or 50 Hrs. 100 Hrs. -
Page 14: Refueling
MAINTENANCE 错误! 、 、 、 、 、 4.5 REFUELING With the engine stopped, remove the fuel tank cap and check the fuel level. Refill the tank if the fuel level is low. Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool. -
Page 15: Spark Plug Service
1P70F-3 1P75F V225-7 V200 1P65FE-2 1P65FE-4 1P65FE-5 CAUTION: Operating the engine without an air filter, or with a damaged air filter, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by the Distributor’s Limited Warranty. -
Page 16: Storage/Transporting
STORAGE/TRANSPORTING 5. STORAGE/ TRANSPORTING 5.1 STORING YOUR ENGINE Storage Preparation Proper storage preparation is essential for keeping your engine trouble free and looking good. The following steps will help to keep rust and corrosion from impairing your engine’s function and appearance, and will make the engine easier to start after storage. -
Page 17: Storage Precautions
STORAGE/TRANSPORTING 5.1.4 Draining The Fuel Tank And Carburetor Place an approved gasoline container below the carburetor, and use a funnel to avoid CARBURETOR spilling fuel. FLOAT BOWL Remove the carburetor drain bolt and sealing washer, and then move the fuel valve lever to the ON position. -
Page 18: Removal From Storage
STORAGE/TRANSPORTING 5.3 REMOVAL FROM STORAGE Check your engine as described in the chapter OPERATION. If the fuel was drained during storage preparation, fill the tank with fresh gasoline. If you keep a container of gasoline for refueling, be sure that it contains only fresh gasoline. Gasoline oxidizes and deteriorates over time, causing hard starting. -
Page 19: Troubleshooting
TROUBLESHOOTING 6. TROUBLESHOOTING Engine Will Not Start Possible Cause Correction Move lever to CLOSE unless Choke OPEN. engine is warm. 1. Check control positions Engine switch OFF. Turn engine switch to ON. Out of fuel. Refuel fuel; engine stored 2. Check fuel. without treating or draining Drain fuel tank and carburetor. -
Page 20: Technical & Consumer Information
0.028-0.031 in Spark Plug Gap (0.70-0.80 mm) IN: 0.10～0.15mm (cold) Valve Clearance EX: 0.10～0.15 mm (cold) (1P65FE/1P65FE-3)EX: 0.15～0.2mm (cold) Quick Reference Information Type SAE 10W-30,API SE or SF, for general use Engine Oil Capacity 0.5L (0.132 US Gal, 0.110 Imp Gal) Type F7RTC or other equivalents. -
Page 21: Specifications
SPECIFICATIONS 8. SPECIFICATIONS ENGINE SPECIFICATIONS 1P75F Model 1P65FE-3 1P65FE 1P65FE- 4 1P65FE-5 1P65FE-2 1P70F-3 V200 V 2 2 5 -7 Type Single cylinder, 4-Stroke, Forced Air Cooling, OHV Net power(kW/3600rpm) Net torque (N·m/rpm) 6.5/2500 7.5/2500 7.5/2500 8.2/2500 9.5/2500 12/2500 14/2500 11.5/2500 Bore x Stroke(mm) 65×37...
