Nelso DG-PUMP WPC110 Manual

DG-PUMP
WiFi Mobile Operated Smart
Automatic Pump Controller
Model: WPC110
General Description:
DG-Pump, Digital Smart WiFi enabled fully Automatic Water
Pump Controller for your home and Industry. You can On/Off
the pump from any part of the world with the help of Android
App. from your mobile. In Auto Mode, it continuously monitors
the liquid level of the overhead tank & reservoir and On/Off
the pump automatically. This auto-switching feature
Manpower, Electricity, Water and Money.
set 5 schedules with days of the week at which the pump will
automatically be On and Off.
Features:
This is WiFi/IoT enabled device. You can On/Off the pump
from your mobile.
Set five schedules with days of the week at which the pump
will automatically be On and Off.
Get Notifications of all events and day-wise pump runtime
reports within the App.
Password protection to secure the device from unauthorized
use.
The device can be used in Auto Mode, Manual Mode and a
combination of both.
In Auto Mode, it will turn On/Off the pump depending on the
level of water in the overhead tank & reservoir.
Technical Specification:
Supply Voltage: 230 V AC, 50 Hz.
Internal Voltage: 12V DC
Output: 3 potential-free relay contact
Contact Rating: 16 Amp. for START-1 and START-2
relay and 7 Amp. STOP relay
Power Consumption: 1.2 Watt
Monthly Consumption: Less than 1 Unit
Temperature: -20 to + 70 degree Celsius
Dimension: 135mm * 112mm * 40mm.
Getting Started:
Connect the device with your Pump Control Panel, 230V AC
and place the sensors as described later.
Press the Reset Switch for 10 seconds until the WIFI LED
blinks 4 times to restore factory settings.
Turn off mobile data in your phone, Open Wi-Fi Settings and
connect to SSID "Nelso-IoT".
You will be prompted to "Sign in to a Wi-Fi network". Click on
it. Now select the SSID from the list, enter the password and
save. Now turn on mobile data or switch the Wi-Fi connection
of your phone to your home SSID.
Download the App from Google Play Store and open it. Click
"Add new device". Now enter serial no. manually or scan the
QR Code from the label on the device.
Enter a name so you can recognize the device and click the
Register button.
Applications:
Domestic
Saves
Bungalows
Users can also
Multi-storied apartments
Hospitals
Factories
Hotels and restaurants
Commercial centers
All places with a water tank

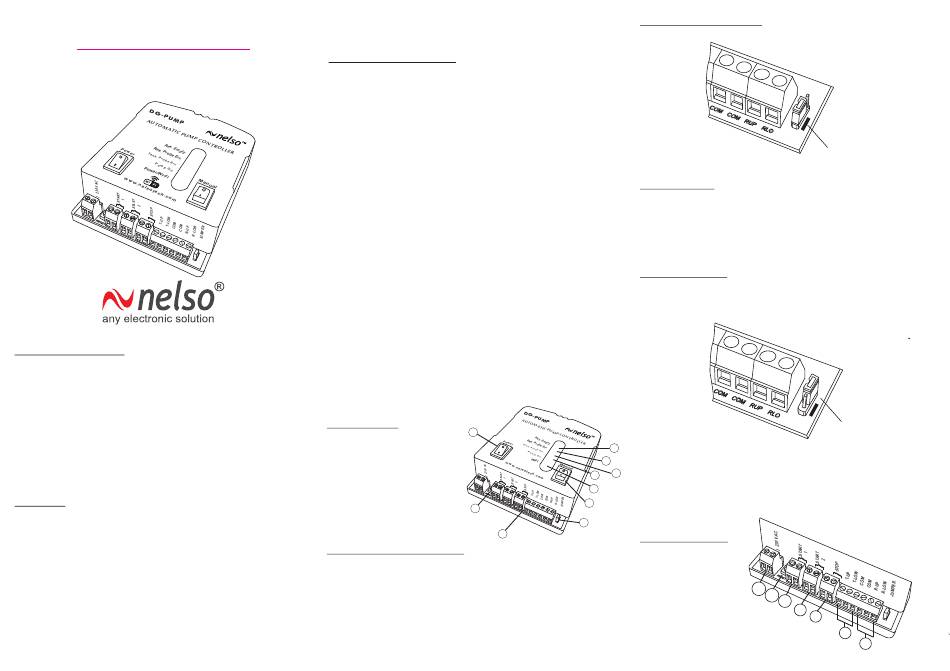

Points are shown in FIG-1:
1) Reservoir empty Indication LED
2) Reservoir Probe Error Indication LED
3) Tank Probe Error Indication LED
4) Pump Running Indication LED
5) Power/Wi-Fi LED 6) Power On/Off Switch
7) Manual On/Off Switch 8) Jumper
9) Connector Strip 10) Reset Switch
Jumper Configuration:
This device may run in two different modes:
Normal Mode:
FIG-2, the device will run in normal mode. In this mode
"START-1" and "START-2" relays become close until the
pump is on i.e. "START-1" or
switch in series with the phase line. The "STOP" relay
remains inactive in this mode.
Extended Mode:
as shown in FIG-3. "START-1" and "START-2"
become close for two seconds to start the pump and after that
it becomes open.
+
6
1
To stop the pump "STOP" relay becomes open for two
2
3 seconds and again it becomes closed. Extended mode is
4
used where two separate switches(Green and Red) are there
5
to On/Off the pump in the panel box.
7
10
8
9
Connector Strip:
FIG-1
FIG-2
Normal Mode
If the jumper is placed at the position shown in
"START-2" relay acts as a
In this mode, the jumper should be placed
Extended Mode
FIG-3
1 2
3
4
5
6
FIG-4
7
+
relays
