Nelso DG-PUMP WPC110 Installation Manual

DG-PUMP
WiFi Mobile Operated Smart
Automatic Pump Controller
Model: WPC110
www.nelsotech.com
Call:
+
WPC110 Installation Manual
General Description:
DG-Pump, Digital Smart WiFi enabled fully Automatic
Water Pump Controller for your home and Industry. You
can On/Off the pump from any part of the world with the
help of Android App. from your mobile. In Auto Mode, it
continuously monitors the liquid level of the overhead
tank & reservoir and On/Off the pump automatically.
This auto-switching feature Saves Manpower,
Electricity, Water and Money. Users can also set 5
schedules with days of the week at which the pump will
automatically be On and Off.
Features:
This is WiFi/IoT enabled device. You can On/Off the
pump from your mobile.
Set five schedules with days of the week at which the
pump will automatically be On and Off.
Get Notifications of all events and day-wise pump
runtime reports within the App.
Password protection to secure the device from
unauthorized use.
The device can be used in Auto Mode, Manual Mode
and a combination of both.
In Auto Mode, it will turn On/Off the pump depending
on the level of water in the overhead tank & reservoir.
+
WPC110
Technical Specification:
Supply Voltage: 230 V AC, 50 Hz.
Internal Voltage: 12V DC
Output: 3 potential-free relay contact
Contact Rating: 23 Amp. for START-1 and START-2
relay and 7 Amp. STOP relay
Power Consumption: 1.2 Watt
Monthly Consumption: Less than 1 Unit
Temperature: -20 to + 70 degree Celsius
Dimension: 135mm * 112mm * 40mm.
Getting Started:
Connect the device with your Pump Control Panel,
230V AC and place the sensors as described later.
Press the Reset Switch for 10 seconds until the WIFI
LED blinks 4 times to restore factory settings.
Turn off mobile data
Settings and connect to SSID "Nelso-IoT".
You will be prompted to "Sign in to a Wi-Fi network".
Click on it. Now select the SSID from the list, enter the
password and save. Now turn on mobile data or switch
the Wi-Fi connection of your phone to your home SSID.
Download the App from Google Play Store and open it.
Click "Add new device". Now enter serial no. manually
or scan the QR Code from the label on the device.
Enter a name so you can recognize the device and click
the Register button.
+91 9088-999-888
2 WPC110
Applications:
Domestic
Bungalows
Multi-storied apartments
Hospitals
Factories
Hotels and restaurants
Commercial centers
All places with a water tank
6
10
+
Installation Manual
in your phone, Open Wi-Fi
Installation Manual
1
2
3
4
5
7
8
9

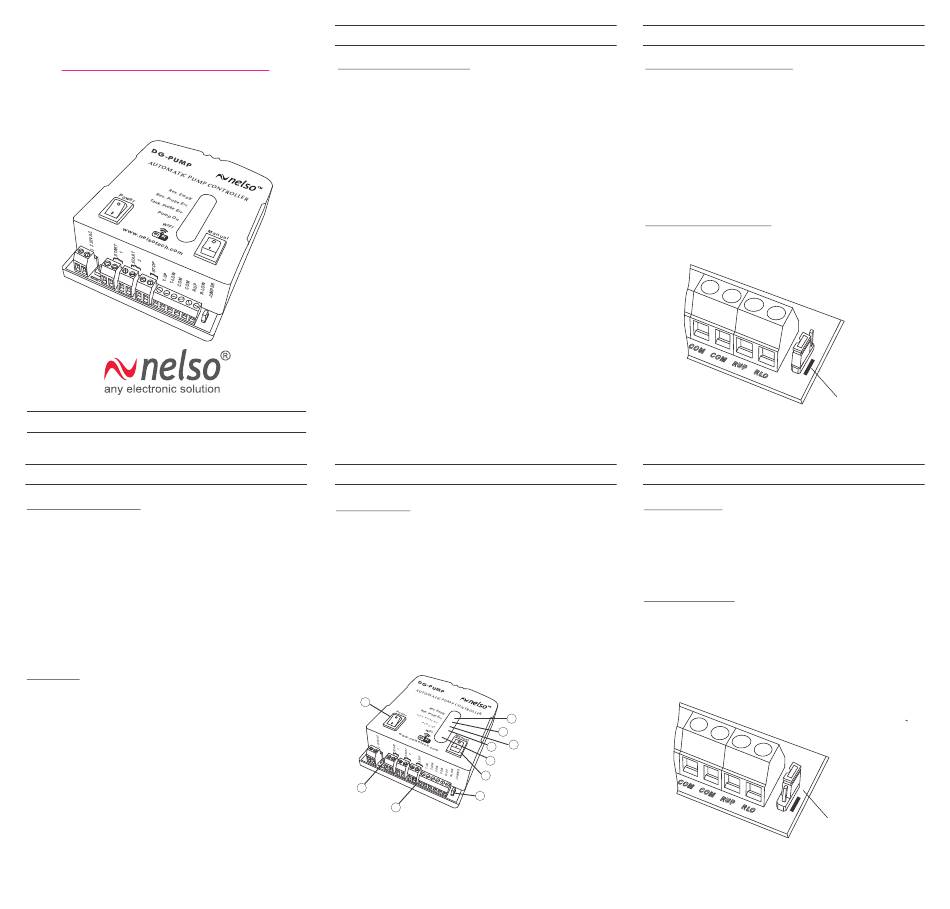

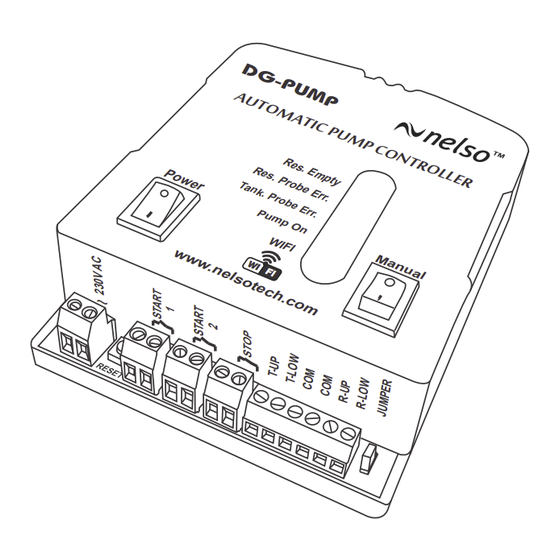

FIG-1
+
3 WPC110
Installation Manual
Points are shown in FIG-1:
1) Reservoir empty Indication LED
2) Reservoir Probe Error Indication LED
3) Tank Probe Error Indication LED
4) Pump Running Indication LED
5) WIFI LED
6) Power On/Off Switch
7) Manual On/Off Switch
8) Jumper
9) Connector Strip
10) Reset Switch
Jumper Configuration:
This device may run in two different modes:
FIG-2
4 WPC110 Installation Manual
Normal Mode: If the jumper is placed at the position
shown in FIG-2, the device will run in normal mode. In
this mode "START-1" and "START-2"
close until the pump is on i.e. "
relay acts as a switch in series with the phase line. The
"STOP" relay remains inactive in this mode.
Extended Mode: In this mode, the jumper should be
placed as shown in FIG-3. "START-1" and "START-2"
relays become close for two seconds to start the pump
and after that it becomes open.
FIG-3
+
5
Normal Mode
+
6
relays become
START-1 " or "START-2"
Extended Mode
