Kohler AVID 97358T-B4 Installation Instructions

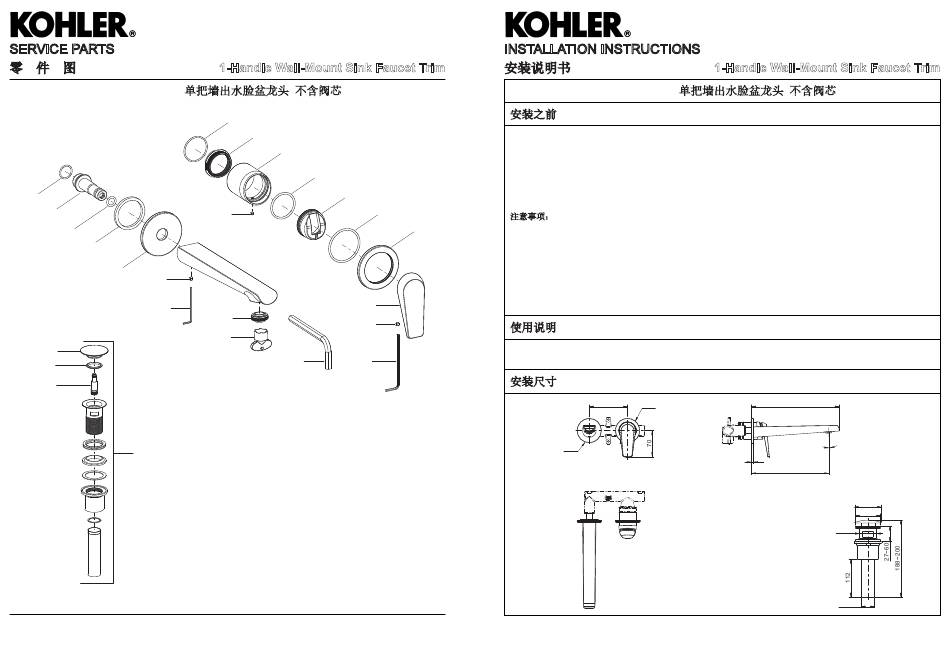

SERVICE PARTS
零 件 图
97358T-B4
单把墙出水脸盆龙头 不含阀芯
34353
1491452
34263
870205
1481195**
832751
1046290
1102890**
1102891
1102892
1142103**
**订购时请说明颜色编号
**Color code must be specified when ordering
1495811-T2-A
1-Handle Wall-Mount Sink Faucet Trim
1041450
1481193
1481192**
1347523
1344637**
97222
1492085
1233921**
1231664
1249005
3006148
833730
1490520
艾非
AVID
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
1481194**
2. 检查供水管有无损坏和漏水。如需要，进行替换和
维修。
3. 遵守当地管路安装条例。
4. 本产品需与单把墙出水脸盆龙头阀芯28028T-NA
搭配使用。
5. 确保安装此产品之前，单把墙出水脸盆龙头阀芯
28028T-NA已安装完毕。
使用说明
将把手轻轻提起，顺时针旋转为热水，逆时针旋转
为冷水。
安装尺寸
Ø65
4
1495811-T2-A
1-Handle Wall-Mount Sink Faucet Trim
97358T-B4
单把墙出水脸盆龙头 不含阀芯
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. This product should match with the wall mount
lavatory faucet valve 28028T-NA.
5. Install the wall mount lavatory faucet valve
28028T-NA before installing this product.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water,
turn counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
102
Ø65
5
艾非
AVID
234
4º
205
Ø64
Ø60
Ø41.2
Ø31.75
1
