Section 5 - Home

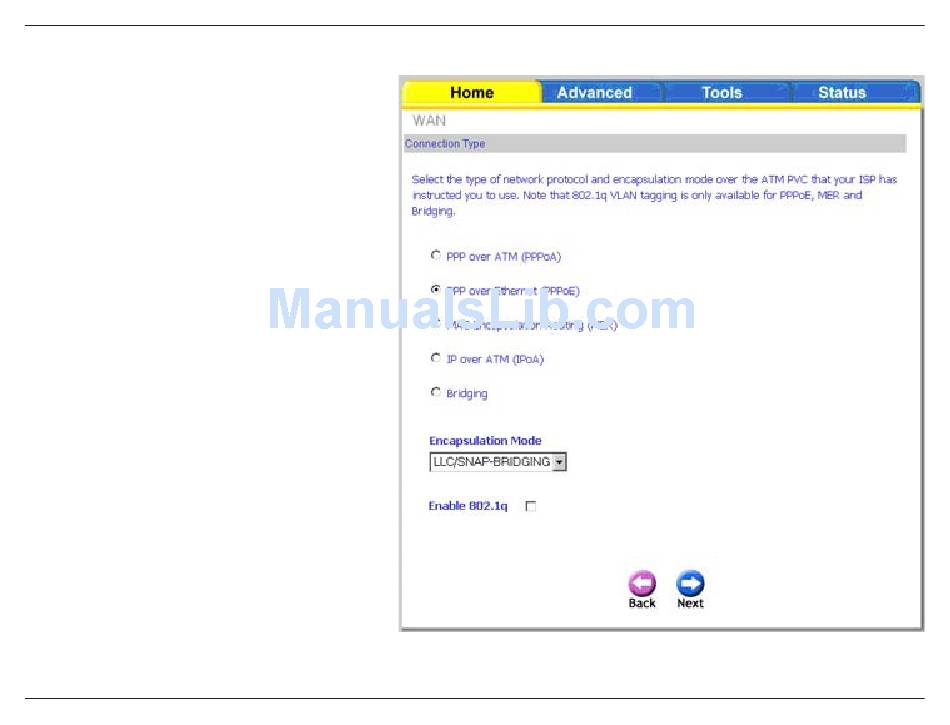

This screen shows the types of network

protocols and encapsulation modes that can

be configured:

• PPP over ATM (PPPoA)

• PPP over Ethernet (PPPoE)

• MAC Encapsulation Routing (MER)

• IP over ATM (IpoA)

• Bridging

Select the type of network protocol and

encapsulation over the ATM PVC that your ISP

has instructed to use.

If you will be using VLAN tagging, click on the

Enable 80.1q checkbox and then enter the

VLAN ID number. When finished with your

selections, click Next to continue.

Note: These settings are ISP dependant. For

information regarding proper configuration,

contact your ISP.

D-Link DSL-640B ADSL+ 4-Port Router User Manual
