TN015:
Obtaining the lowest latency from your
Harrier AF-Zoom IP camera
Summary
This Technical Note introduces IP cameras and the latency
associated with IP video transmission; it also explains how to
achieve the lowest latency from a Harrier AF-Zoom IP camera or
Harrier IP Camera Interface Board, and what rates can be
expected. With some Harrier cameras, latency can be as low as
140ms, however many factors will affect this, including the
network configuration and type of PC used.
Background
An IP (Internet Protocol) camera is a digital camera that transmits and receives data over a network or the
internet. An IP camera uses its own IP address to connect to a network and doesn't rely on a connection
to a PC or alternative host device. IP cameras capture images, compress them (usually using H.264 or
H.265 encoders) and then transmit them over an Ethernet network, commonly in the form of streaming
real-time video. They may be used with a wired network (connected via an Ethernet cable to a
switch/router/PC), or wirelessly (via a WiFi router/access point).
Controlling Harrier AF-Zoom IP cameras is straightforward. As they are ONVIF Profile S compatible, user
developed applications, or any Profile S-based third-party software, can easily control the camera. Harrier
AF-Zoom IP cameras also offer a wide range of other advanced camera features (e.g. day/night
functionality, optical zoom, WDR, etc.) that can all be controlled remotely. In addition, the IP video stream
is available in three different profiles, each with different video compression settings.
Understanding latency
For the purpose of this Technical Note, latency is defined as the delay from when an image is captured by
the camera lens to when it is observable on a video display (glass to glass). Variability in latency is
referred to as jitter, so a system with high variation in latency will have high jitter.
Image capture and video data transmission will always be subject to latency because of the unavoidable
acquisition, transport and processing delays between various system components. Latency in vision
systems is typically recorded in milliseconds (ms).
The level of acceptable latency within a vision system depends on the application. For example, an ANPR
parking system can tolerate high latency as there is no short critical time requirement in the application.
However, a moving remote-operated robot or vehicle requires the lowest latency possible so that the
Version 2.04 July 2024
TECHNICAL NOTE 015

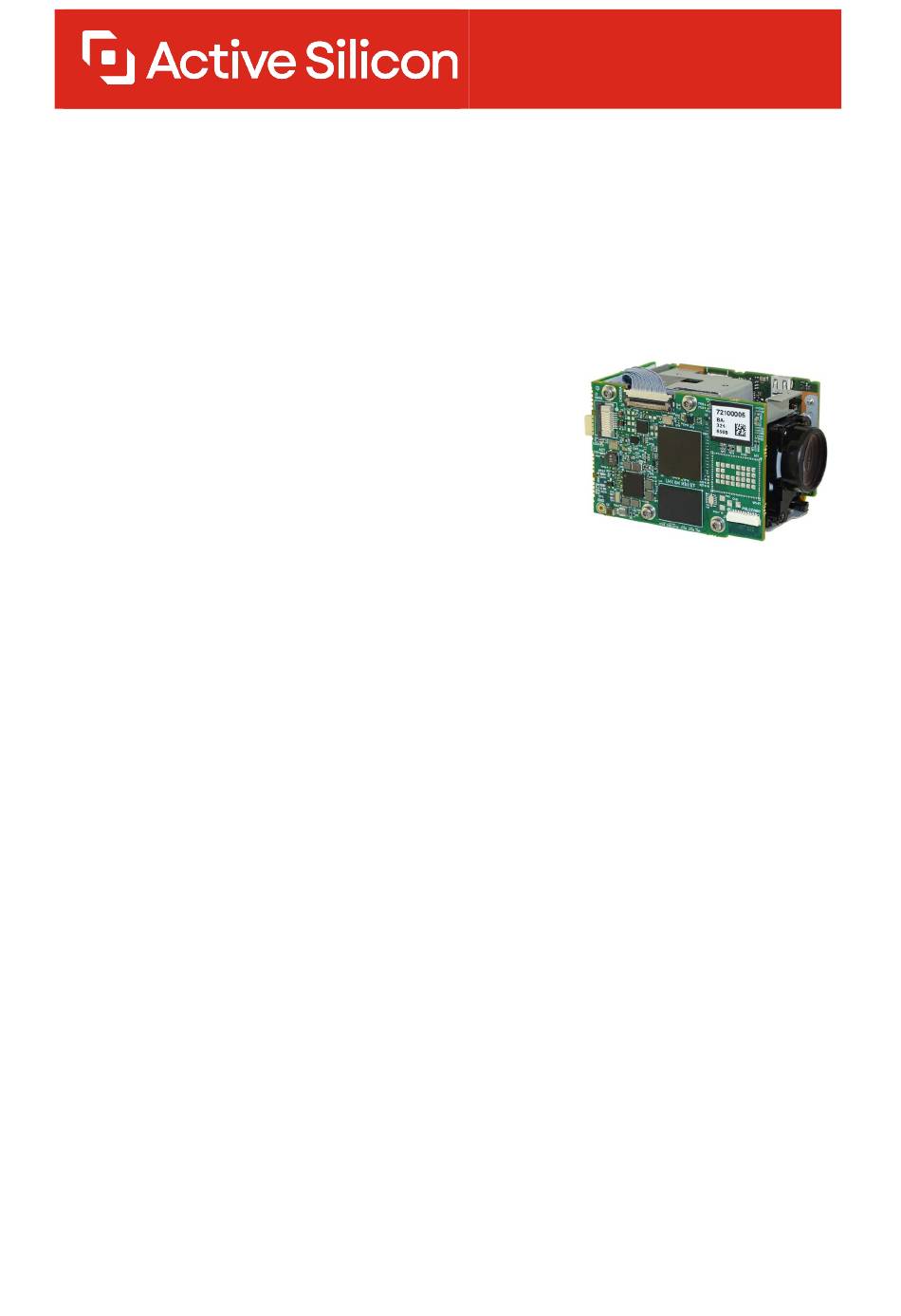

Figure 1. Harrier 10x AF-Zoom IP/HDMI
Camera (Tamron MP3010M-EV)
Page 1 of 9
